R A C k I N S t A L L A t I o N

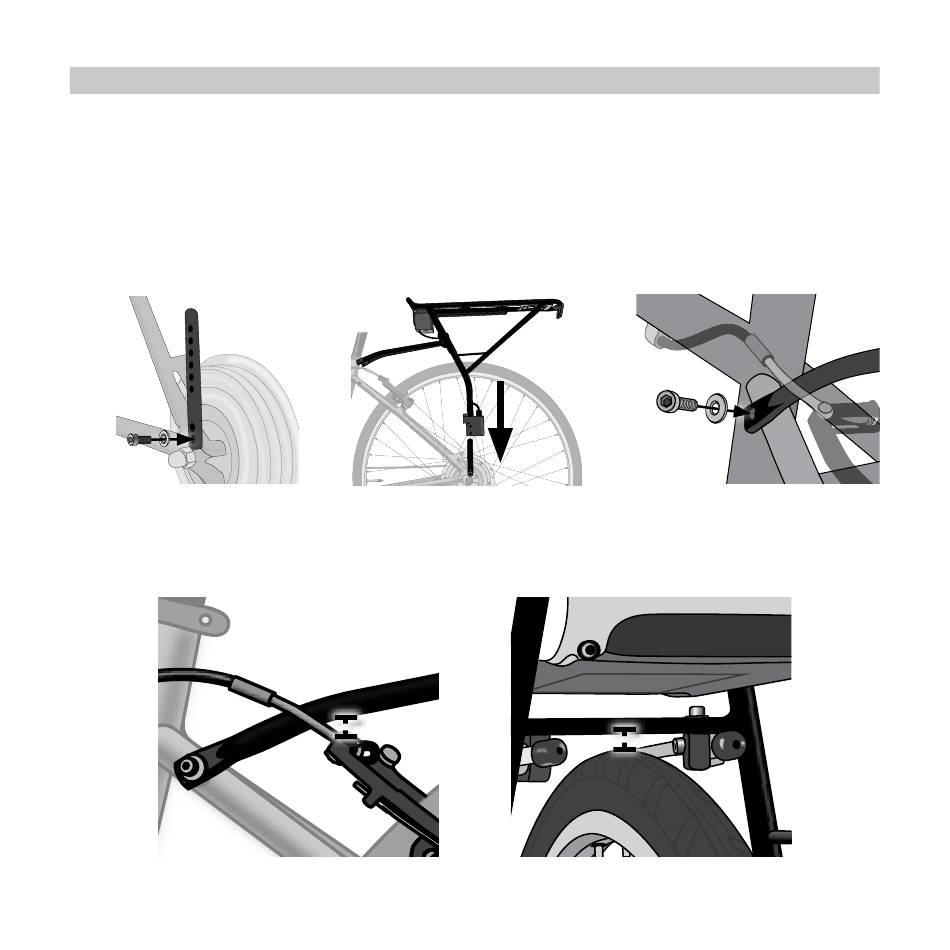

1. Position the rack extensions vertically against the lower rack mounts on the frame. install the bolt
and washer, included with your frame, through each rack extension and into the frame. Tighten to the
frame manufacturer's specification.
2. Slide the rack onto the rack extensions.
3. install the bolt and washer, included with your frame, through each rack attachment rod and into the
upper rack mounts on the frame. Tighten to the frame manufacturer's specification.
4. Adjust the rack height for clearance over the brake and tire.
Rack InstallatIon
9
