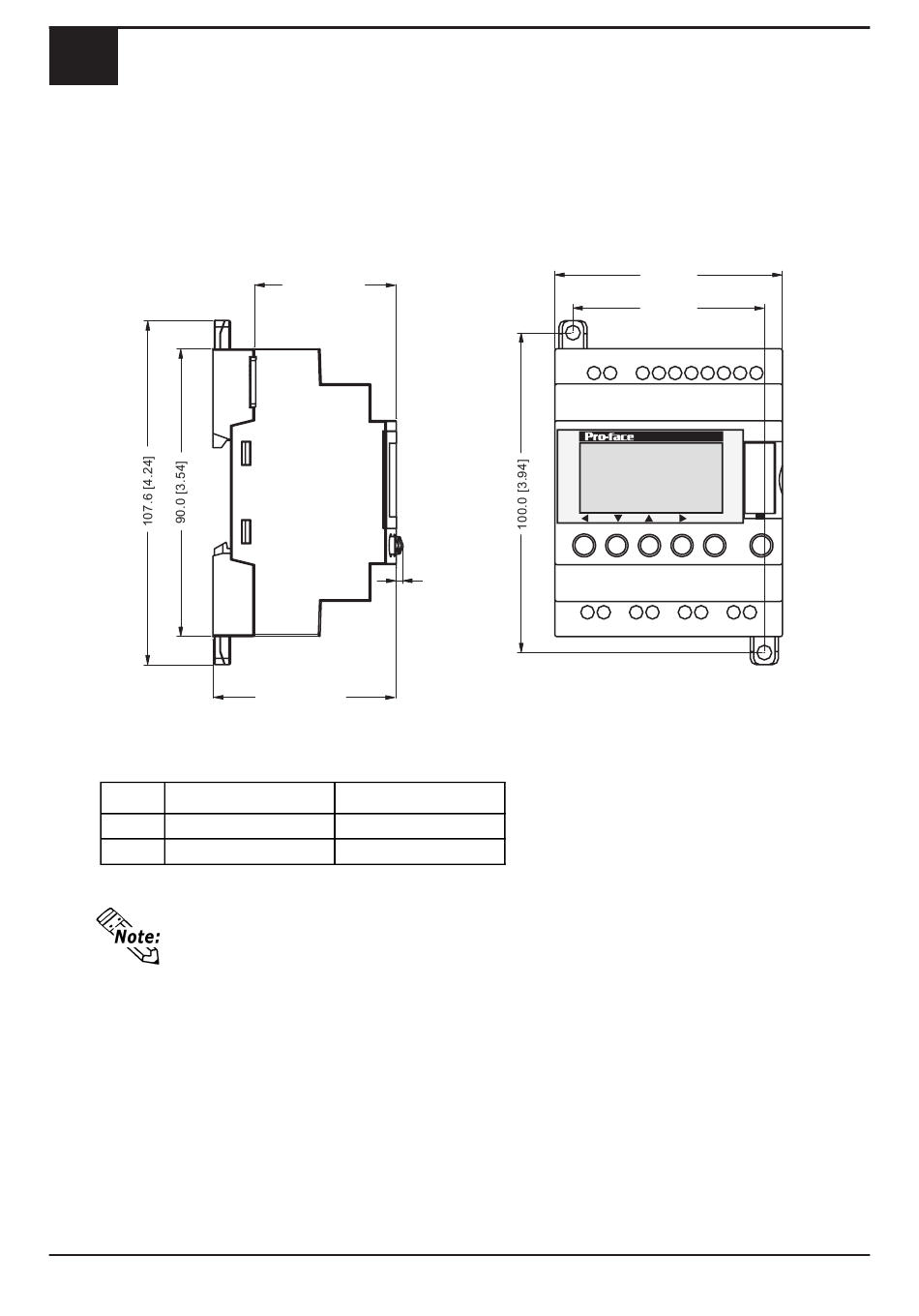

Dimensions
Unit: mm (in.)
The following dimensions are for the LCD display-equipped module. The di-
mensions of the module without an LCD screen are identical. .
External dimensions for "a" and "b" vary depending on the model, as shown below:
DR*-*1****
a
71.2mm [2.80 in.]
b
59.9mm [2.36 in.]
When attaching the PRO-iO2 module to a panel, extend the module's attach-
ment tabs. When attaching the PRO-iO2 module to a DIN rail, retract the
module's attachment tabs.
*1 DR2-D***** modules are not equipped with these operation buttons.
44.40 [1.75]
2.10 [0.08]
57.40 [2.26]
DR*-*2****
124.6mm [4.91 in.]
113.3mm [4.46 in.]
*1
-8-
a
b
Menu/Ok
