Installation

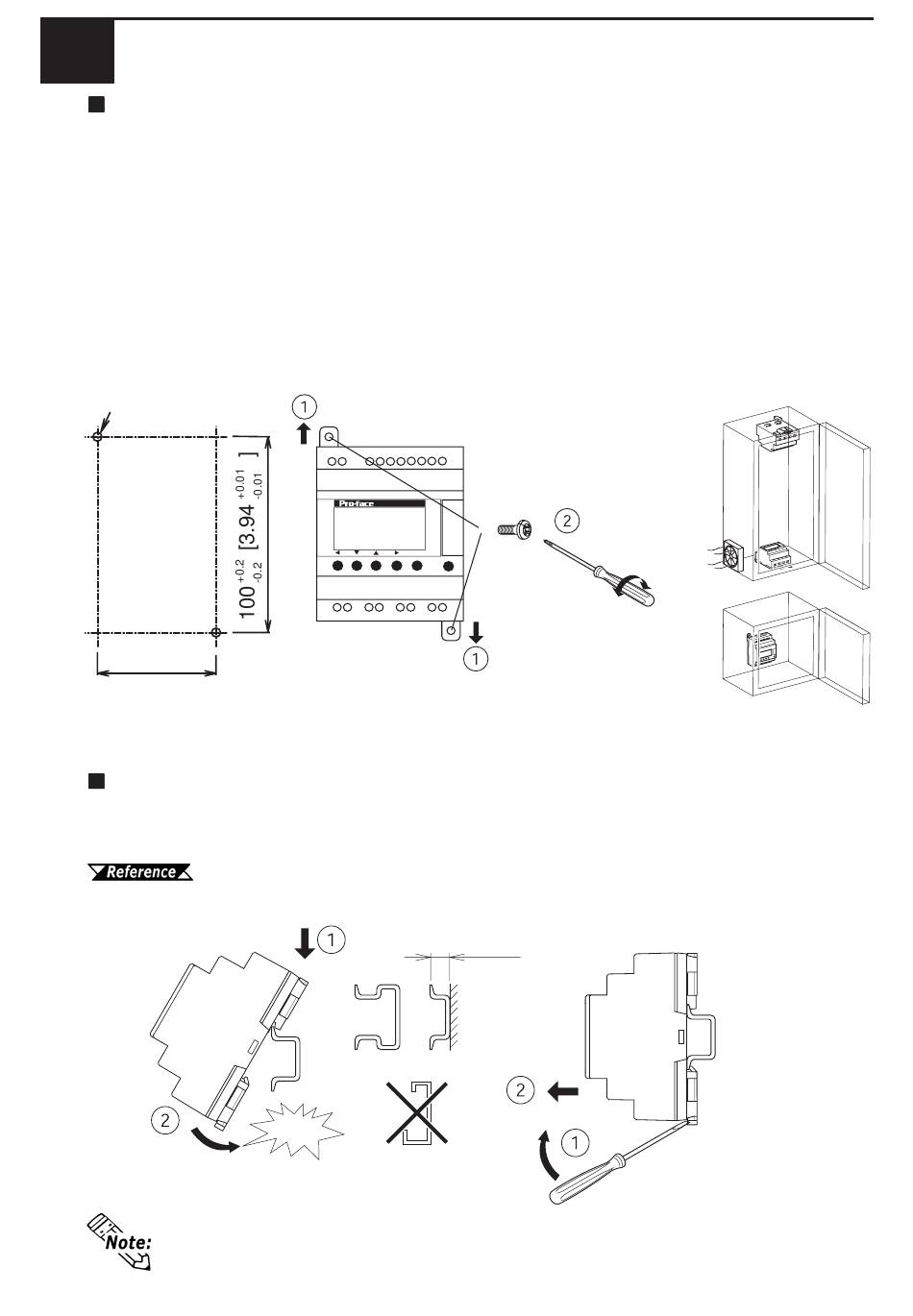

Direct Panel Installation
Create two attachment screw holes using the dimensions shown below, and
position the module so that its module attachment tabs (Top and bottom) align
with the attachment screw holes. Secure the module in place using M4 attach-
ment screws, using a torque of 1 N•m. When installing the module with an ori-
entation other than vertical (i.e. horizontal, etc.) be sure to also install a fan, as
shown in the right-side figure.
The value in () indicates measurements used for DR*-*2**** PRO-iO2 modules.
Unit: mm [in.]
2-M4
+0.01
+0.2
[2.36 ]
59.9
-0.01
-0.2
DIN Rail Installation
Confirm that the DIN rail fastener hook is clipped in place and the module is held securely.
For module installation positioning,
PRO-iO2 User Manual
Installation
When attaching the PRO-iO2 module to a panel, extend the module's attach-
ment tabs. When attaching the PRO-iO2 module to a DIN rail, retract the
module's attachment tabs.
IB
I1 I2 I3 I4
Menu/Ok
+0.2 +0.01
(113.3
[4.46
-0.2 -0.01
snap
IC ID IE
2-M4
)
]
7.5 [0.30] or more
-12-
Removal
55 °C
55 °C
