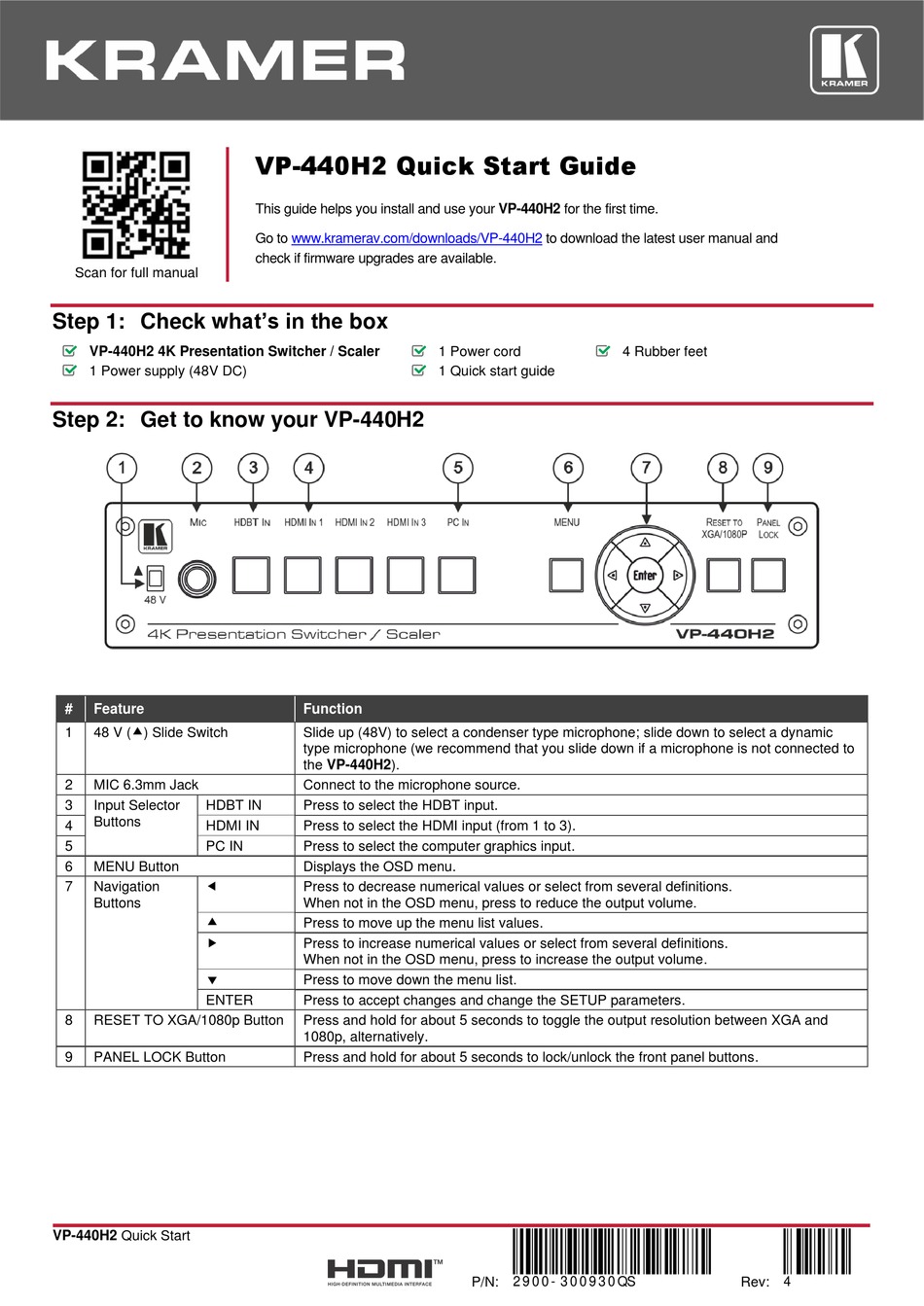

Kramer VP-440H2 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

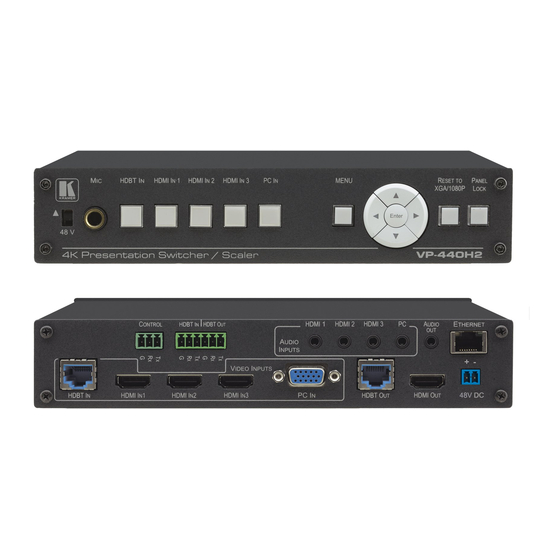

VP-440H2 4K Presentation Switcher / Scaler
1 Power supply (48V DC)
Step 2: Get to know your VP-440H2
# Feature
1 48 V () Slide Switch
2 MIC 6.3mm Jack
Input Selector
3 HDBT IN
Buttons
4 HDMI IN
5 PC IN
6 MENU Button

7 Navigation
Buttons



ENTER
8 RESET TO XGA/1080p Button
9 PANEL LOCK Button
VP-440H2 Quick Start
VP-440H2 Quick Start Guide
This guide helps you install and use your VP-440H2 for the first time.
Go to www.kramerav.com/downloads/VP-440H2
check if firmware upgrades are available.
Function
Slide up (48V) to select a condenser type microphone; slide down to select a dynamic
type microphone (we recommend that you slide down if a microphone is not connected to
the VP-440H2).
Connect to the microphone source.
Press to select the HDBT input.
Press to select the HDMI input (from 1 to 3).
Press to select the computer graphics input.
Displays the OSD menu.
Press to decrease numerical values or select from several definitions.
When not in the OSD menu, press to reduce the output volume.
Press to move up the menu list values.
Press to increase numerical values or select from several definitions.
When not in the OSD menu, press to increase the output volume.
Press to move down the menu list.
Press to accept changes and change the SETUP parameters.
Press and hold for about 5 seconds to toggle the output resolution between XGA and
1080p, alternatively.
Press and hold for about 5 seconds to lock/unlock the front panel buttons.
to download the latest user manual and
1 Power cord
1 Quick start guide
P/N: 2 9 0 0 - 3 0 0 9 3 0 QS
4 Rubber feet
Rev: 4
