Kramer VP-440H2 Quick Start Manual

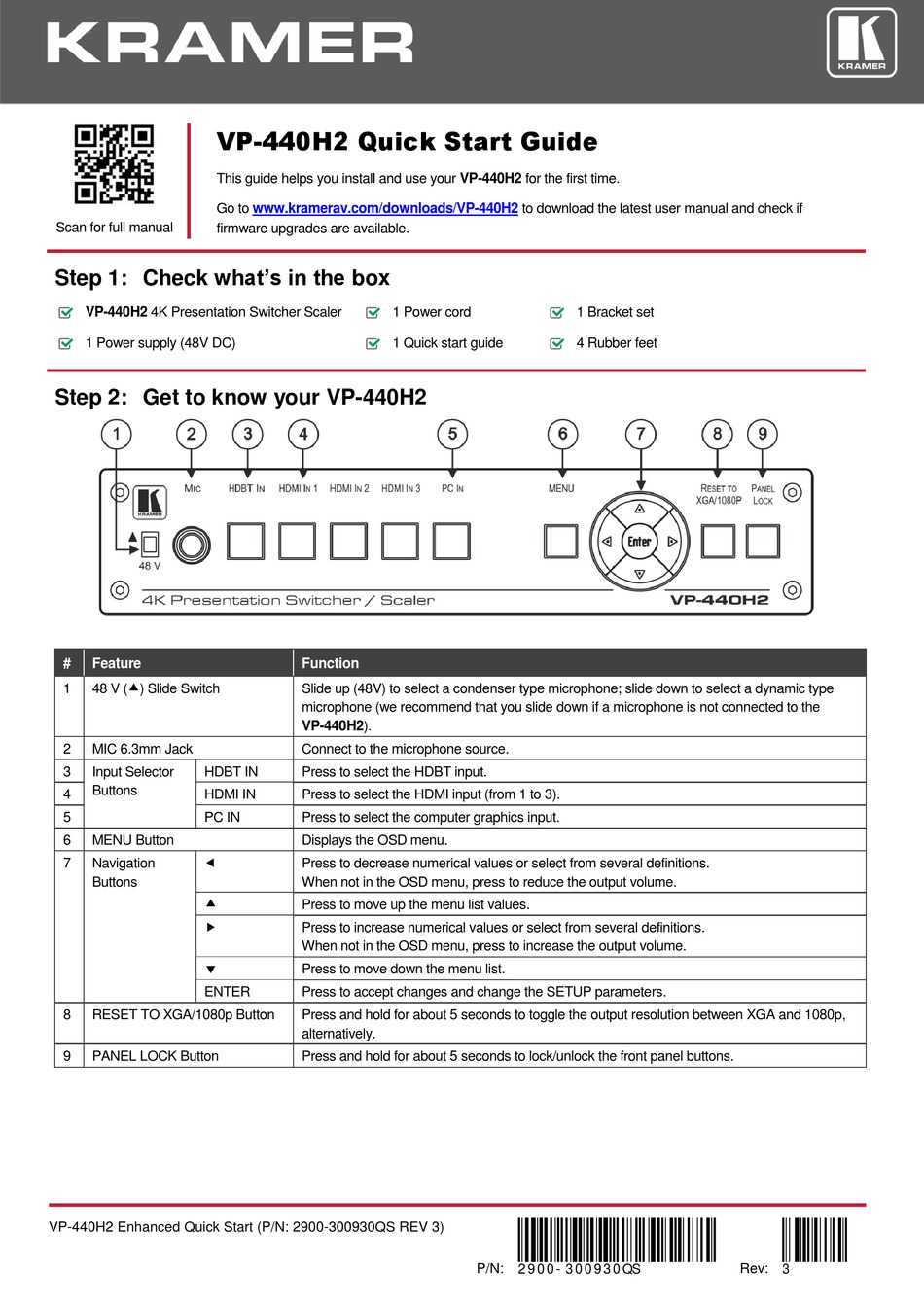

VP-440H2 Quick Start Guide
This guide helps you install and use your VP-440H2 for the first time.
Go to
Scan for full manual
firmware upgrades are available.
Step 1: Check what's in the box

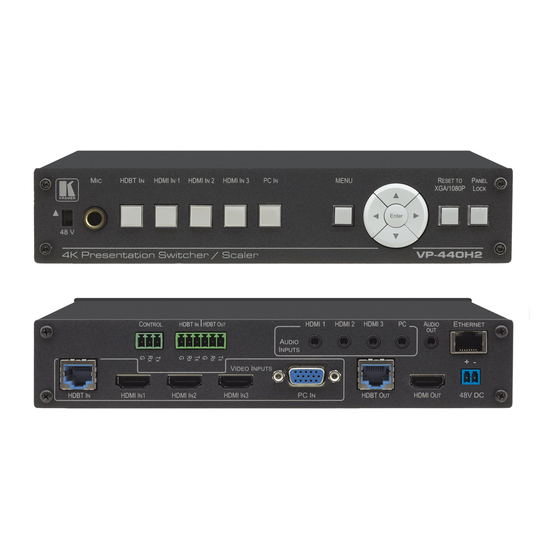

VP-440H2 4K Presentation Switcher Scaler
1 Power supply (48V DC)
Step 2: Get to know your VP-440H2
# Feature
1 48 V () Slide Switch
2 MIC 6.3mm Jack
3 Input Selector HDBT IN
Buttons
4 HDMI IN
5 PC IN
6 MENU Button

7 Navigation
Buttons



ENTER
8 RESET TO XGA/1080p Button
9 PANEL LOCK Button
VP-440H2 Enhanced Quick Start (P/N: 2900-300930QS REV 3)
www.kramerav.com/downloads/VP-440H2
1 Power cord
1 Quick start guide
Function
Slide up (48V) to select a condenser type microphone; slide down to select a dynamic type
microphone (we recommend that you slide down if a microphone is not connected to the
VP-440H2).
Connect to the microphone source.
Press to select the HDBT input.
Press to select the HDMI input (from 1 to 3).
Press to select the computer graphics input.
Displays the OSD menu.
Press to decrease numerical values or select from several definitions.
When not in the OSD menu, press to reduce the output volume.
Press to move up the menu list values.
Press to increase numerical values or select from several definitions.
When not in the OSD menu, press to increase the output volume.
Press to move down the menu list.
Press to accept changes and change the SETUP parameters.
Press and hold for about 5 seconds to toggle the output resolution between XGA and 1080p,
alternatively.
Press and hold for about 5 seconds to lock/unlock the front panel buttons.
to download the latest user manual and check if
1 Bracket set
4 Rubber feet
P/N: 2 9 0 0 - 3 0 0 9 3 0 QS Rev: 3
