Kramer VP-440 Quick Start Manual

KRAMER

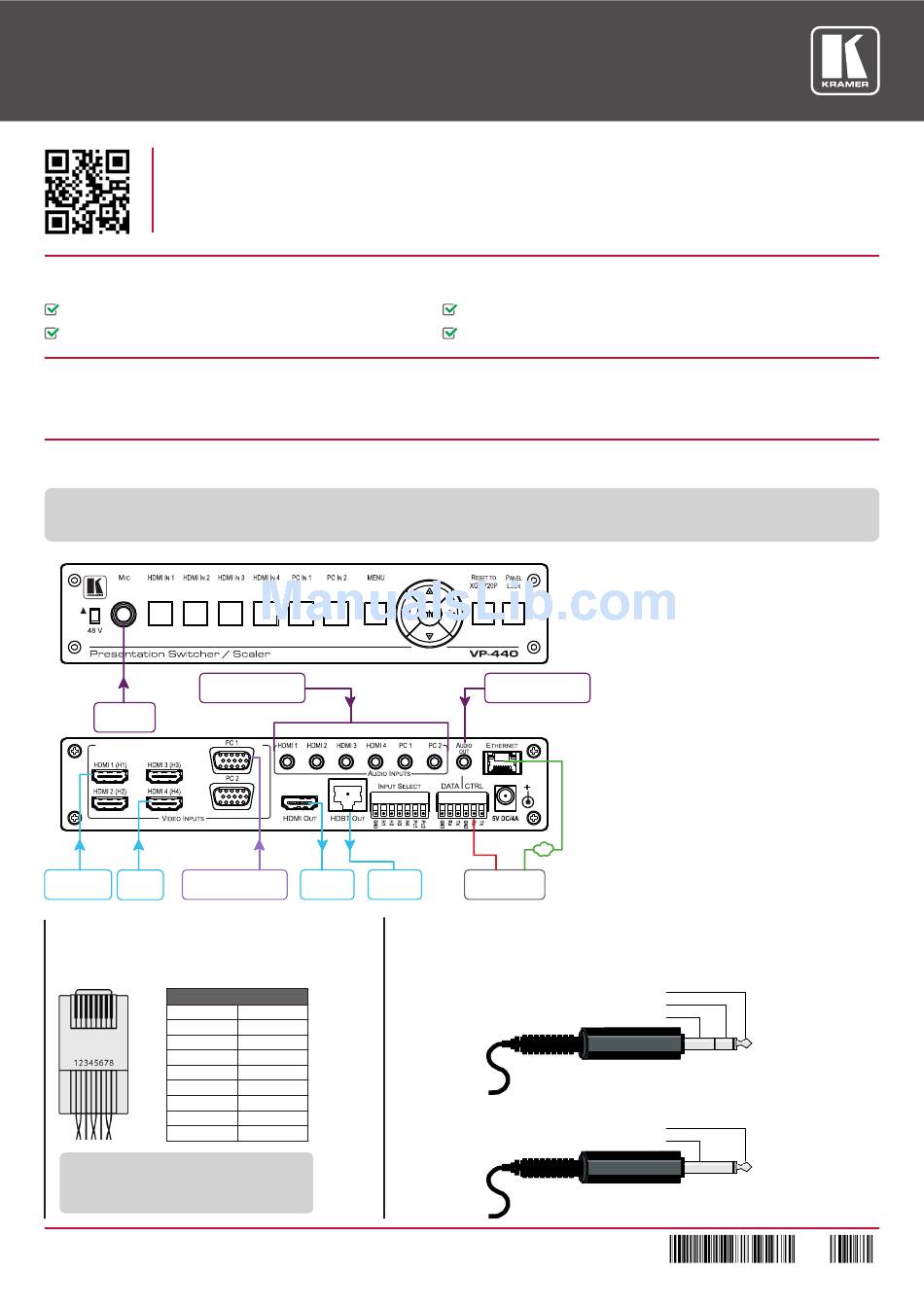

VP-440 Quick Start Guide
This guide helps you install and use your product for the first time. For more detailed information, g
http://www.kramerav.com/manual/VP-440 to download the latest manual or scan the QR code on the left.
Step 1: Check what's in the box
The VP-440 Presentation Switcher/Scaler
1 Power cord

Step 2: Install the VP-440

Mount the machine in a rack or place on a table.

Step 3: Connect inputs and outputs

Always switch OFF the power on each device before connecting it to your
For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to the VP-440.
Microphone
BluRay Disk
Computer Graphics
Laptop
Player Source (PC)
RJ-45 Pinout
For the Ethernet and HDBaseT connectors,
see the proper wiring diagram below:
EIA / TIA 568B
PIN
1
2
3
4
5
6
7
8
or optimum range and performance use Kramer's
F
BC-HDKat6a cable. This specially built cable
significantly outperforms regular CAT 5/CAT 6
cables.
VP-440 Quick Start (P/N: 2900-300476QS REV 2)
Analog Audio
Inputs
LCD
Projector
Display
Wire Color
Orange / White
Orange
Green / White
Blue
Blue / White
Green
Brown / White
Brown
4 Rubber feet
1 Quick start guide
VP-440 .
Analog Audio
Output
PC
Control Device
The Microphone Pinout:
For a condenser
microphone:
For a dynamic
microphone:
o to
Microphone +
Microphone -
Ground
Microphone
Ground
P/N:
2 9 0 0 - 3 0 0 4 7 6 QS Rev: 2
