Installation Instructions / Warranty
Accessories C
06090xx0
Accessories C
06094xx0
Accessories E
06589xx0
Accessories E
06600xx0
Accessories C
06091xx0
Accessories C
06095xx0
Accessories E
06592xx0
Accessories E
06594xx0
06595xx0
Accessories C
06092xx0
Accessories C
06096xx0
06099xx0
Accessories E
06593xx0
Accessories E
06598xx0
06866xx0
Accessories C
06093xx0
Accessories C
06097xx0
06098xx0
Accessories E
06596xx0
Accessories S
04063xx0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hans Grohe Accessories C 06090 0 Series
Summary of Contents for Hans Grohe Accessories C 06090 0 Series
- Page 1 Installation Instructions / Warranty Accessories C Accessories C Accessories C Accessories C 06090xx0 06091xx0 06092xx0 06093xx0 Accessories C Accessories C Accessories C Accessories C 06096xx0 06097xx0 06094xx0 06095xx0 06099xx0 06098xx0 Accessories E Accessories E Accessories E Accessories E 06589xx0 06592xx0 06593xx0 06596xx0 Accessories E...

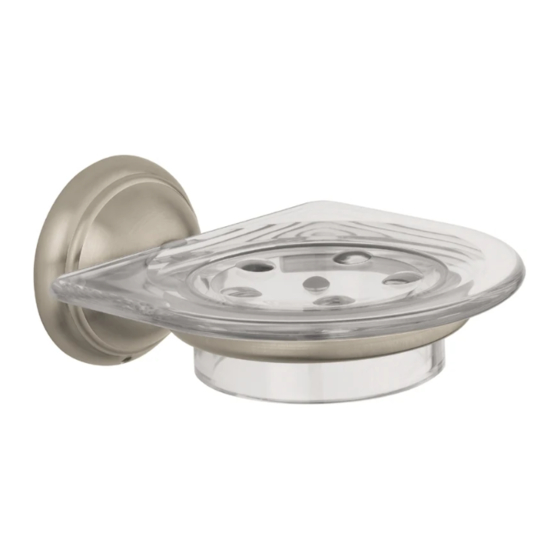

- Page 2 Accessories C, Accessories S 2½" 2" 3" 4½" 5⅛" ½" 2⅞" 06092xx0 06091xx0 06090xx0 06095xx0 Soap Dispenser Soap Dish Tumbler Towel Ring 1⁹⁄₁₆" 2⅞" 2⁹⁄₁₆" 5⅛" 06096xx0 06093xx0 06094xx0 Face Cloth Hook Toilet Paper Holder Toilet Brush 06099xx0 Robe Hook 13⅝"...
- Page 3 Installation 06092xx0, 06091xx0, 06090xx0, 06093xx0, 06094xx0, 06095xx0, 06097xx0 / 06098xx0, 04063xx0 Using the mounting piece as a template, mark the posi- tions of the screw holes. Do not press the mounting piece into the accessory until the mounting piece is screwed firmly to the wall! Drill the holes with a 6mm bit.
- Page 4 06097 Towel bar only: Press the end pieces over the mounting pieces (1). Use the enclosed allen wrench to tighten the set screws (2) Other accessories and towel bars: Press the acces- sory firmly over the mounting piece. The retaining pin in the accessory will snap into place, holding the accessory firmly on the mounting piece.
- Page 5 Installation 06096xx0, 06099xx0 Drill the hole using a 6 mm bit suitable for the wall surface. Install the anchor. If the accessory is installed in the shower, seal the wall around the an- chors with waterproof sealant. Failure to seal the wall can lead to possible water damage.
- Page 6 Accessories E Soap Dispenser Soap Dish Tumbler Toilet Paper Holder 06593xx0 06592xx0 06589xx0 06596xx0 24” Towel Bar Robe Hook 06866xx0 06595xx0 Toilet Brush 06600xx0 12” Towel Bar Face Cloth Hook 06598xx0 06594xx0 Installation 06593xx0, 06589xx0, 06592xx0, 06600xx0 Mark the positions of the screw holes on the wall. Drill the screw holes using a 6 mm drill bit.
- Page 7 Screw the support into the anchors. The pin on the sup- port should be on the bottom. Slide the cover over the support. The pin on the support clicks into place in the hole in the cover. Place the accessory into the holder. The accessory may be removed from the holder.
- Page 8 Installation 06594xx0, 06595xx0 Mark the positions of the screw holes on the wall. Drill the screw holes with a 6 mm drill bit Install the anchors. If the accessory is installed in the shower, seal the wall around the an- chors with waterproof sealant.
- Page 9 Install the anchors. If the accessory is installed in the shower, seal the wall around the an- chors with waterproof sealant. Failure to seal the wall can lead to possible water damage. Screw the towel bar into the anchors. Slide the escutcheon over the screws. Fill soap dispenser 06593xx0, 06092000 Lift the pump assembly off the bottle.
- Page 10 Replacement Parts - Accessories C Replacement Parts — Accessories E mounting piece 96341000 mounting set 40915000 soap dish 40936000 tumbler 40935000 pump 40918000 bottle 40299000 40086000 brush head 40088000 xx = color brush 40089xx0 00 = chrome holder 40215000 62 = oil rubbed bronze cover 96110xx0 82 = brushed nickel...
-
Page 11: Limited Consumer Warranty
Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it. -
Page 12: Exclusions And Limitations
maintenance, misuse, abuse, negligence, accident or alteration; (2) the use of abrasive or caustic cleaning agents or “no-rinse” cleaning products, or the use of the product in any manner contrary to the product instructions; or (3) conditions in the home such as excessive water pressure or corrosion. C.Labor and other expenses for disconnection, deinstallation, or return of the product for warranty service (including but not limited to proper packaging and shipping costs), or for installation or reinstallation of the product.
