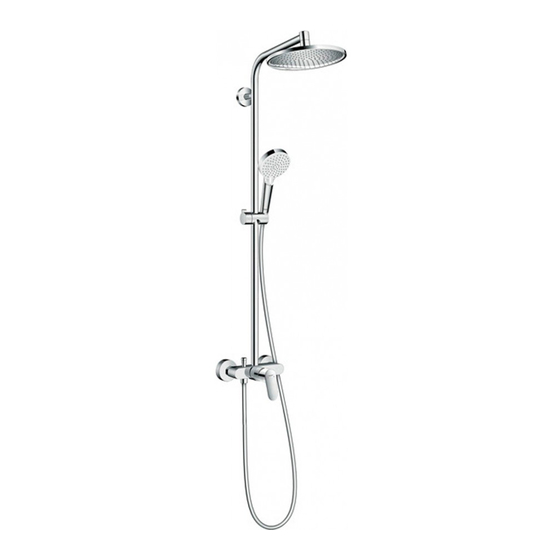

Crometta S 240 1jet Showerpipe
27267XXX / 27937000
Crometta E 240 1jet Showerpipe
27271XXX / 27932000
Advertisement
Related Manuals for Hans Grohe Crometta S 240 1jet Showerpipe 27267 Series
Summary of Contents for Hans Grohe Crometta S 240 1jet Showerpipe 27267 Series
- Page 1 Gebrauchsanleitung / Montageanleitung Mode d'emploi / Instructions de montage Instructions for use / assembly instructions Istruzioni per l'uso / Istruzioni per Installazione Modo de empleo / Instrucciones de montaje Gebruiksaanwijzing / Handleiding Brugsanvisning / Monteringsvejledning Instruções para uso / Manual de Instalación Instrukcja obsługi / Instrukcja montażu Návod k použití...
-
Page 2: Montage
Deutsch Heißwassertemperatur: max. 60°C Sicherheitshinweise Anschlussmaße: 150±12 mm Anschlüsse G 1/2: kalt rechts - warm links Bei der Montage müssen zur Vermeidung von Quetsch- und Schnittverletzungen Handschuhe getragen werden. Thermische Desinfektion: 70°C / 4 min Das Produkt darf nur zu Bade-, Hygiene- und Körperreinigungszwecken •... -
Page 3: Instructions Pour Le Montage
Français Dimension d´arrivée: 150±12 mm Consignes de sécurité Raccordement G 1/2: froide à droite - chaude à gauche Désinfection thermique: 70°C / 4 min Lors du montage, porter des gants de protection pour éviter toute blessure par écrasement ou coupure. •... - Page 4 English Symbol description Safety Notes Do not use silicone containing acetic acid! Gloves should be worn during installation to prevent crushing and cutting injuries. Adjustment (see page 34) The product may only be used for bathing, hygienic and body cleaning After the installation, the output temperature of the thermostat must be checked.
- Page 5 Italiano Temperatura dell'acqua calda: max. 60°C Indicazioni sulla sicurezza Distanza di raccordo: 150±12 mm Raccordi G 1/2: fredda a destra - calda a sinistra Durante il montaggio, per pevitare ferite da schiacciamento e da taglio bisogna indossare guanti protettivi. Disinfezione termica: 70°C / 4 min Il prodotto deve essere utilizzato esclusivamente per fare il bagno e per l'igiene •...
- Page 6 36 mm Silicone X + 36 mm SW 24 mm max. 39 mm max. 5 mm SW 30 mm (17 Nm) SW 4 mm (8 Nm) Armaturenfett Grease...
- Page 7 Ø 6 SW 17 mm (10 Nm) #97708000 SW 3 mm (4 Nm)
- Page 8 SW 3 mm SW 3 mm (2 Nm) SW 3 mm z. B. 42° C for example 42° C SW 3 mm (2 Nm)
- Page 9 SW 10 mm SW 3 mm SW 30 mm rot / rouge / red / rosso / rojo / rood / Rød / vermelho / czerwony / červená / / красный / piros / punainen / röd / raudona / crvena / kırmızı /roşu / κόκκινο / rdeča / punane / sarkana / rød / червено...
- Page 10 www.hansgrohe.com/ www.hansgrohe.com/ www.hansgrohe.com/ www.hansgrohe.com/ cleaning-recommendation cleaning-recommendation cleaning-recommendation cleaning-recommendation Reinigungsempfehlung / Garantie / Kontakt Preporuke za čišćenje / Garancija / Kontakt Recommandation pour le nettoyage / Garanties / Contact Temizleme önerisi / Garanti / Temas Cleaning recommendation / Warranty / Contact Recomandări pentru curăţare / Garanţie / Contact Raccomandazione di pulizia / Garanzia / Contatto Σύσταση...
- Page 11 SW 17 mm SW 17 mm (10 Nm) > 1 min > 1 min...
- Page 12 Crometta S 240 1jet Showerpipe Crometta E 240 1jet Showerpipe 27267XXX / 27937000 27271XXX / 27932000 4 7 0 4 6 8 3 5 2 3 5 5 Ø 2 4 0 2 4 0 Ø 2 2 Ø 2 2 m a x .
- Page 13 öffnen / ouvert / open / aperto / abierto / open / åbne / abrir / otworzyć / otevřít / otvoriť / / открыть / schließen / fermé / close / chiudere / cerrar / nyitás / avaaminen / öppna / atidaryti / Otvaranje / açmak / deschide / ανοικτό / odpreti / avage / atvērt / sluiten / lukke / fechar / zamknąć...
- Page 14 Crometta S 240 1jet Showerpipe 98187000 (50x2) 27267XXX / 27937000 95688000 Crometta E 240 1jet Showerpipe 98447000 27271XXX / 27932000 98165000 (M6x5) (20x2) SW 3 mm 93072XXX 96179000 95692XXX 95239XXX 92137000 92166000 (M6x12) 98131000 94246000 SW 4 mm (15x2,5) XXX = Farbcodierung / Couleurs / Colors / Trattamento / Acabados / Kleuren / Overflade / 26723XXX Acabamentos / Kody kolorów /...
