Cypress CY3677 Quick Start Manual

Hide thumbs Also See for CY3677:

The CY3677 Evaluation Kit enables quick and easy evaluation of Cypress's

Download and install the latest

kit software onto your PC

from

www.cypress.com/CY3677

• Connect the board to your PC using the provided

USB cable. The Power LED (Amber) and Status

LED (Green) turn on

QUICK START GUIDE

CY3677 EVALUATION KIT

High Performance Programmable Oscillator – CY29430

Kit Contents:

1. CY3677 Evaluation Board

2. USB Standard-A to Mini-B cable

3. Quick Start Guide (this document)

as shown in the table overleaf

• Connect J7 and J8 using SMA cables to an

Oscilloscope to evaluate the pre-programmed

114.285 MHz LVDS Clock

Table of Contents

Do you have a question about the CY3677 and is the answer not in the manual?

Page 1 QUICK START GUIDE CY3677 EVALUATION KIT The CY3677 Evaluation Kit enables quick and easy evaluation of Cypress’s High Performance Programmable Oscillator – CY29430 Kit Contents: 1. CY3677 Evaluation Board 2. USB Standard-A to Mini-B cable 3. Quick Start Guide (this document)

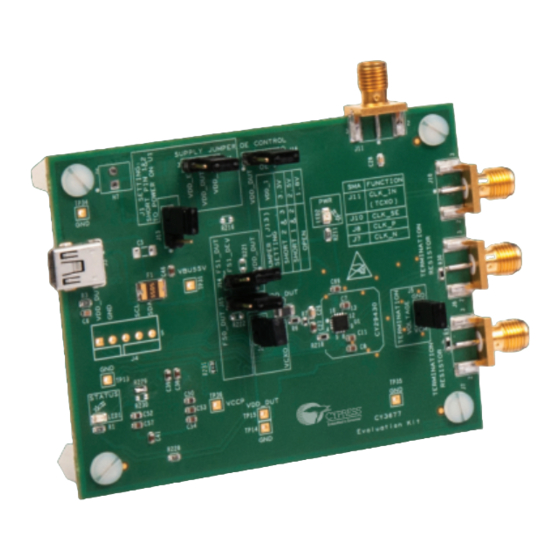

Page 2 VCXO Input Crystal* PSoC 5LP * Components are on the bottom-side (J2) (CY8C5868LTI-LP039)* of the Evaluation Board © 2016 Cypress Semiconductor Corporation. All rights reserved. All trademarks or registered trademarks referenced herein are the property of their respective owners. 002-11137 Rev.*B...
