Cell Voltage Monitor & Logger

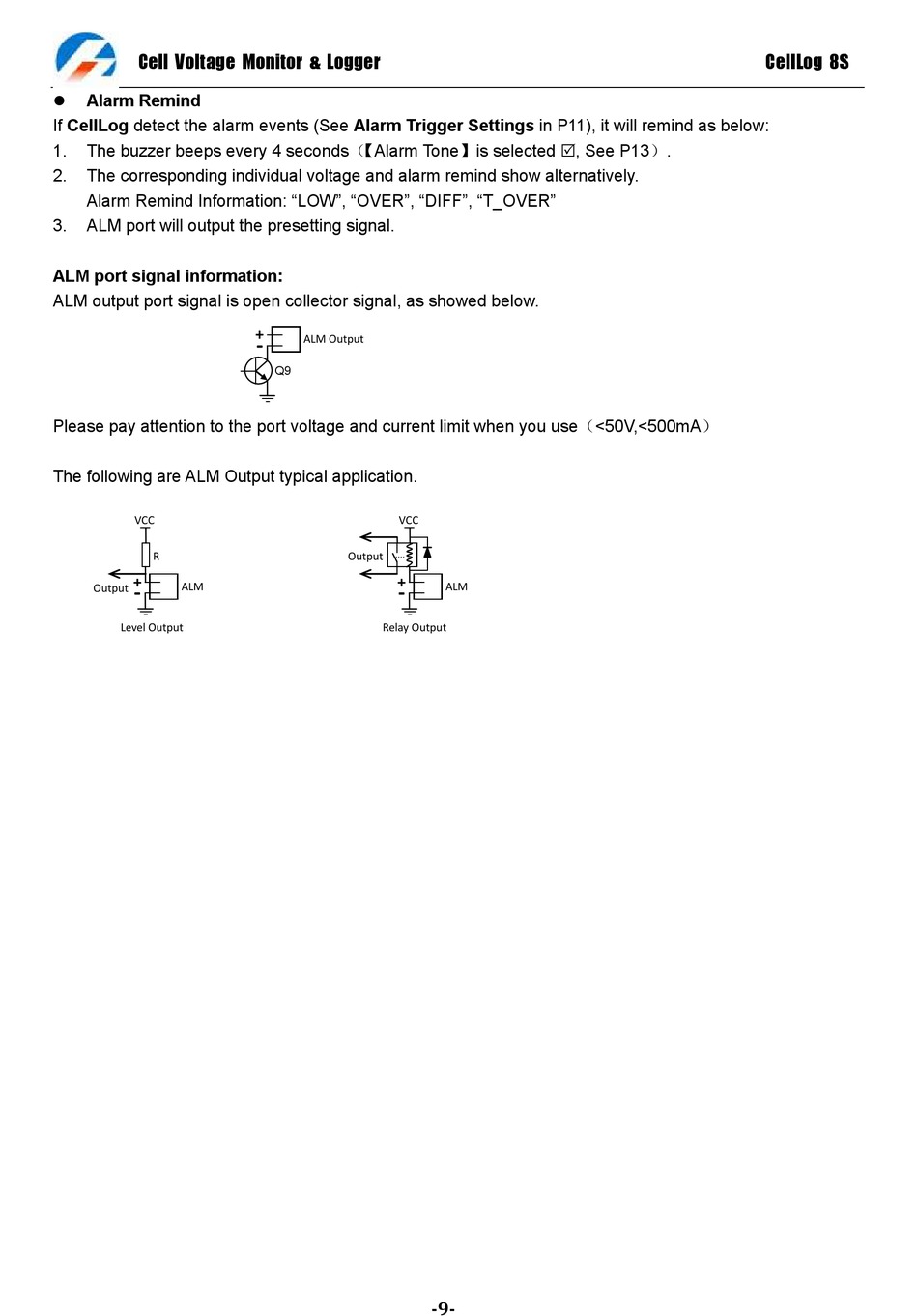

 Alarm Remind
If CellLog detect the alarm events (See Alarm Trigger Settings in P11), it will remind as below:
1. The buzzer beeps every 4 seconds（ 【Alarm Tone】is selected , See P13）.
2. The corresponding individual voltage and alarm remind show alternatively.
Alarm Remind Information: ―LOW‖, ―OVER‖, ―DIFF‖, ―T_OVER‖
3. ALM port will output the presetting signal.
ALM port signal information:
ALM output port signal is open collector signal, as showed below.
Please pay attention to the port voltage and current limit when you use（<50V,<500mA）
The following are ALM Output typical application.
VCC
R
+
ALM
Output -
Level Output
+
ALM Output
-
Q9
VCC
Output
+
-
Relay Output
ALM
-9-
