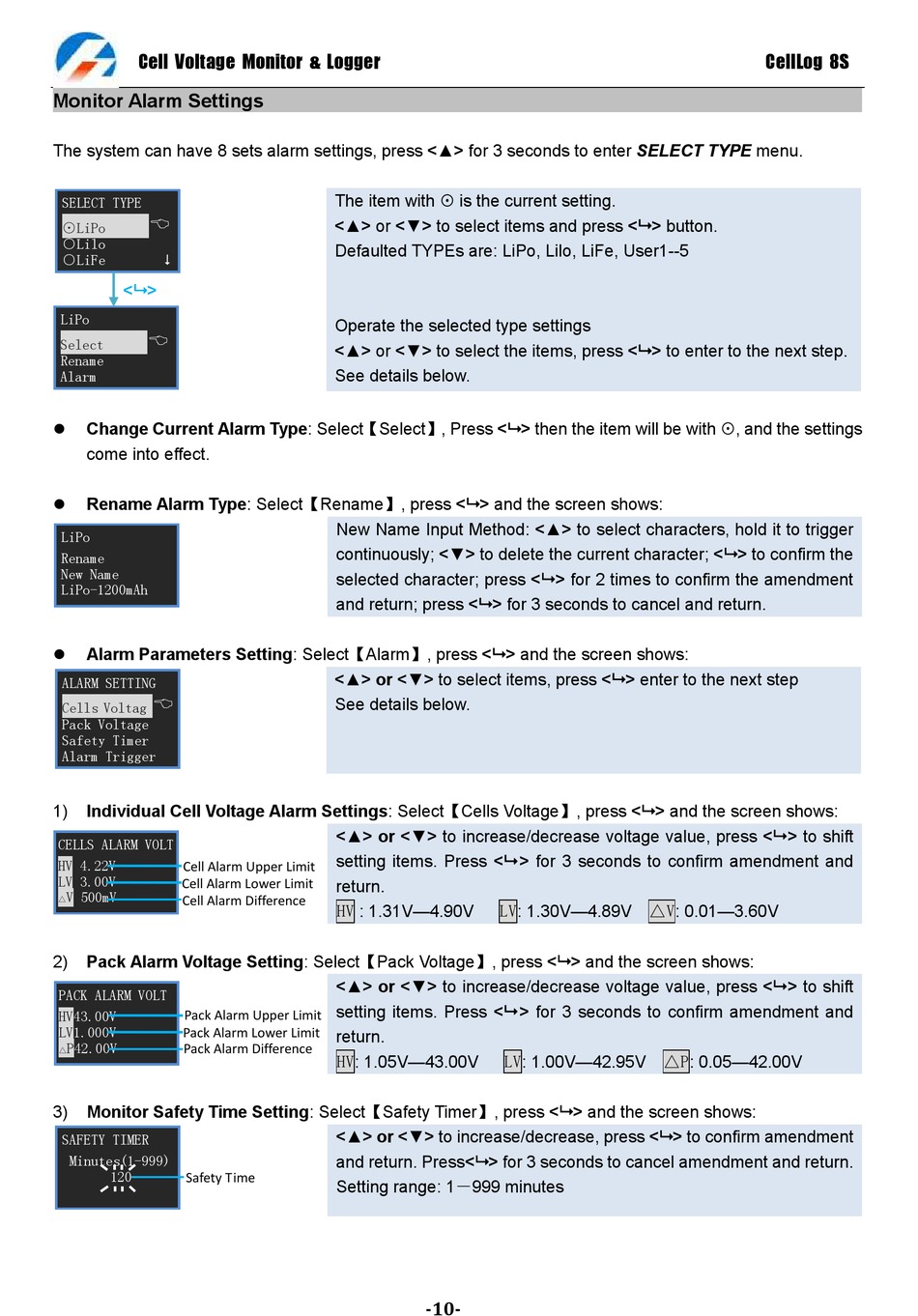

Junsi CellLog 8S User Manual page 10

Cell Voltage Monitor & Logger
Monitor Alarm Settings
The system can have 8 sets alarm settings, press <▲> for 3 seconds to enter SELECT TYPE menu.
SELECT TYPE

⊙LiPo
○Lilo

○LiFe
< >
LiPo

Select
Rename
Alarm
 Change Current Alarm Type: Select【Select】, Press < > then the item will be with , and the settings
come into effect.
 Rename Alarm Type: Select【Rename】, press < > and the screen shows:
LiPo
Rename
New Name
LiPo-1200mAh
 Alarm Parameters Setting: Select【Alarm】, press < > and the screen shows:
ALARM SETTING

Cells Voltag
Pack Voltage
Safety Timer
Alarm Trigger
1) Individual Cell Voltage Alarm Settings: Select【Cells Voltage】, press < > and the screen shows:
CELLS ALARM VOLT
HV 4.22V
Cell Alarm Upper Limit
LV 3.00V
Cell Alarm Lower Limit
V 500mV
Cell Alarm Difference
▣
2) Pack Alarm Voltage Setting: Select【Pack Voltage】, press < > and the screen shows:
PACK ALARM VOLT
Pack Alarm Upper Limit
HV43.00V
LV1.000V
Pack Alarm Lower Limit
P42.00V
Pack Alarm Difference
▣
3) Monitor Safety Time Setting: Select【Safety Timer】, press < > and the screen shows:
SAFETY TIMER
Minutes(1-999)
120
Safety Time
The item with  is the current setting.
<▲> or <▼> to select items and press < > button.
Defaulted TYPEs are: LiPo, Lilo, LiFe, User1--5
Operate the selected type settings
<▲> or <▼> to select the items, press < > to enter to the next step.
See details below.
New Name Input Method: <▲> to select characters, hold it to trigger
continuously; <▼> to delete the current character; < > to confirm the
selected character; press < > for 2 times to confirm the amendment
and return; press < > for 3 seconds to cancel and return.
<▲> or <▼> to select items, press < > enter to the next step
See details below.
<▲> or <▼> to increase/decrease voltage value, press < > to shift
setting items. Press < > for 3 seconds to confirm amendment and
return.
HV : 1.31V—4.90V LV: 1.30V—4.89V ▣V: 0.01—3.60V
<▲> or <▼> to increase/decrease voltage value, press < > to shift
setting items. Press < > for 3 seconds to confirm amendment and
return.
HV: 1.05V—43.00V LV: 1.00V—42.95V ▣P: 0.05—42.00V
<▲> or <▼> to increase/decrease, press < > to confirm amendment
and return. Press< > for 3 seconds to cancel amendment and return.
Setting range: 1－999 minutes
-10-
CellLog 8S
