Junsi CellLog 8S User Manual page 16

Cell Voltage Monitor & Logger

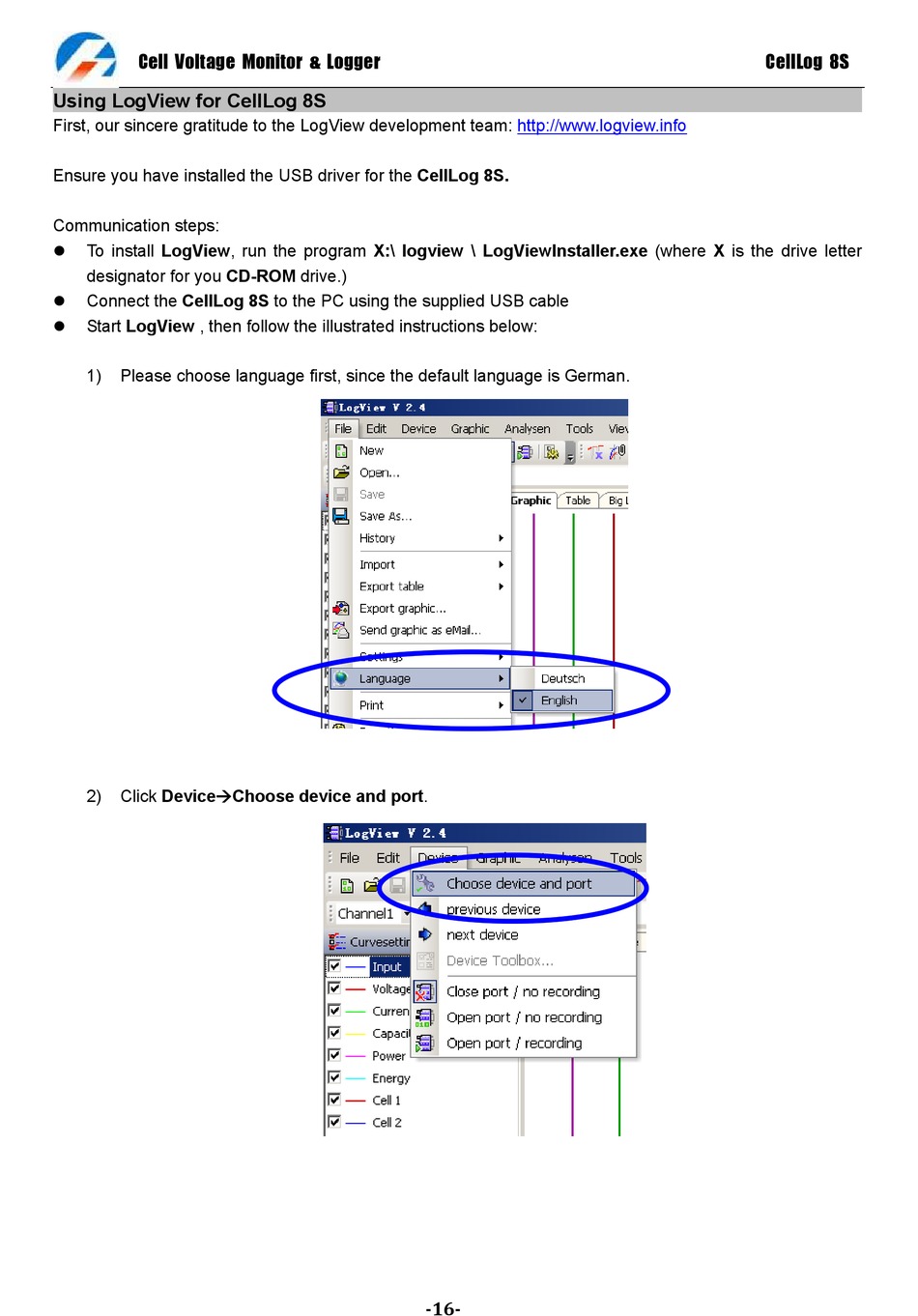

Using LogView for CellLog 8S
First, our sincere gratitude to the LogView development team:
Ensure you have installed the USB driver for the CellLog 8S.
Communication steps:
 To install LogView, run the program X:\ logview \ LogViewInstaller.exe (where X is the drive letter
designator for you CD-ROM drive.)
 Connect the CellLog 8S to the PC using the supplied USB cable
Start LogView , then follow the illustrated instructions below:

1) Please choose language first, since the default language is German.
2) Click DeviceChoose device and port.
http://www.logview.info
-16-
CellLog 8S
