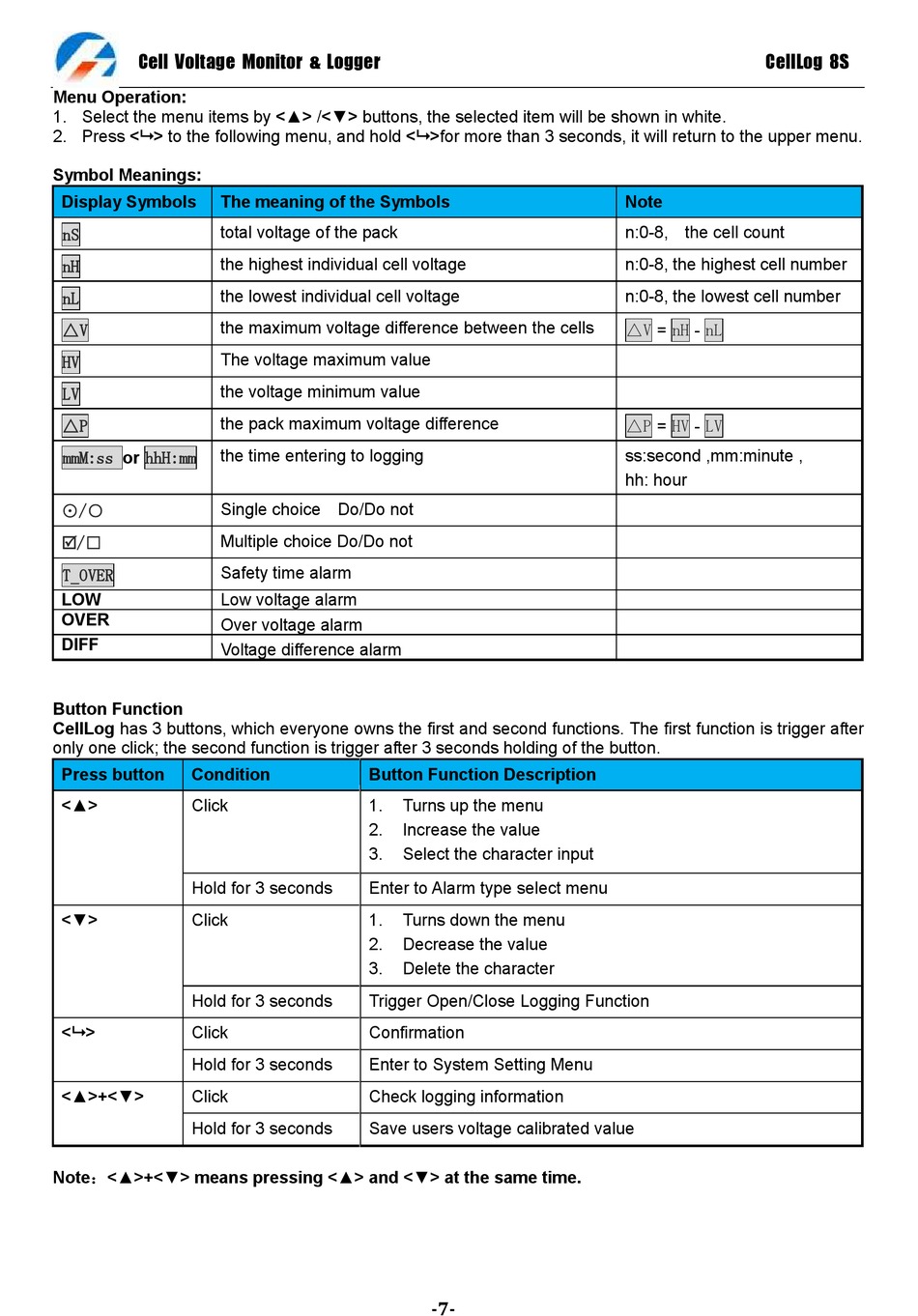

Button Function - Junsi CellLog 8S User Manual

Cell Voltage Monitor & Logger
Menu Operation:
1. Select the menu items by <▲> /<▼> buttons, the selected item will be shown in white.
2. Press < > to the following menu, and hold < >for more than 3 seconds, it will return to the upper menu.
Symbol Meanings:
Display Symbols The meaning of the Symbols
total voltage of the pack
nS
the highest individual cell voltage
nH
the lowest individual cell voltage
nL
the maximum voltage difference between the cells
▣V
The voltage maximum value
HV
the voltage minimum value
LV
the pack maximum voltage difference
▣P
the time entering to logging
or
mmM:ss hhH:mm
Single choice Do/Do not
⊙/○
Multiple choice Do/Do not
/□
Safety time alarm
T_OVER
LOW Low voltage alarm
OVER
Over voltage alarm
DIFF
Voltage difference alarm

Button Function

CellLog has 3 buttons, which everyone owns the first and second functions. The first function is trigger after
only one click; the second function is trigger after 3 seconds holding of the button.
Press button Condition
<▲> Click
Hold for 3 seconds
<▼> Click
Hold for 3 seconds
< > Click
Hold for 3 seconds
<▲>+<▼> Click
Hold for 3 seconds
Note：<▲>+<▼> means pressing <▲> and <▼> at the same time.
Button Function Description
1. Turns up the menu
2. Increase the value
3. Select the character input
Enter to Alarm type select menu
1. Turns down the menu
2. Decrease the value
3. Delete the character
Trigger Open/Close Logging Function
Confirmation
Enter to System Setting Menu
Check logging information
Save users voltage calibrated value
-7-
CellLog 8S
Note
n:0-8, the cell count
n:0-8, the highest cell number
n:0-8, the lowest cell number
= -
▣V nH nL
= -
▣P HV LV
ss:second ,mm:minute ,
hh: hour
