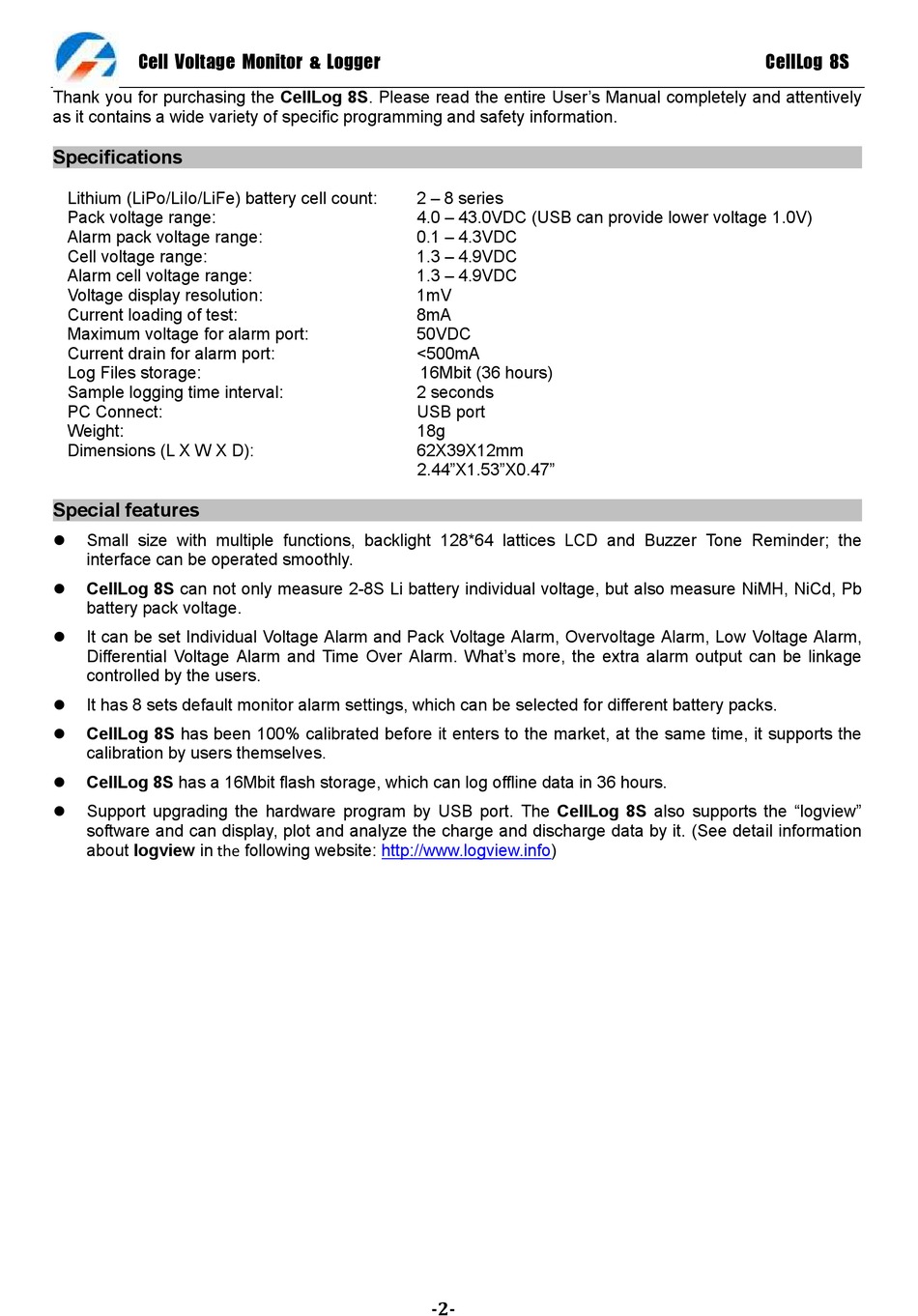

Cell Voltage Monitor & Logger
Thank you for purchasing the CellLog 8S. Please read the entire User's Manual completely and attentively
as it contains a wide variety of specific programming and safety information.

Specifications

Lithium (LiPo/LiIo/LiFe) battery cell count:
Pack voltage range:
Alarm pack voltage range:
Cell voltage range:
Alarm cell voltage range:
Voltage display resolution:
Current loading of test:
Maximum voltage for alarm port:
Current drain for alarm port:
Log Files storage:
Sample logging time interval:
PC Connect:
Weight:
Dimensions (L X W X D):

Special features

 Small size with multiple functions, backlight 128*64 lattices LCD and Buzzer Tone Reminder; the
interface can be operated smoothly.
CellLog 8S can not only measure 2-8S Li battery individual voltage, but also measure NiMH, NiCd, Pb

battery pack voltage.
 It can be set Individual Voltage Alarm and Pack Voltage Alarm, Overvoltage Alarm, Low Voltage Alarm,
Differential Voltage Alarm and Time Over Alarm. What's more, the extra alarm output can be linkage
controlled by the users.
 It has 8 sets default monitor alarm settings, which can be selected for different battery packs.
 CellLog 8S has been 100% calibrated before it enters to the market, at the same time, it supports the
calibration by users themselves.
 CellLog 8S has a 16Mbit flash storage, which can log offline data in 36 hours.
 Support upgrading the hardware program by USB port. The CellLog 8S also supports the ―logview‖
software and can display, plot and analyze the charge and discharge data by it. (See detail information
about logview in the following website: http://www.logview.info)
2 – 8 series
4.0 – 43.0VDC (USB can provide lower voltage 1.0V)
0.1 – 4.3VDC
1.3 – 4.9VDC
1.3 – 4.9VDC
1mV
8mA
50VDC
<500mA
16Mbit (36 hours)
2 seconds
USB port
18g
62X39X12mm
2.44‖X1.53‖X0.47‖
