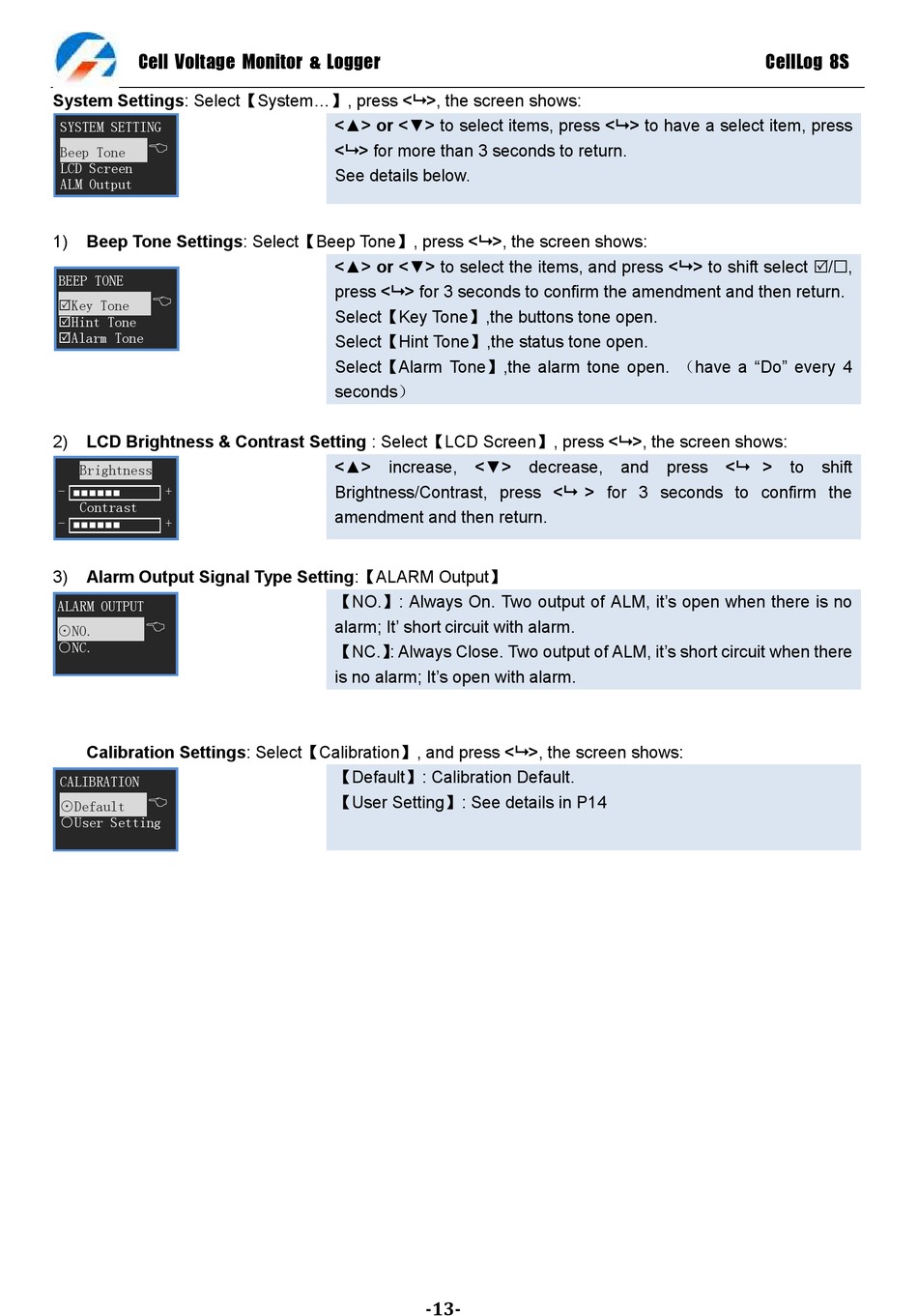

Junsi CellLog 8S User Manual page 13

Cell Voltage Monitor & Logger
System Settings: Select【System...】, press < >, the screen shows:
SYSTEM SETTING

Beep Tone
LCD Screen
ALM Output
1) Beep Tone Settings: Select【Beep Tone】, press < >, the screen shows:
BEEP TONE

Key Tone
Hint Tone
Alarm Tone
2) LCD Brightness & Contrast Setting : Select【LCD Screen】, press < >, the screen shows:
Brightness
- +
■■■■■■
Contrast
- +
■■■■■■
3) Alarm Output Signal Type Setting:【ALARM Output】
ALARM OUTPUT

⊙NO.
○NC.
Calibration Settings: Select【Calibration】, and press < >, the screen shows:
CALIBRATION

⊙Default
○User Setting
<▲> or <▼> to select items, press < > to have a select item, press
< > for more than 3 seconds to return.
See details below.
<▲> or <▼> to select the items, and press < > to shift select /,
press < > for 3 seconds to confirm the amendment and then return.
Select【Key Tone】,the buttons tone open.
Select【Hint Tone】,the status tone open.
Select【Alarm Tone】,the alarm tone open. （have a ―Do‖ every 4
seconds）
<▲> increase, <▼> decrease, and press <
Brightness/Contrast, press < > for 3 seconds to confirm the
amendment and then return.
【NO.】: Always On. Two output of ALM, it's open when there is no
alarm; It' short circuit with alarm.
【NC.】 : Always Close. Two output of ALM, it's short circuit when there
is no alarm; It's open with alarm.
【Default】: Calibration Default.
【User Setting】: See details in P14
