Summary of Contents for Junsi CellLog 8S

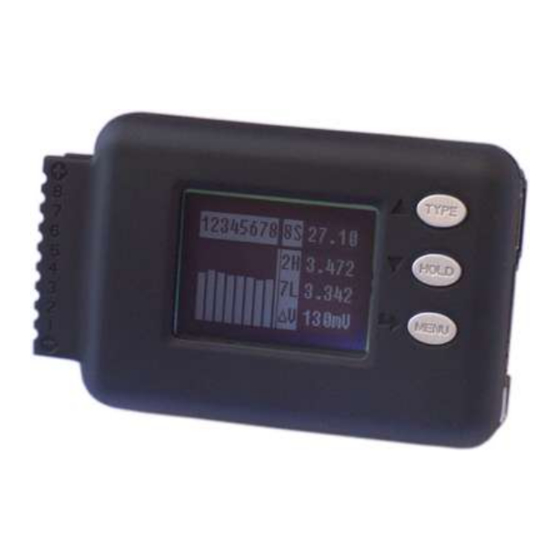

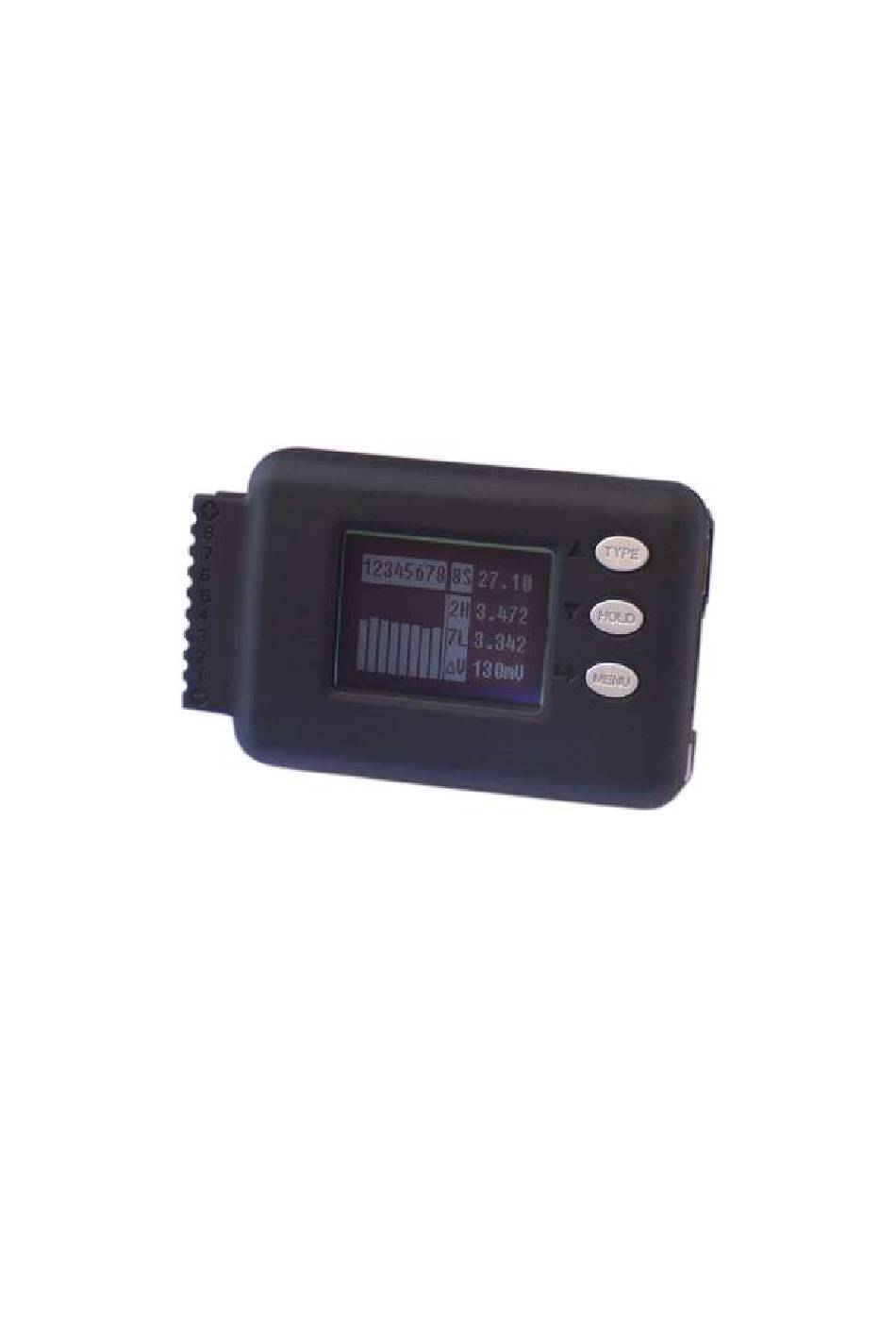

- Page 1 CellLog Cell Voltage Monitor&Logger USER’S MANUAL SHENZHEN JUNSI ELECTRONIC CO.,LTD...
-
Page 2: Specifications
It has 8 sets default monitor alarm settings, which can be selected for different battery packs. CellLog 8S has been 100% calibrated before it enters to the market, at the same time, it supports the calibration by users themselves. -
Page 3: Unpack Inspection
Cell Voltage Monitor & Logger CellLog 8S Unpack inspection The following items are included in the package. Contact your supplier if any items are missing. Standard items: CW-USB5 CDROM 85mm 80mm One copy of the User’s manual on CDROM One Mini-USB data line... -
Page 4: External Controls And Connections
④ ① ② ⑤ ⑥ 1. Input plug 2. LCD screen 3. Function button 4. USB port 5. Beep 6. Alarm port CellLog 8S Connection Diagram TYPE HOLD MENU PIN 9 PIN 9 PIN 9 BATT. PACK PIN 1 (4—43V) -
Page 5: Program Flow Chart
<▼> 149mV 74.120V 8------ 74.128---- 0.020V ▣ ▣ Note: When you turn off the CellLog 8S it will remember the current screen and start from that screen when next turned on again. <MENU> <TYPE> <MENU> <▢>+<▼> >3 Seconds >3 Seconds... - Page 6 Cell Voltage Monitor & Logger CellLog 8S ③ Select Type SELECT TYPE LiPo ALARM SETTING CELLS ALARM VOLT 4.22V ⊙LiPo Select Cells Voltag 3.00V ○Lilo Rename Pack Voltage 500mV ○LiFe Alarm Safety Timer ▣ Alarm Trigger...
-
Page 7: Button Function
Cell Voltage Monitor & Logger CellLog 8S Menu Operation: 1. Select the menu items by <▲> /<▼> buttons, the selected item will be shown in white. 2. Press < > to the following menu, and hold < >for more than 3 seconds, it will return to the upper menu. -
Page 8: Quick Start
Cell Voltage Monitor & Logger CellLog 8S QUICK START CellLog Power On (2 ways: one is connecting the battery through the left 9 Pin socket, the other one is through the USB port), System self-check, and then shows the SN and version number, the display information are as below:... - Page 9 Cell Voltage Monitor & Logger CellLog 8S Alarm Remind If CellLog detect the alarm events (See Alarm Trigger Settings in P11), it will remind as below: The buzzer beeps every 4 seconds（ 【Alarm Tone】is selected , See P13）. The corresponding individual voltage and alarm remind show alternatively.
- Page 10 Cell Voltage Monitor & Logger CellLog 8S Monitor Alarm Settings The system can have 8 sets alarm settings, press <▲> for 3 seconds to enter SELECT TYPE menu. The item with is the current setting. SELECT TYPE <▲> or <▼> to select items and press < > button.
- Page 11 Cell Voltage Monitor & Logger CellLog 8S Alarm Trigger Settings: Select【Alarm Trigger】, press < > and the screen shows: <▲> or <▼> to select items, press < > to shift select /, ALARM TRIGGER press< > for 3 seconds to confirm amendment and return.
-
Page 12: Parameter Setup
Cell Voltage Monitor & Logger CellLog 8S Parameter Setup Press < > for 3 seconds, and enter to the MAIN MENU, Monitor status. MAIN MENU Log Files System... Calibration Log File Management: Select【Log Files】, press < > and the screen shows: The first item is【Logs OFF】,if it is chosen, LOG function is close. - Page 13 Cell Voltage Monitor & Logger CellLog 8S System Settings: Select【System…】, press < >, the screen shows: <▲> or <▼> to select items, press < > to have a select item, press SYSTEM SETTING < > for more than 3 seconds to return.
-
Page 14: User Calibration
CellLog 8S User Calibration The CellLog 8S has been calibrated before entering to the markets, but if the users find that there is too much deviation, and then they can calibrate it as the following items: Before calibration, you need prepare: 8s battery pack (the individual voltage ranges from 3.8-4.2V) -
Page 15: Usb Port Installation
Connect the CellLog 8S to the PC using the supplied USB cable, choose ―Device‖ in ―Device List‖, then select the upgrade file (you can download the latest file). The progress bar will appear after you click ―Update…‖... - Page 16 To install LogView, run the program X:\ logview \ LogViewInstaller.exe (where X is the drive letter designator for you CD-ROM drive.) Connect the CellLog 8S to the PC using the supplied USB cable Start LogView , then follow the illustrated instructions below: ...
- Page 17 Cell Voltage Monitor & Logger CellLog 8S Choose Junsi CellLog 8S from the list and then choose the correct communication Port. Click ―Start recording‖ to record data. Refer to the LogView online help for more information about its features and operation.
- Page 18 Cell Voltage Monitor & Logger CellLog 8S Optional parts Balance Connector Conversion Board CB1010-XH CB1010-EH 44mm 44mm For Align/Dualshy pack etc. For Kokam/Graupher pack etc. CB1010-AQP CB1010-TP 51mm 44mm For Polyquest/Hyperion pack etc. For Thunder power/Flight power packs etc. Wire...
-
Page 19: Limited Warranty
CellLog 8S Limited warranty CellLog 8S is guaranteed to be free from defects in material and workmanship for a period of one calendar year from date of purchase. Your selling dealer is your first point of contact for warranty issues.
