Fuse
number
Front seat ventilation - left-hand drive
A
USB charging - LHD
B
USB charging - RHD
C
Front seat ventilation - right-hand drive
D

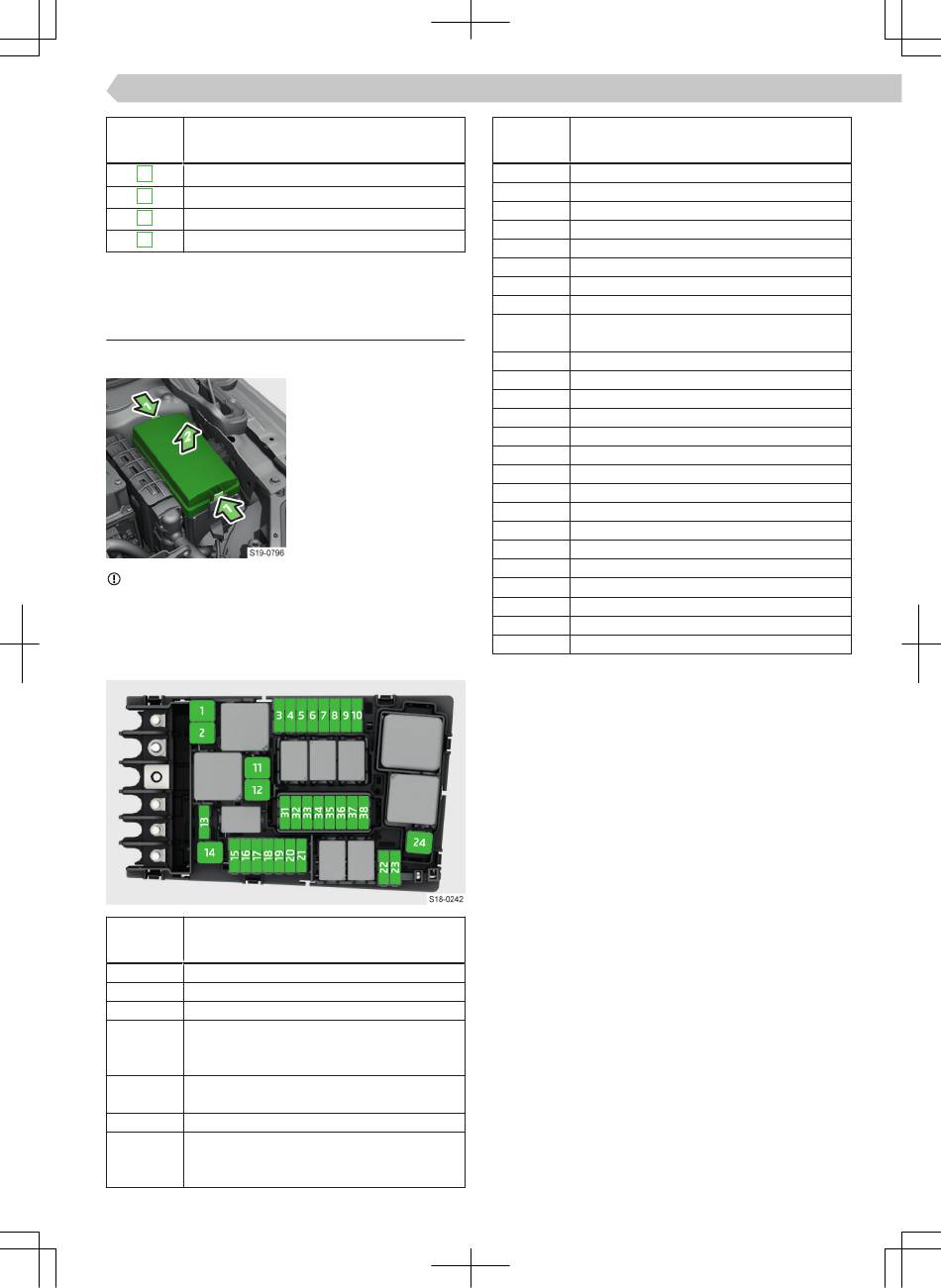

Fuses in the engine compartment
Overview
Access to the fuses
NOTICE
Danger of water entering the fuse box.
Fit the cover correctly and click into place secure-
▶
ly.
Fuses overview
Fuse
number
1
ESC, parking brake
2
ESC
3
Engine control system
4
Radiator fan, fuel pressure regulator, oil
level and oil temperature sensor, engine
components
5
Engine and high-voltage battery compo-
nents
6
Cooling the high-voltage battery
7
Radiator blinds, charge air cooling pump,
crankcase ventilation heating, engine
components
Vehicle battery and fuses ›
Consumer
›
Simultaneously press
the locking buttons on
the fuse box cover and
remove the cover.
›
Change the fuse.
›
Fit the cover and click
into place.
Consumer
Fuses in the engine compartment
Fuse
Consumer
number
8
Lambda probe
9
Ignition, engine components
10
Fuel pump
11
Electric auxiliary heater
12
Electric auxiliary heater
13
Oil pump for automatic gearbox
14
Heated windscreen
15
Horn
16
Electric drive electronics, charging the
high-voltage battery
17
ESC, engine control unit, main relay coil
18
Databus, battery data module
19
Windscreen wiper
20
Brake servo
21
Automatic gearbox
22
Not used
23
Not used
24
Electric auxiliary heater
31
Cooling the high-voltage battery
32
Not used
33
Not used
34
Not used
35
Air Conditioning
36
Left headlight
37
Auxiliary heating
38
Right headlight
161
