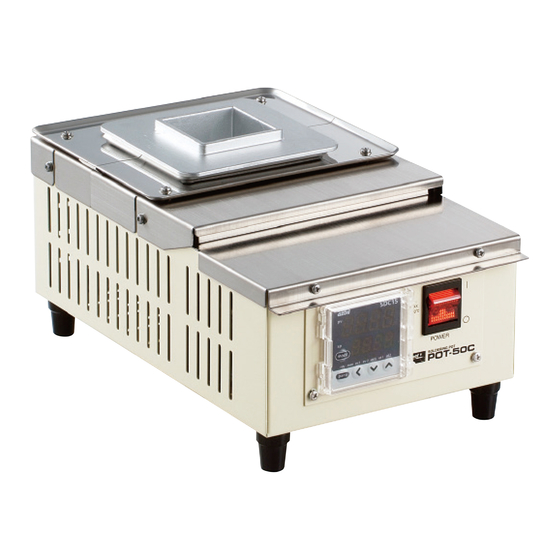

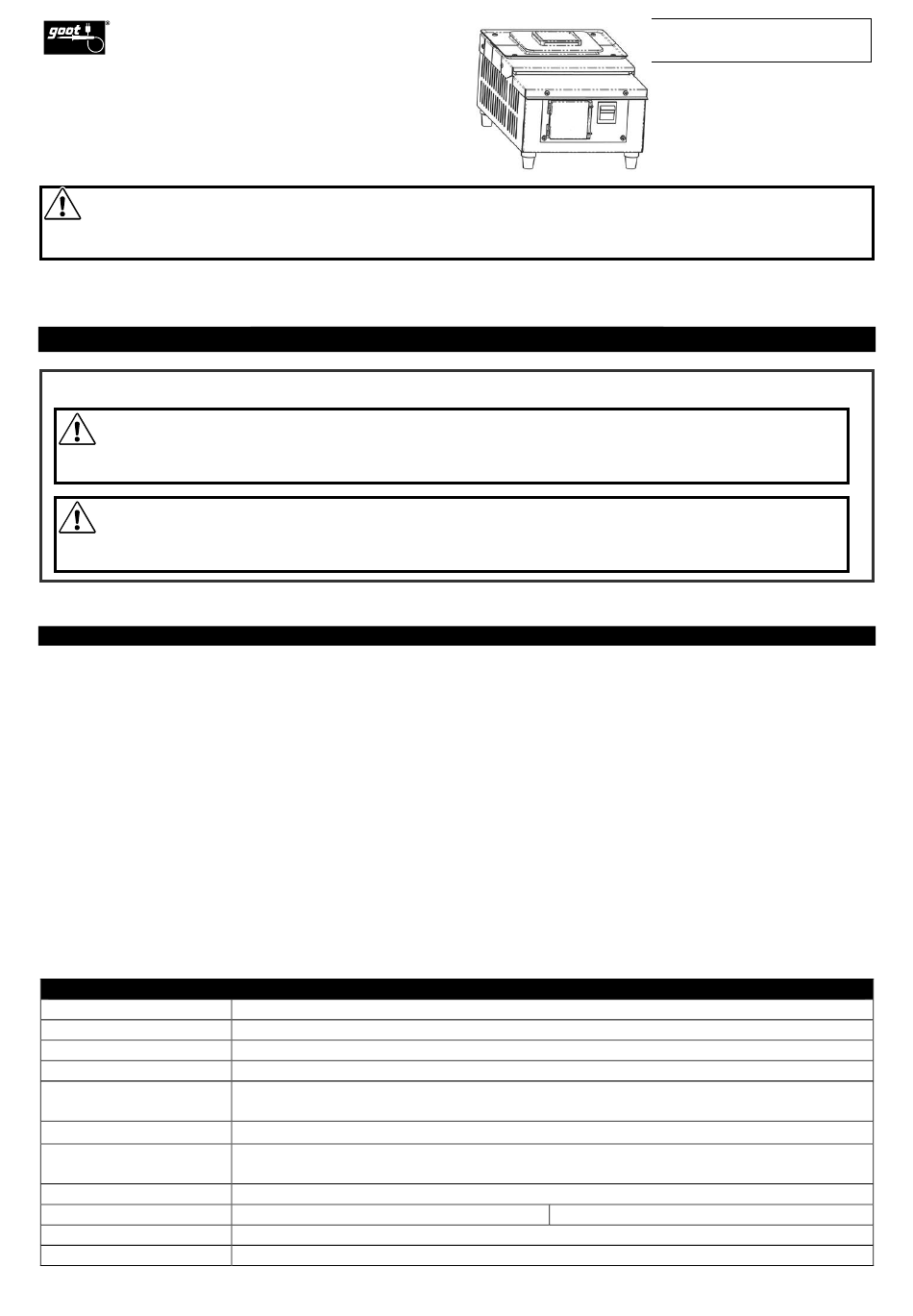

LEAD-FREE APPLICABLE SOLDER POT
POT-50C
WARNING
Before using the solder pot, read the Operation Manual. Failure to follow the safety precautions and
instructions in this manual could result in serious injury and property damage.
Thank you for buying a goot solder pot. Accurate PID temperature control, long life ceramic heater and solder bath material are
perfect for lead-free soldering.
The safety signal words [WARNING] and [CAUTION] are defined below.
WARNING
Failure to obey a safety warning could result in serious injury or death to yourself or to others. Always
follow the safety precautions to reduce the risk of electric shock, fire or personal injury.
CAUTION
Failure to obey a safety caution may result in a minor or moderate injury to yourself or to others.
Always follow the safety precautions to reduce the risk of electric shock, fire or personal injury.
1. Table of Contents / Specifications
1. Table of Contents / Specifications ............................................................................................................................................... 1
2. Introduction ................................................................................................................................................................................. 1
2.1 Features ............................................................................................................................................................................... 1
2.2 Unpacking ............................................................................................................................................................................. 1
3. Rules for Safe Operation ............................................................................................................................................................ 1
4. Operation Instructions ................................................................................................................................................................. 2
4.1 Set up ................................................................................................................................................................................... 2
4.2 Name of Parts and Control Panel Functions ......................................................................................................................... 3
4.3 How to set ............................................................................................................................................................................. 3
5. Maintenance ............................................................................................................................................................................... 4
6. Troubleshooting .......................................................................................................................................................................... 1
7. Replacement Parts ..................................................................................................................................................................... 1
7.1 Replacement Parts ............................................................................................................................................................... 1
7.2 Replacement Procedures ..................................................................................................................................................... 1
Specifications
Model
Voltage
Power Consumption
Maximum Current
Solder Bath
Temperature
Unit Dimensions
Solder Bath
Dimensions
Weight
Max. Solder Volume
Solder Bath Material
Power Cord Length
KEEP THIS MANUAL FOR FUTURE REFERENCE
110-120V , 220 - 240V AC 50/60 Hz
25A , 11A (at solder temperature 25
174(W) x 285(D) x 142(H) (6.9 X 11.2 x 5.6 inch)
Approx. 850g (1.9 lb)
1.5m (4.9 ft.) (3 core cord) ground plug
POT-50C
470-610W , 370 - 430W
o
Room temp.--- 500
C / 932
50(W) x 50(D) x 50(H)
(2 x 2 x 2 inch)
Approx.4Kg (75 lb)
Cast Iron
1
OPERATION MANUAL
o
o
C / 77
F)
o
F
Approx. 1900g (4.2 lb)
Advertisement
Table of Contents
Related Manuals for Goot POT-50C
Summary of Contents for Goot POT-50C
- Page 1 Before using the solder pot, read the Operation Manual. Failure to follow the safety precautions and instructions in this manual could result in serious injury and property damage. Thank you for buying a goot solder pot. Accurate PID temperature control, long life ceramic heater and solder bath material are perfect for lead-free soldering.
- Page 2 2. Introduction 2.1 Features ⚫ Perfect for insulation-removal and preparative soldering of transformer leads and other leads (POT-50C) ⚫ Accurate PID temperature control. User defined bath temperature regulation by switching to sensor feedback ON/OFF control. ⚫ Dual digital display shows the set temperature and measured temperature at the same time.
- Page 3 6. DO NOT ABUSE THE POWER CORD AND INSPECT IT PERIODICALLY. Never yank the power cord to disconnect it from the receptacle. Keep the power cord away from heat, oil and sharp edges. If it is damaged, replace it. 7. FOR FACTORY USE ONLY This unit has noise proof circuit for factory use.
- Page 4 3. Place the required amount of solder into the solder bath and turn the unit ON. Ideal solder level is 5mm below the rim of the bath. 4. Following the Control Panel setting procedure, input the temperature settings. This unit is set to 270 °C (518°F) prior to shipment.
- Page 5 1. Enter the setting mode 4.Setting the 100 digit. Press the key to enter the SP Move the flashing digit to setting mode. the 100 digit by pressing The lowest digit in the SV key. display flashes. 2. Setting the 10 digit 5.Increase /decrease of the value Press the key until the 10...
- Page 6 Replace the heater. The alarm code display is shown. Check the alarm code table in the SDC15 operation manual. Return your goot distributor for service if you cannot solve the trouble above. 7. Replacement Parts 7.1 Replacement Parts No. Item No.
- Page 7 Replacing the bath and heater.(POT-50C) 1. Loosen the two screws in Top plate B and remove the Top plate B. 2. Loosen the two screws in Top plate A and remove the Top plate A. 3. Remove the nuts from the Terminal block. Take care not to loosen the Lower nuts underneath when doing this.
- Page 8 For service, accessories and etc, Contact your nearest distributor or following: SOLDERING IRONS, EQUIPMENT & ACCESSORIES TAIYO ELECTRIC IND.CO.,LTD www.goot.co.jp TEL:81-84-951-1512 FAX:81-84-951-9531 A4190HL00 2019-2-15...
