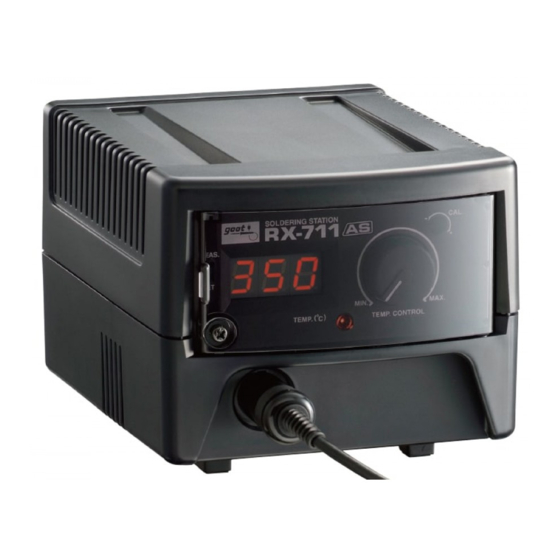

TEMPERATURE CONTROLLED SOLDERING STATION
OWNER'S OPERATION MANUAL
Phone: (03) 98306288
TAIYO ELECTRIC IND.CO.LTD.
AS series is the Anti-Static series
Phone: (03) 98306288
high standard for
Advertisement
Table of Contents
Related Manuals for Goot Anti-Static Series
Summary of Contents for Goot Anti-Static Series
- Page 1 TAIYO ELECTRIC IND.CO.LTD. TEMPERATURE CONTROLLED SOLDERING STATION OWNER'S OPERATION MANUAL AS series is the Anti-Static series www.procontechnology.com.au Phone: (03) 98306288 WARNING Before using the soldering station, read the Owner's Operation Manual. Failure to follow the safety precautions and instructions in this manual could result in serious injury and property damage.
-
Page 2: Table Of Contents
TAIYO ELECTRIC IND.CO.LTD. TABLE OF CONTENTS /SPECIFICATIONS 1. TABLE OF CONTENTS / SPECIFICATIONS 2. INTRODUCTION 2-1 UNPACKING 2-2 NAME OF PARTS 2-3 SAFETY 3. RULES FOR SAFE OPERATION 4. OPERATION 5. MAINTENANCE 5-1 REPLACING THE TIP 5-2 REPLACING THE HEATER 5-3 TEMPERATURE CALIBRATION 5-4 HOUSING CLEANING 6. -
Page 3: Introduction
TAIYO ELECTRIC IND.CO.LTD. 2 INTRODUCTION 2-1 UNPACKING Do not discard the packing material until you have carefully inspected and satisfactorily operated the soldering station. PACKING LIST Control Unit Soldering Unit Soldering Iron Stand Owner's Operation Manual www.procontechnology.com.au Phone: (03) 98306288... -
Page 4: Name Of Parts
TAIYO ELECTRIC IND.CO.LTD. 2-2 NAME OF PARTS ANTI-STATIC SERIES Rubber Grip Cover Temperature Display Changeover Switch AS Label AS Label (AS model only) Temperature Display AS model only AS Label (AS model only) Calibration Control Adapter Calibration Control Fixing Screw... -
Page 5: Safety
TAIYO ELECTRIC IND.CO.LTD. 2-3 SAFETY WARNING Failure to obey a safety warning could result in serious injury or death. Always follow the safety precautions given to reduce the risk of electric shock, fire or personal injury. CAUTION Failure to obey a safety caution may result in a minor or moderate injury to yourself or to others. -
Page 6: Rules For Safe Operation
TAIYO ELECTRIC IND.CO.LTD. 3 RULES FOR SAFE OPERATION READ ALL INSTRUCTIONS WARNING Do not attempt to operate this soldering station until you have read thoroughly and understand completely all instructions, safety rules, etc. contained in this manual. Failure to comply may result in accidents involving fire or serious personal injury. - Page 7 TAIYO ELECTRIC IND.CO.LTD. 8. DO NOT ABUSE THE POWER CORD AND INSPECT IT PERIODICALLY. Never carry your soldering station by the power cord or yank the power cord to discon- nect it from the receptacle. Keep the power cord away from heat, oil and sharp edges. 9.
-
Page 8: Operation
TAIYO ELECTRIC IND.CO.LTD. 4 OPERATION WARNING To prevent fire, keep the soldering station away from flamma- ble substances and materials in the work area. Failure to do so could result in a serious accident. 1. Place the soldering station control unit and the soldering iron stand on a level work area that is well ventilated. - Page 9 TAIYO ELECTRIC IND.CO.LTD. B. RX-711 series only B-1. Set the temperature display changeover switch on the left side of the front panel to the SET side. With the switch at this position, the temperature display shows the set temperature. B-2. Set the power switch to ON (the I mark side). The heater monitor lamp will light and the heater will start to heat up.
- Page 10 TAIYO ELECTRIC IND.CO.LTD. When setting the temperature a short period of time is required before the NOTE temperature becomes stable. After turning the power switch ON, the temperature will become stable after two minutes. Please wait two minutes before starting the soldering operation. WARNING If a burnt smell, unusual heating or housing melting occurs unplug the soldering station.
-
Page 11: Maintenance
TAIYO ELECTRIC IND.DO.LTD. 5 MAINTENANCE WARNING When replacing the tip, heater barrel, collar, heater or other parts, be sure to unplug the soldering station and allow the soldering unit to fully cool down. Failure to follow this will result in possible electrical shocks, serious burns or a serious injury. -
Page 12: Temperature Calibration
TAIYO ELECTRIC IND.CO.LTD. 4. If the tip casing is on the heater, remove it and place it back in the tip. Then mount the new heater. 5. After mounting the new heater, reassemble by reversing the disassembly procedures. 5-3 Temperature calibration (A tip thermometer is required) Procedure A. -
Page 13: Housing Cleaning
TAIYO ELECTRIC IND.CO.LTD. 4. If the tip thermometer displays 330°C for example, adjust the temperature of solder- ing tip to be 350°C by turning the calibration control (CAL.) slowly using a standard screwdriver whilst checking the temperature. NOTE This soldering station is shipped with the temperature calibrated to 350°C. The tip temperature and the display temperature difference at 200°C and 450°C (RX-701 series) or 480°C (RX-711 series) is ±... -
Page 14: Troubleshooting Guide
TAIYO ELECTRIC IND.CO.LTD. 6 TROUBLESHOOTING GUIDE PROCEED AS FOLLOWS WHEN TROUBLE OCCURS: 1. Check that there is voltage in the receptacle and that the circuit breaker is not tripped. 2. Check that the power cord is not damaged. If it is damaged, do not use your soldering station and return it to the distributor for service. -
Page 15: Replacement Parts / Option
TAIYO ELECTRIC IND.CO.LTD. 7 REPLACEMENT PARTS L type soldering unit (Large) M type soldering unit (Normal) For soldering precision components. For soldering large components or when the set temperature is low. www.procontechnology.com.au Phone: (03) 98306288... -
Page 16: Parts List
TAIYO ELECTRIC IND.CO.LTD. 8 PARTS LIST For the replacement parts, see page 14. Contact the distributor to order spare parts. Parts Name Code Note Protective cover A0810DX00 A0853AG00 RX-70G M size tips only A0853EG00 RX 70GAS Soldering unit A0853JG00 RX 70LG L size tips only A0853LG00 RX 70LGAS... - Page 17 TAIYO ELECTRIC IND.CO.LTD. For service or replacement parts, heater elements, tips etc. Contact your nearest distributor or the following: TAIYO ELECTRIC IND.CO. LTD. : +81-84-9511512 : +81-84-9519531 e-mail : info@goot.co.jp Website: www.goot.co.jp www.procontechnology.com.au Phone: (03) 98306288...
