Goot RX-822AS Operation Manual

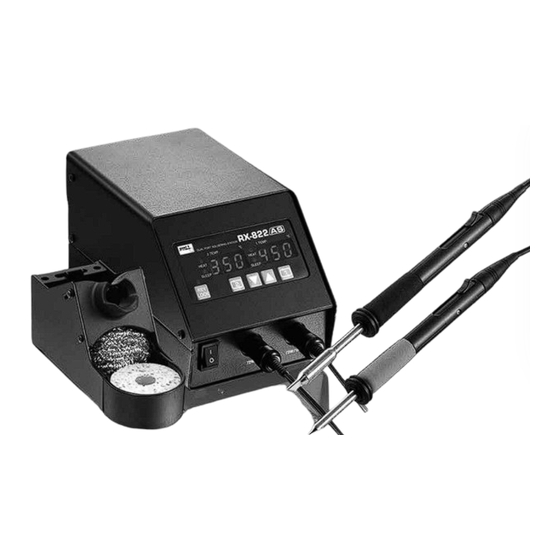

Temperature controlled lead-free dual port soldering station
Hide thumbs
Table of Contents

Advertisement

Quick Links

KEEP THIS MANUAL FOR FUTURE REFERENCE
Soldering Iron Stand x 2 included.
WARNING
Before using the soldering station, read the Operation Manual.
Failure to follow the safety precautions and instructions in this
manual could result in serious injury and property damage.
Thank you for buying a goot soldering station. Your new soldering station has been engi-
neered and manufactured to goot's high standards of dependability, ease of operation, and
operator safety. If you follow the instructions and safety precautions in this manual and use
the soldering station properly and only for what it is intended, you will enjoy years of safe,
reliable service. Thank you again for buying a goot soldering station.
TAIYO ELECTRIC IND.CO.,LTD.
TEMPERATURE CONTROLLED
LEAD-FREE DUAL PORT SOLDERING STATION
RX-822AS
TAIYO ELECTRIC IND.CO.,LTD.
OPERATION MANUAL
Note Tips Not Included.
Tips Sold Separately.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RX-822AS and is the answer not in the manual?

Questions and answers

Related Manuals for Goot RX-822AS

Summary of Contents for Goot RX-822AS

  • Page 1 Failure to follow the safety precautions and instructions in this manual could result in serious injury and property damage. Thank you for buying a goot soldering station. Your new soldering station has been engi- neered and manufactured to goot's high standards of dependability, ease of operation, and operator safety.
  • Page 2 TAIYO ELECTRIC IND.CO.,LTD. Safety Mark Definitions Follow all WARNINGS and CAUTIONS in this manual for the safe and correct use of the soldering station and to protect the operator and others from injury and damage to property. Please make sure you fully understand all parts of this manual.

  • Page 3: Table Of Contents

    TAIYO ELECTRIC IND.CO.,LTD. 1 Table of Contents 1. Table of Contents / Specifications ..........3 2. Introduction ................5 2.1 Features of the RX-822AS ..............5 2.2 Unpacking ................6 2.3 Name of Parts ................7 2.4 Setup ................9 3. Rules for Safe Operation ..............10 4.
  • Page 4 TAIYO ELECTRIC IND.CO.,LTD. Specifications MODEL RX-822AS Voltage 110-120, 220-240V AC Power Consumption 220–260W RX-85GAS: Soldering unit [1] side 24V AC / 150W Soldering Iron Voltage /Wattage RX-80GAS: Soldering unit [2] side 24V AC / 72W Temperature Setting Range 50–450°C (122–842°F)

  • Page 5: Introduction

    TAIYO ELECTRIC IND.CO.,LTD. 2 Introduction Features of the RX-822AS The RX-822AS includes 2 soldering units per one control unit for lead-free soldering. The tip is a long-life compact type with integrated heater. 1. 2 soldering irons can be used 9. Thick iron plating for lead-free soldering Can be prepared with 2 different tip types.

  • Page 6: Unpacking

    TAIYO ELECTRIC IND.CO.,LTD. Unpacking Please make sure that all the items listed below are included, and that the soldering station functions properly before throwing away the packaging. Packing List ■ Control Unit ■ Soldering Unit (RX-85GAS, RX-80GAS) ■ Soldering Iron Stand ST-21 x 2 ■...

  • Page 7: Name Of Parts

    TAIYO ELECTRIC IND.CO.,LTD. Name of Parts Control Unit Power Cord Socket (With built-in replacement fuse) Power Cord Socket (With built-in replacement fuse) RX-822 DUAL PORT SOLDERING STATION 2.TEMP. ˚C 1.TEMP. ˚C Operation Panel HEAT HEAT SLEEP SLEEP RX-822 DUAL PORT SOLDERING STATION LOCK 2.TEMP.
  • Page 8 TAIYO ELECTRIC IND.CO.,LTD. ■Operation Panel ① ③ ③ RX-822 DUAL PORT SOLDERING STATION 2.TEMP. ˚C 1.TEMP. ˚C ① HEAT HEAT ② ④ SLEEP SLEEP ④ ② ⑤ LOCK ⑥ ⑦ ⑧ ⑨ ⑦ 1. HEAT lamp Lights up when the heater is ON. 2.

  • Page 9: Setup

    TAIYO ELECTRIC IND.CO.,LTD. Setup Assemble according to following illustrations. Parts cannot be connected other than as shown. Connecting parts by force will result in breakage. Output Terminal for Soldering unit [ 2] (72W) Output Terminal for Soldering unit [ 1] (150W/72W) Soldering unit RX-80GAS ［72W］...

  • Page 10: Rules For Safe Operation

    TAIYO ELECTRIC IND.CO.,LTD. 3 Rules for Safe Operation WARNING Do not operate the soldering station until you have read and understood the whole manual and safety instruc- tions. 1. KNOW YOUR SOLDERING STATION. Do not attempt to operate this soldering station until you have read thoroughly and understood completely all instructions, safety, rules, etc.
  • Page 11 Young children should be supervised to ensure that they do not play with the soldering iron. WARNING The RX-822AS is an anti-static model. Be sure to prop- erly ground the soldering station using a grounded receptacle to prevent electric shocks and anti-static. If it is not properly grounded, electric shocks will occur.

  • Page 12: Operation Instructions

    TAIYO ELECTRIC IND.CO.,LTD. 4 Operating Instructions 4-1 General Control Panel Operation Flow Chart When the power is switched on the tip will start heating up. Press the key for the temperature setting mode. Press down the key for over 3 seconds for the parameter changing mode.

  • Page 13: Changing The Set Temperature

    TAIYO ELECTRIC IND.CO.,LTD. 4-2 Changing the Set Temperature (Each soldering unit can be set separately) At the time of shipping the temperature is set at 250°C (482°F). The temperature can be set from 50°C (122°F) to 450°C (842°F). *The tip temperature will not become lower than ambient temperature.

  • Page 14: Calibration Of The Tip Temperature

    (Each soldering unit can be set separately) The temperature of the RX-822AS can be calibrated easily by inputting the tip number, which is engraved on the tip. When you change to a different type of tip, you will need to calibrate the tip temperature as below.

  • Page 15: Calibration Function

    RX-822AS control unit display. This could be because the tip is not coming into contact properly with the sensor of the tip thermometer. It could also be...

  • Page 16: Sleep Function

    TAIYO ELECTRIC IND.CO.,LTD. 　4-5 Sleep Function (Each soldering unit can be set separately) The sleep start timer (CT) function automati- DIF (Sensitivity) cally lowers the temperature of the tip after a Set temperature preset period of inactivity. This function lowers the tip temperature and it will be in standby Operation Sleep start...

  • Page 17: Setting The Sleep Start Time (Ct)

    TAIYO ELECTRIC IND.CO.,LTD. Setting the Sleep Start Time (CT) Unit: mins. Example : Changing the sleep start (Each soldering unit can be set separately) time from 5 to 10 minutes. Key Operation TEMP Display Press down the [SET.] key of soldering unit you desire for over 3 Displays alternately...

  • Page 18: Setting The Sleep Sensitivity(Dif)

    TAIYO ELECTRIC IND.CO.,LTD. Setting the Sleep Sensitivity (DIF) Unit : °C Example : Changing the Sleep Sensitivity value to 2 °C (3.6°F) to 3.0°C (5.4°F). (Each soldering unit can be set separately) Key Operation TEMP Display Press down the [SET.] key of soldering unit Displays you desire for over 3...

  • Page 19: Setting The Shutdown Function

    TAIYO ELECTRIC IND.CO.,LTD. 4-6 Setting the Shutdown Function (Each soldering unit can be set separately) When the unit is not operated during the preset time, the unit automatically shuts down. This function prevents operators forgetting to turn the power off. Shutdown Function When using together with Sleep function.

  • Page 20: Setting The Temperature Range For The Alarm

    TAIYO ELECTRIC IND.CO.,LTD. 4-7 Setting the Temperature Range for the Alarm (Each soldering unit can be set separately) This function warns the operator with an alarm, when the tip temperature Lower limit temp. Upper limit temp. exceeds the set parameters. The diag- onal lines in the illustration on the right show when the alarm will sound.

  • Page 21: Control Function For Overshooting

    TAIYO ELECTRIC IND.CO.,LTD. 4-8 Control function for overshooting (Each soldering unit can be set separately) After soldering, the tip temperature may increase to higher than the set temperature depending on the tip type or the kind of work. (Overshoot) “Overshoot” will often occur when using the RX-85HSRT, but “Overshoot” can be con- trolled by setting the parameters.

  • Page 22: Setting The Alarm Sound

    TAIYO ELECTRIC IND.CO.,LTD. 4-9 Setting the Alarm Sound The volume of alarm in operation can be set to [BIG], [SMALL] or [OFF]. Shipping Default Setting : BIG Setting the alarm sound Key Operation TEMP Display Press down either Displays alternately of the [SET.] keys for over 3 seconds.

  • Page 23: Setting The Temperature Scale Display

    TAIYO ELECTRIC IND.CO.,LTD. 4-10 Setting the Temperature Scale Display The temperature can be displayed in either Shipping Default Setting : Celsius (˚C) Celsius or in Fahrenheit. Key Operation TEMP Display Press down either of the [SET.] keys for over 3 sec- onds.

  • Page 24: Key Lock Function

    TAIYO ELECTRIC IND.CO.,LTD. 4-11 Key Lock Function The Key Lock function locks the temperature and parameter settings so that the tem- perature and parameters cannot be changed by unauthorized persons. Authorized personnel may use a code number to set, or release the Key Lock function. The code number is not set before shipping.

  • Page 25: Changing The Code Number

    TAIYO ELECTRIC IND.CO.,LTD. Changing the Code Number Example : When changing the code number from 123 to 234. Key Operation TEMP Display Press the [KEY LOCK] key. Flashes 2 times Press down the [KEY LOCK] key for over 3 seconds. Press the [UP][DOWN] keys to input the pres- ent code number.

  • Page 26: Resetting The Code Number

    TAIYO ELECTRIC IND.CO.,LTD. Resetting the Code Number If you forget the code number, follow the procedure below to delete and reset the key lock. This procedure releases the key lock function which means that unauthorized persons can change the settings. Therefore, this manual should be given to authorized person- nel only.

  • Page 27: How To Restore Default Setting

    TAIYO ELECTRIC IND.CO.,LTD. 4-12 How to Restore Default Settings The default shipping parameters can be restored by following the procedure below. This procedure releases the key lock function which means that unauthorized persons can change the settings. Therefore, this manual should be given to authorized personnel only.

  • Page 28: Maintenance

    TAIYO ELECTRIC IND.CO.,LTD. 5 Maintenance WARNING The tip can be replaced without turning the power off. Take due care to avoid burns as the tip will be very hot. Leave the removed tip to cool (tip down) in the hole on the iron stand. How to Change the Tip Slide Lever Slide Lever...

  • Page 29: How To Change The Grip Rubber

    TAIYO ELECTRIC IND.DO.,LTD. How to Change the Grip Rubber Grip adapter 1. Remove the screw. Remove the grip 2. Remove the old grip rubber and Press and pull Pull out with a slotted Pull out with a slotted adapter by turning counter clockwise. replace with new one. screwdriver screwdriver Screw Screw ❶...

  • Page 30: Housing Cleaning

    TAIYO ELECTRIC IND.CO.,LTD. 5-4 Housing Cleaning At no time during cleaning allow gasoline, petroleum-based products, or penetrating oils, etc. to come into contact with the plastic parts. They contain chemicals that can damage, weaken, or destroy plastics. Remove dirt with a clean cloth. 5-5 How to Use, Clean, and Maintain a Lead-Free Soldering Iron A lead-free soldering iron is more susceptible to oxidation, and it is more difficult to wet the tip with solder.

  • Page 31: Troubleshooting

    TAIYO ELECTRIC IND.CO.,LTD. What to do when the tip is blackened and not ‘wettable’ Using a clean sponge, repeat the process of tinning and cleaning the tip several times. The tip surface of an iron that has been in use a short time, generally has a higher ‘wettability’ recov- ery level.

  • Page 32: Replacement Tips

    TAIYO ELECTRIC IND.CO.,LTD. 7 Replacement tips RX-85HRT series [150W] : RX-85GAS Applicable Soldering Unit Since the heater is integrated in the tip, replacement of only the heater or the tip Note: is not possible. ( ) Slim type 47 (49) 11.5 RX-85HRT-B RX-85HRT-5D...
  • Page 33 TAIYO ELECTRIC IND.CO.,LTD. RX-80HRT series [72W] : RX-85GAS/RX-80GAS Applicable Soldering Unit Since the heater is integrated in the tip, replacement of only the heater or the tip Note: is not possible. 34.5 RX-80HRT-SB RX-80HRT-B RX-80HRT-BM RX-80HRT-2B RX-80HRT-B RX-80HRT-LB 11.5 RX-80HRT-0.5C RX-80HRT-1C RX-80HRT-1BC RX-80HRT-2C...

  • Page 34: Replacement Parts

    TAIYO ELECTRIC IND.CO.,LTD. 8 Replacement Parts For replacement parts, contact a goot distributor. Item Parts No. Note Tip is not included RX-852AS Soldering unit RX-85GAS Used for port [1] (150W) Tip is not included RX-80GAS RX-802AS Soldering unit Used for port [1] and [2] (72W)

  • Page 35: Parameters

    TAIYO ELECTRIC IND.CO.,LTD. 9 Parameters Term Display Range Unit Shipping (display panel letters Panel Default Setting （SSt＋50） 〜450 ℃ Set Temperature (PT) 0〜4, L1〜L3 — Tip Number (tPn) Temperature -50〜50 ℃ Calibration (cAL) 0〜(Pt−50) ℃ Sleep Set Temp (SSt) 0.00〜999 Minute Sleep Timer (ct)
  • Page 36 TAIYO ELECTRIC IND.CO.,LTD. TAIYO ELECTRIC IND.CO.,LTD. Customer service: Contact your nearest distributor SOLDERING EQUIPMENT AND ACCESSORIES TAIYO ELECTRIC IND.CO.,LTD. Website: www.goot.co.jp E-mail: info@goot.co.jp goot is a registered trademark of TAIYO ELECTRIC IND.CO.,LTD. Printed in Japan A1240RX00 OCTOBER 2012 AOB...
