model
Thank you for buying the goot Soldering Station.
Read this Operation Manual before using your sol-
dering station.
This is a common operation manual for RX-701AS &
RX-711AS. Each model number is mentioned in the text.
Be sure to read properly for your model.
NOTE
1. SAFETY MARK DEFINITIONS ...........................2
2. FOR SAFE OPERATION .....................................2
4. OPERATION ........................................................5
5. MAINTENANCE ..................................................7
6. IN THE EVENT OF FAILURE ..............................9
7. SPECIFICATIONS ................................................9
8. REPLACEMENT TIP ......................................... 10
9. PARTS LIST ...................................................... 11
10. SOLDERING IRON STAND ST-27 INSTRUCTIONS .......... 12
TAIYO ELECTRIC IND.CO.,LTD.
www.goot.co.jp E-mail: info@goot.co.jp
2-16-8 Yamate, Fukuyama, Hiroshima 720-0092 JAPAN
KEEP THIS MANUAL FOR FUTURE REFERENCE

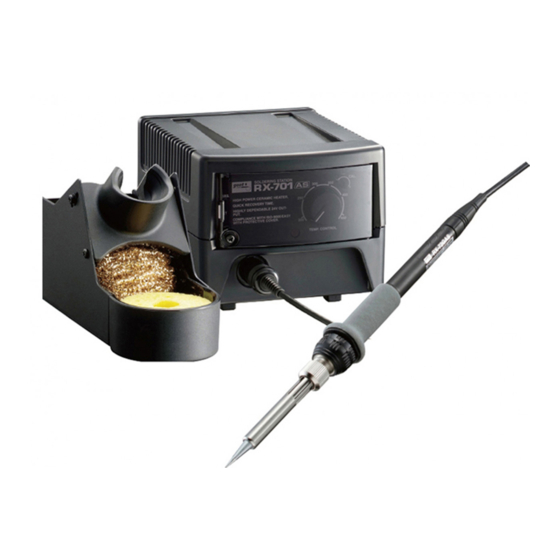

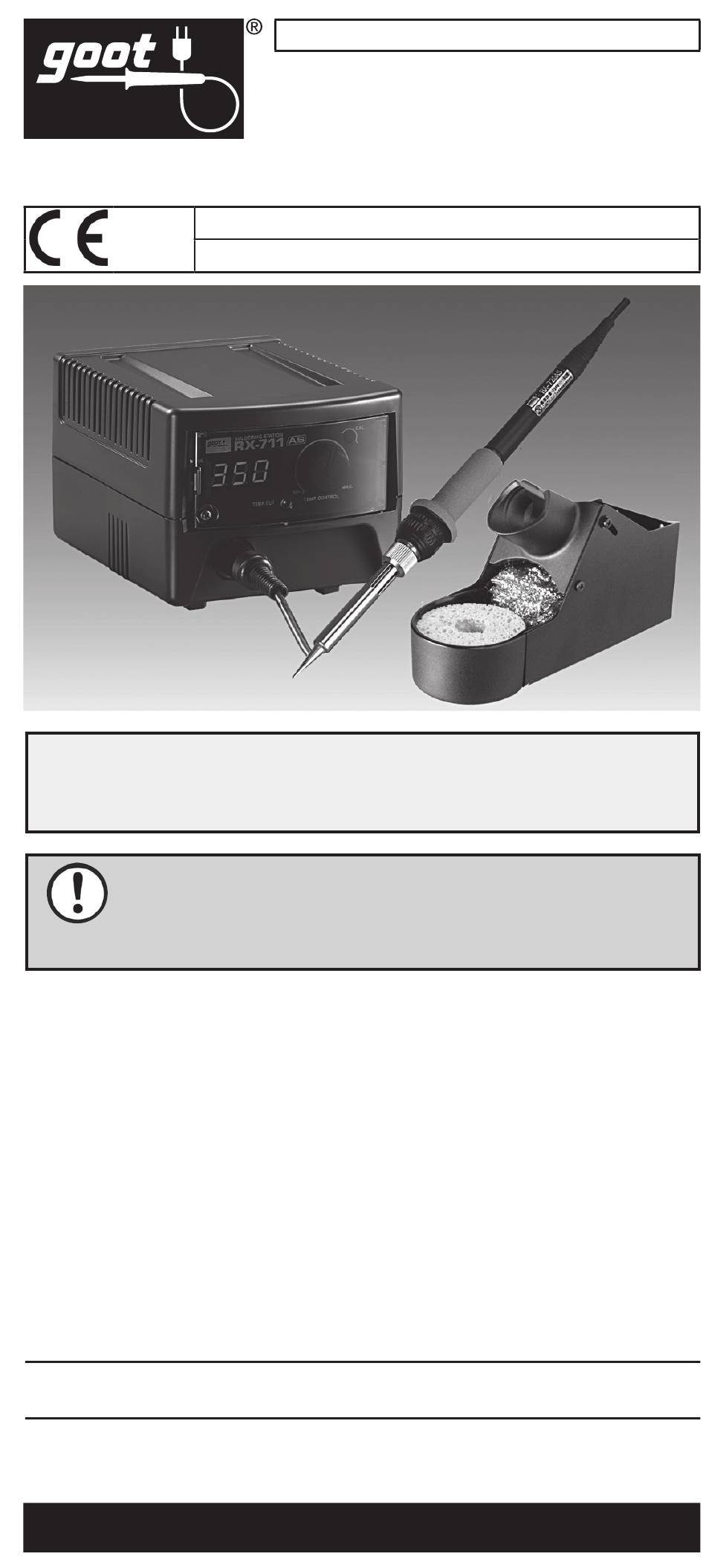

OPERATION MANUAL
TEMPERATURE-CONTROLLED
SOLDERING STATION
RX-701AS/711AS
RX-701AS/22, RX-701AS/23, RX-701AS/24
RX-711AS/22 , RX-711AS/23, RX-711AS/24
RX-711AS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Goot RX-701AS Series
Summary of Contents for Goot RX-701AS Series
-
Page 1: Table Of Contents
RX-701AS/22, RX-701AS/23, RX-701AS/24 RX-711AS/22 , RX-711AS/23, RX-711AS/24 RX-711AS Thank you for buying the goot Soldering Station. Read this Operation Manual before using your sol- dering station. This is a common operation manual for RX-701AS & RX-711AS. Each model number is mentioned in the text. -
Page 2: Safety Mark Definitions
1. SAFETY MARK DEFINITIONS In this manual, the following safety marks are used. WARNING Failure to obey a safety warning could result in serious injury or death to yourself or to others, or in physical damage CAUTION Failure to obey a safety warning could result in injury to yourself or to others, or in physical damage. - Page 3 9. Plug the machine into a grounded 3-prong plug. Make sure that the machine must be grounded at all times to prevent electrical shocks and static electricity. 10. The soldering iron is not intended for use by persons (including children) with reduced physi- cal, sensory or mental capabilities, or lack of experience and knowledge,unless they have been given supervision or instruction concern-...
-
Page 4: Package Contents / Name Of Parts
3. PACKAGE CONTENTS / NAMES OF PARTS ■ Control Box ■制御部 Calibration 温度校正ボリューム Protective Cover Screw (CAL.) （CAL.） 保護カバー Temperature 温度表示 Display （ のみ） RX-711AS (RX-711AS only) Temperature Display 温度表示切換 Changeover Switch スイッチ (RX-711AS only) （ のみ） RX-711AS Temperature 温度設定ツマミ Setting Knob Connector Heat Monitor Lamp... -
Page 5: Operation
4. OPERATION WARNING To prevent fire, do not use the sol- dering station near flammable sub- stances.Failure to obey this warning could result in serious injury or death to yourself or to others. Always place the machine and the soldering iron stand on a stable worktable in a well-ventilated area. - Page 6 Switch the Temperature Display Changeover Switch (at the left of the front panel) to MEAS. Display shows the actual tip temperature. When the Heat Monitor Lamp flashes, the soldering station is ready to use. However if the unit is switched ON again with 1 hour of being switched OFF, and the displayed number is close to “000”, then it is showing the actual tip temperature.
-
Page 7: Maintenance
And be sure that the tip is cooled down. Failure to obey this warning could result in electric shock or serious injury. CAUTION Use only genuine goot replacement parts for maintenance. The use of any other parts may be hazardous and cause dam- age to the unit. - Page 8 Disconnect the Earth Connector from the Earth Pin; remove Earth Pin アースピン the sleeve; remove the entire Earth Connector アースコネクタ assembly, pulling on the Earth Collar. Earth Collar アースーカラー White Lead→ S Desolder the 3 locations of pins for the Yellow Lead →...
-
Page 9: In The Event Of Failure
The factory default tip temperature is 350°C. The thermal difference between the actual measured tip temperature and the displayed temperature is in the range of +/-10°C at 200°C, NOTE and 450°C(RX-701AS only) or 480°C(RX-711AS only). Tip thermometer readings may vary slightly. To prevent any damage to soldering station or other objects, make sure to calibrate the tip temperature after replacement of the tip or heater. -
Page 10: Replacement Tip
8. REPLACEMENT TIP PX-60RT-SB PX-60RT-B PX-60RT-LB PX-60RT-1C PX-60RT-1.5C PX-60RT-2C PX-60RT-3C PX-60RT-4C PX-60RT-0.5CR PX-60RT-0.8CR PX-60RT-1CR PX-60RT-2CR PX-60RT-3CR PX-60RT-4CR PX-60RT-0.8D PX-60RT-1.2D PX-60RT-1.2LD PX-60RT-1.6D PX-60RT-2.4D PX-60RT-3.2D PX-60RT-1.8H PX-60RT-H PX-60RT-3K PX-60RT-5K PX-60RT-R PX-60RT-RT PX-60RT-S4 PX-60RT-SB2 PX-60RT-SI... -
Page 11: Parts List
9. PARTS LIST ① Parts Name Code Note ① Soldering Iron Unit A0883AF00 RX-72GAS ② Heater B0882AH00 RX-72H ③ Black Collar A0880HW00 RX-72GASAD ④ Spacer A0880HS00 RX-72SS ⑤ B0672AB00 PX-60RT-B ⑥ Heater Barrel A0880HP00 RX-72HP ⑦ Collar B1362AJ00 TQ-77NUT... -
Page 12: Soldering Iron Stand St-27 Instructions
SOLDERING IRON STAND ST-27 INSTRUCTIONS WARNING •High temperatures. Handle with care. •To avoid injury, do not touch the metal part of the stand. •To prevent fire, do not use the ST-27 near flammable sub- stances. CAUTION •Always place the stand on a stable worktable, or other stable location, to prevent injury or accident from dropping it. - Page 13 INSTRUCTION FOR USE Rub the soldering-iron tip on the moistened sponge. Use the hole of the sponge for better cleaning. Alternatively, push the soldering-iron tip in and out of the brass wool a few times. Stab, not swipe. • To avoid rust, do not pour water on the brass wool. • Sponge tray and holding flange (of the front opening) are made of phenol.
- Page 16 Printed in Japan, DECEMBER 2019 A0810AL04...
