Raytech WR50-12 Preliminary Instruction Manual page 9

FRONT PANEL DESCRIPTION: (cont.)

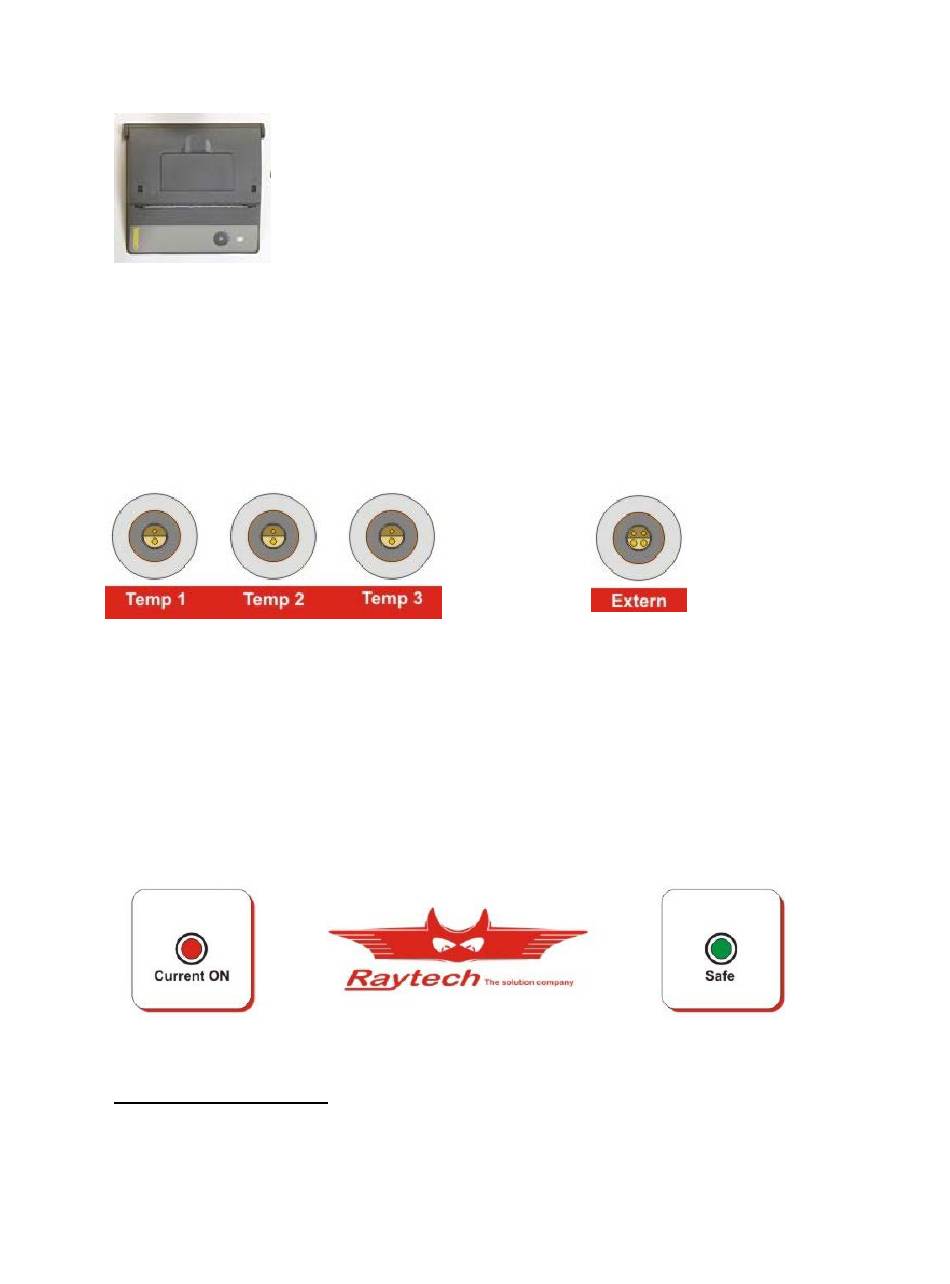

Panel Mount Printer:
* The printer uses thermal heat transfer technology. Therefore, there are no ink cartridges
required or printer heads. Special thermal paper is required for printer to operate properly.
* This panel mount printer allows the user to print out stored results.
* The single button on the printer is for Form-Feed.
* To tear paper, pull paper towards the front of the instrument against the serrated cutting edge.
Temperature Probe connection:
Three 2 pin Connections for optional
external temperature probes ( TP01 )
Danger / Safe Condition Display:
Shows that Current is flowing.
Do not remove any Cable!
Raytech USA, Inc. All rights reserved. No portion may be reproduced without written consent.
External Flashing light:
Connection for an external Flashing
Light or Beeper to indicate a
Dangerous condition.
Working contact (230Vac 2A)
between Pin 3 + 4
Shows that you bought
the right Instrument.
Shows that test Object is
in a Safe condition.
6 – 0
9
