ARCHIVE:

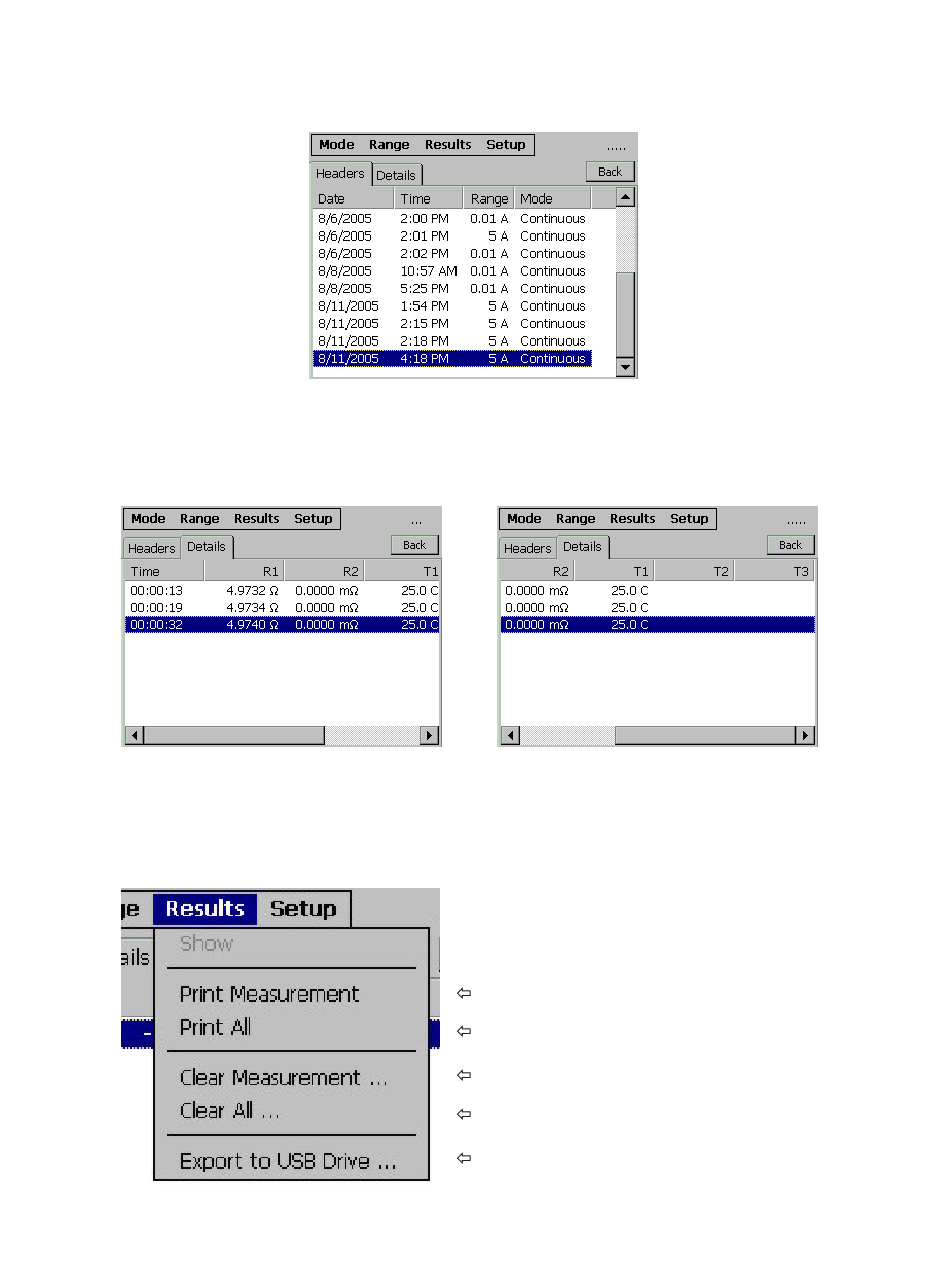

To access the Archive (Memory locations), touch "Results". The next screen will show the
stored records. Touch the Test record to select. Then touch "Details".
The "Headers" column displays the listed stored results.
Saving multiple results during the measuring process stores the data under one header location.
All the stored results linked to a particular header are accessible by touching "Details"
By touching the arrows on the bottom left or right, you will see all the stored results of that
selected measurement. An empty field (ei.. T2) indicates that no temperature probe was plugged
into connector "Temp 2" on the front panel. The column "Time" is the time that has past after
starting the measurement process.
Selecting "Results" you get the following options:
Raytech USA, Inc.
All rights reserved. No portion may be reproduced without written consent.
Print selected Measurements
Print ALL the Measurements
Erase selected Measurement
Erase ALL Measurements
Store the results to an USB-Device
(Removeable USB storage drive)
7 – 2
