Raytech WR50-12 Preliminary Instruction Manual page 12

GETTING STARTED: (cont.) 7 – 1
The WR50-12 incorporates a touch-screen display for all input parameters. All Parameters are
initiated from the "Set up screen: General, Mode, Range, Temp. Corr., and Colors.

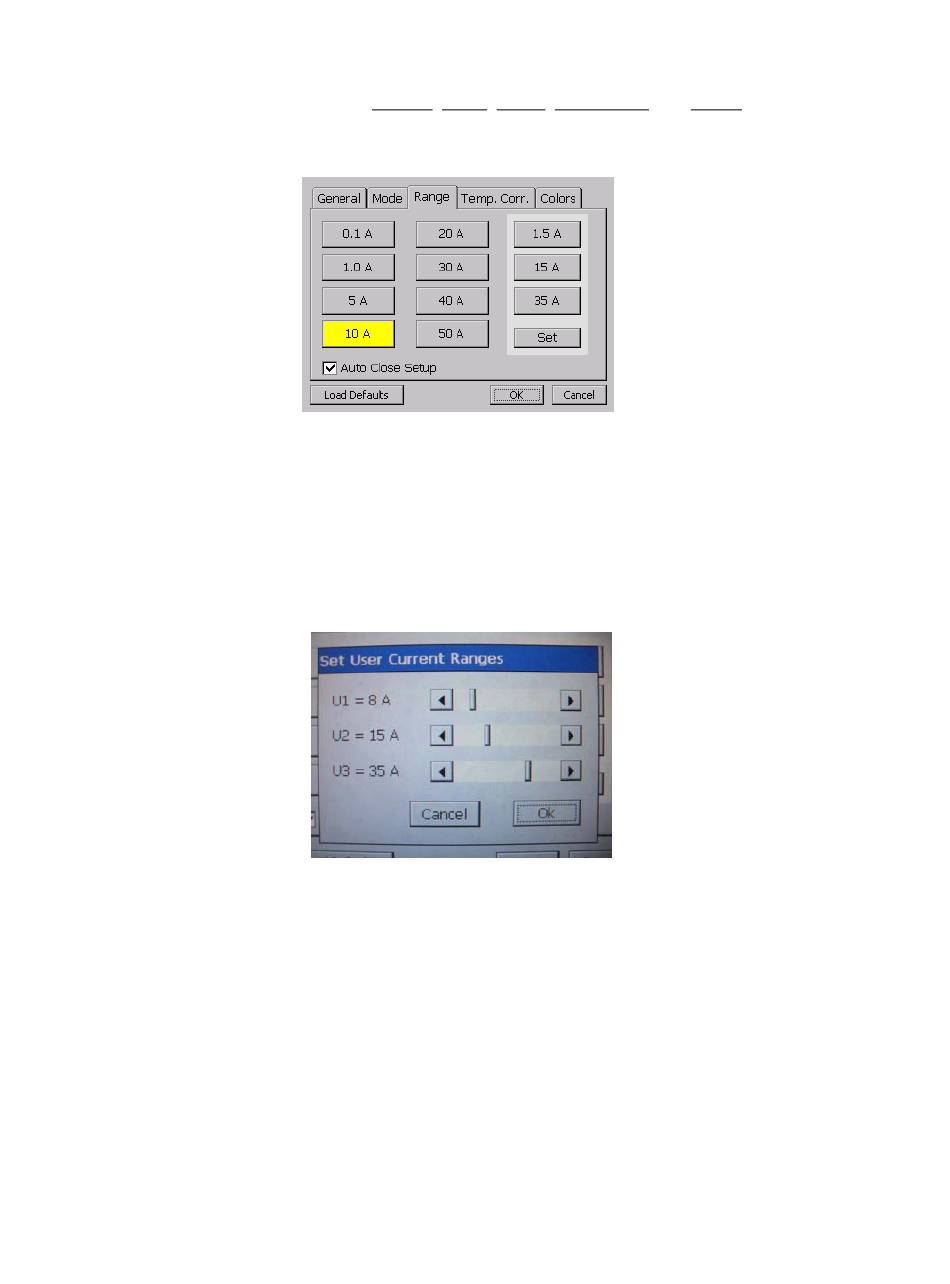

First, select the Current Range level to be used for the measurement by touching "Set up" and
then "Range". The following screen (or similar) appears:
Select the Current level required by tapping on that range ( For example: 10A ). Immediately
after selection of the required current range, the system will revert to the test screen. Start the
measurement by just touching the "Start" Button. At the start of a test an single audible beep
will be heard as a reminder that the test system is about to charge the inductive windings.
Operators should be careful not to remove any cables while the test system is measuring.
* You may also customize the current output range by pressing "Set" on the bottom right hand
side of the screen. The following screen (or similar) appears:
Press the left or right arrows to adjust the current range.
Raytech USA, Inc. All rights reserved. No portion may be reproduced without written consent. 12
