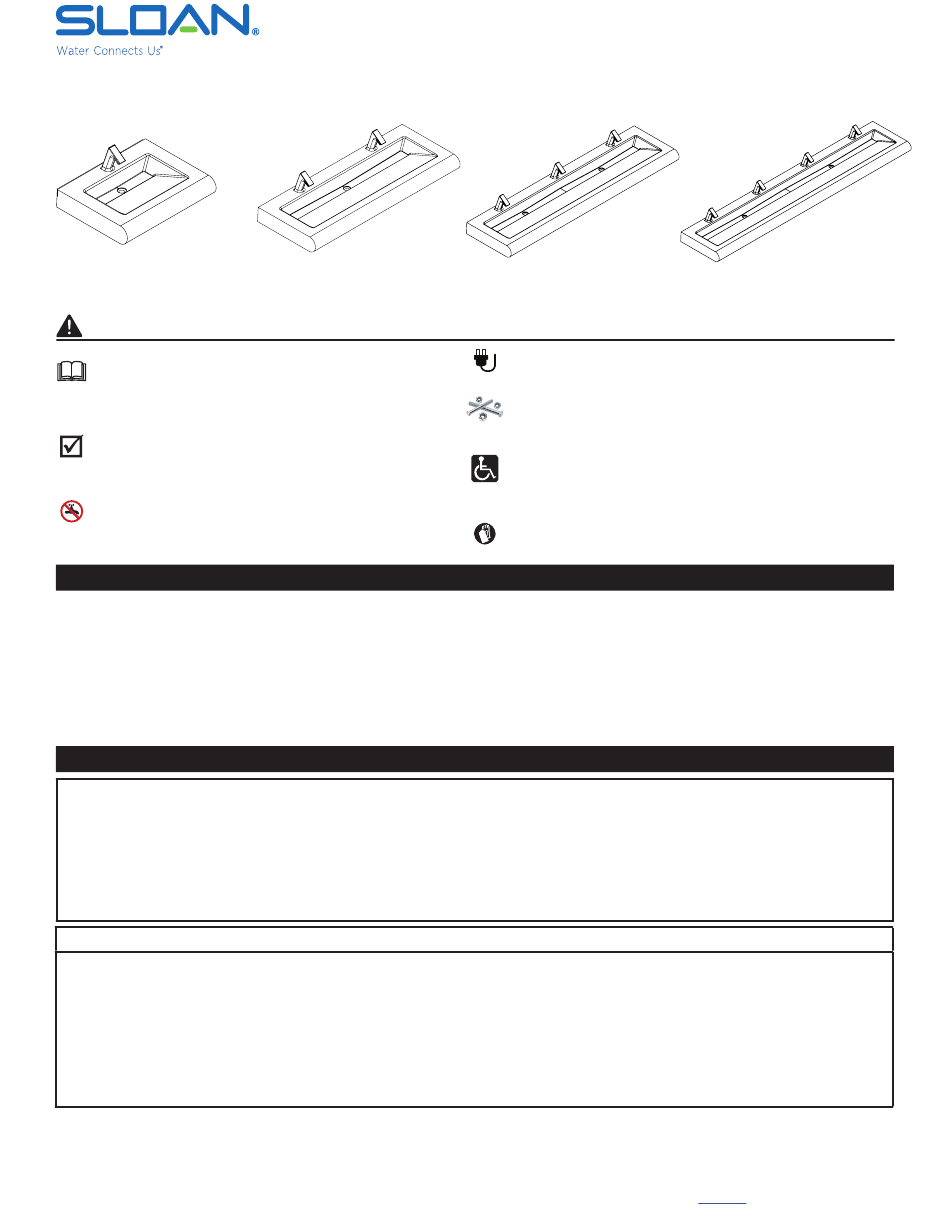

Sloan Stone ELRF-81000 Installation Instructions Manual

Electronic Lavatory Round Front
One, Two, Three, and Four Station
ELRF-81000
Electronic Lavatory System
Important
Read this entire installation manual to ensure proper
installation. When finished with the installation, file this
manual with the owner or maintenance department.
Compliance and conformity to local codes and
ordinances is the responsibility of the installers.
Separate parts from packaging and make sure
all parts are accounted for before discarding any
packaging material. If any parts are missing, do not
begin installation until all parts are obtained.
Make sure that all water supply lines have been
flushed and completely turned off before starting the
installation. Debris in supply lines can cause valves to
malfunction.
Tools and Supplies Required for Installation
• Electric drill for drilling anchor holes
• Standard sockets, basin wrench, and open end wrench set for
installing anchoring fasteners and faucets
• Pipe wrench for installing drain lines
• Phillips and straight blade screwdrivers
• Tubing cutter
• Level
• Carpenter's square
Prior to Installation
Adequate structural support in or behind the wall is required. Refer to the appropriate rough-in diagram for dry weight of sink.
All electrical wiring is to be installed in accordance with national/local codes and regulations. Electrical outlets should be recessed and
installed prior to installation.
All plumbing should be installed in accordance with applicable codes and regulations.
Before connecting flex hoses to supply stops, flush all water lines until water is clear.
Hot and cold water supply lines/tempered supply line and drain lines. Recommended to have Control Stops on water supply lines in
place prior to installation.
Limited Warranty
Unless otherwise noted, Sloan Valve Company warrants its Products to be made of first class materials, free from defects of material or
workmanship under normal use and to perform the service for which they are intended in a thoroughly reliable and efficient manner
when properly installed and serviced, for a period of three years (1 year for SF Faucets, special finishes and PWT electronics and 30 days
on PWT software) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts
which prove to be thus defective if returned to Sloan Valve Company, at customer's cost, and this shall be the sole remedy available
under this warranty. No claims will be allowed for labor, transportation or other incidental costs. This warranty extends only to persons or
organizations who purchase Sloan Valve Company's products directly from Sloan Valve Company for purpose of resale. This warranty
does not cover the life of the batteries.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY
RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
10500 Seymour Ave Franklin Park, IL 60131 | Phone: +1.847.671.4300 / +1.800.982.5839 | Fax: +1.800.447.8329 |
ELRF-82000
Electronic Lavatory System
Copyright © 2018 Sloan. All rights reserved.
ELRF-83000
Electronic Lavatory System
Turn off electrical power to the electrical outlets, then
unplug units prior to installation. Electrical power MUST
remain off until installation is complete.
Installers hardware must be appropriate for wall
construction. Wall anchors and mounting fasteners MUST
have a minimum pull-out rating of 1,000 lbs for 3/8" hole.
For standard height mounting, DO NOT exceed the
recommended 34 inch distance from the top of the sink
deck to the finished floor. To meet ADA requirements
the sink deck cannot not exceed the 34 inch maximum
height dimension.
Wear all proper safety equipment prior to installation
• Caulk gun
• 1/2" NPT hot/cold or tempered supply piping
• 1 1/2" NPT drain piping including p-trap
• Adhesive: Loctite® PL Premium® FAST GRAB Polyurethane
Construction Adhesive, or equivalent
• 110 volt GFCI protected electrical outlet for 100-120 VAC
plug-in transformer
• Screen filter(s) included with faucet(s)
• Backing supplied by others to meet local codes
CAUTION:
Installation Instructions
Code No. 0816150
ELRF-84000
Electronic Lavatory System
Page: 1 of 17
Sloan.com
(03/2018)
