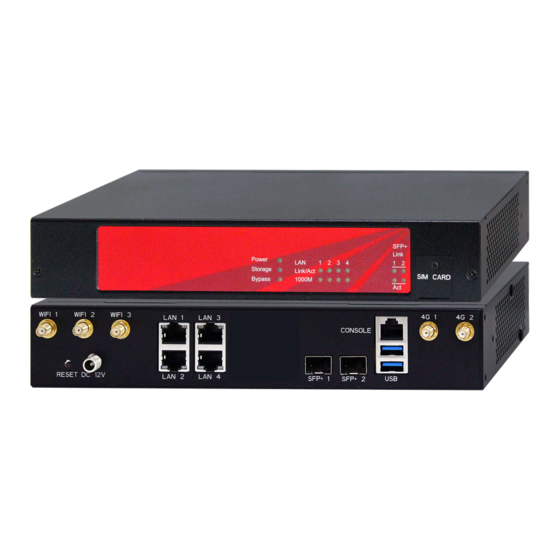

AND-DNV3N1
Networking Micro Box
®
• Intel
Denverton
• 8 or 4 GbE Copper (1-pair bypass)
• 2 SFP+
User Manual
Acrosser Technology Co., Ltd.
www.acrosser.com
®
SoC
AND-DNV3N1 Series
Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AND-DNV3N1Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acrosser Technology AND-DNV3N1Series

Summary of Contents for Acrosser Technology AND-DNV3N1Series

  • Page 1 AND-DNV3N1 Series AND-DNV3N1 Series Networking Micro Box ® ® • Intel Denverton SoC • 8 or 4 GbE Copper (1-pair bypass) • 2 SFP+ User Manual Acrosser Technology Co., Ltd. www.acrosser.com...
  • Page 2 Acrosser Technology Co., Ltd. In no event will Acrosser Technology Co., Ltd. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

    AND-DNV3N1 Series Table of Contents 1. System Introduction ..............5 1.1. Model Description ....................... 5 1.2. Specifications ......................6 1.3. Package Contents ...................... 8 1.4. System Dissection ...................... 9 1.4.1. Dimensions ..................... 9 1.4.2. Front I/O Panel ....................10 1.4.3. Rear I/O Panel ....................11 2.
  • Page 4 Q 1. Where is the serial number located on my system? ..........40 Q 2. How to active the second SIM card SIERRA EM7455/EM7430 ? ......40 Q 3. How to active the second SIM card Quectel EM06-A/EM06-E 4G ? ......40 Acrosser Technology Co., Ltd.

  • Page 5: System Introduction

    AND-DNV3N1 Series System Introduction AND-DNV3N1 is an entry level networking appliance. In a small box, this appliance equip a powerful Intel Atom C3000 SoC. This SoC supports multi-core CPU computing and support QAT, USB 3.0 and LAN controller which can be 10GbE capable. AND-DNV3N1 is an ideal networking appliance for small office.

  • Page 6: Specifications

    Front Panel • 8x Ethernet Link/Act LED • 8x Ethernet 1000M LED • 2x SFP+ Link LED • 2x SFP+ Act LED • 1x Sys Power LED (12V) • 1x Storage LED • 1x LAN Bypass LED Acrosser Technology Co., Ltd.
  • Page 7 AND-DNV3N1 Series Rear Panel • 1x Reset button • 2x USB 3.0 • 1x RJ45 Console port • 2x SFP+(For C3558) • 8x or 4x GbE LAN (Copper) • 5x SMA for WLAN & WWAN (IEEE 802.11 a/b/g/n/ac & 4G LTE) •...

  • Page 8: Package Contents

    • IEC 60068-2-64, 5~500Hz, 3GRMS Drop Test • ISTA-2A 2006 1.3. Package Contents Check if the following items are included in the package. Item Q’ty AND-DNV3N1 System � Power Adapter (12V) � Power Cord � Screw Pack � Acrosser Technology Co., Ltd.

  • Page 9: System Dissection

    AND-DNV3N1 Series 1.4. System Dissection 1.4.1. Dimensions (Unit: mm) www.acrosser.com...

  • Page 10: Front I/O Panel

    LAN 1~8 IEEE802.3 Status LED LED Light Display Green Link with Activity Yellow 1000Mbps • SFP+ 1~2 SFP+ 1~2 Link/Active LED LED Light Display Green LINK LED Yellow ACTIVE LED • SIM CARD Standard SIM Card Socket Acrosser Technology Co., Ltd.

  • Page 11: Rear I/O Panel

    AND-DNV3N1 Series 1.4.3. Rear I/O Panel AND-DNV3N1-04F AND-DNV3N1-4C AND-DNV3N1-4C1 AND-DNV3N1-02 • WIFI 1~3, 4G 1~2 SMA Antenna Hole. Reserved for optional Wi-Fi / BT, 4G LTE antenna. • RESET Reset Button • DC 12V DC12V Power Input www.acrosser.com...
  • Page 12 Green (Blink) Link with Activity 10Mbps Right Yellow 100Mbps Green 1000Mbps • SFP1 ~ SFP2 Standard SFP+ Connector for 10G LAN • Console Console Port (RJ45) Pin # Signal Pin # Signal • Standard USB Port Acrosser Technology Co., Ltd.

  • Page 13: Components Assembly

    AND-DNV3N1 Series Components Assembly Please follow the instruction to install the inner modules. 2.1. SIM Card Installation Step 1: Remove the screw on the SIM Card cover plate. Step 2: Take down the SIM Card cover plate. Step 3: Insert the SIM card . www.acrosser.com...
  • Page 14 Step 4: Push the SIM card into the socket until it docks in locked position. Step 5: Put the the SIM Card cover plate back. Step 6: Lock the SIM Card cover plate with screw . Acrosser Technology Co., Ltd.

  • Page 15: Open Up Top Cover

    AND-DNV3N1 Series 2.2. Open up Top Cover Step 1: Remove the screw that lock the bottom cover. Bottom Cover Step 2: Remove the screws that lock at the front side . Step 3: Push forward the top cover to open it. www.acrosser.com...
  • Page 16 AND-DNV3N1 Series Step 4: Opem up the top cover. Acrosser Technology Co., Ltd.

  • Page 17: Memory Module Installation

    AND-DNV3N1 Series 2.3. Memory Module Installation Step 1: Insert the memory module into the slot. www.acrosser.com...
  • Page 18 AND-DNV3N1 Series Step 2: Push the module down into the slot until it docks in locked position. Acrosser Technology Co., Ltd.

  • Page 19: Wifi Module Installation

    AND-DNV3N1 Series 2.4. 4G & WiFi Module Installation Step 1: Insert the 4G module into socket and lock with screw. Step 2: Connect with RF Cables. www.acrosser.com...
  • Page 20 Step 4: Connect with RF Cables. Step 5: Insert antennas according to the panel allocation . 4G 1, 4G 2 attach with 4G LTE antenna . WiFi 1, WiFi 2, and WiFi 3 attach with WiFi antenna. Acrosser Technology Co., Ltd.

  • Page 21: Hard Disk & Top Cover Installation

    AND-DNV3N1 Series 2.5. Hard Disk & Top Cover Installation Step 1: Install hard disk with screws through the cushsion pad onto the disk bracket . Step 2: Connect with SATA and POWER cables. Step 3: Take care the cables not to tangle with the heatsink. www.acrosser.com...
  • Page 22 AND-DNV3N1 Series Step 4: Close the top cover. Push the top cover inward until it docks into the slot. Step 5: Lock the chassis with screws. Acrosser Technology Co., Ltd.

  • Page 23: Bios Settings

    AND-DNV3N1 Series BIOS Settings This chapter describes the BIOS menu displays and explains how to perform common tasks needed to get the system up and running. It also gives detailed explanation of the elements found in each of the BIOS menus. The following topics are covered: •...

  • Page 24: Advanced Setup

    Serial Port Console Redirection Console port setting. • Network Stack Configuration Network stack setting. • NVMe Configuration Set NVMe device options configuration. • USB Configuration Set USB configuration parameters. • Boot Ooption filter This option controls Legacy/UEFI ROMs priority. Acrosser Technology Co., Ltd.

  • Page 25: Trusted Computing

    AND-DNV3N1 Series • Boot Lan Port Select Select LAN port to boot. 3.2.1. Trusted Computing Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced Platform Configuration Boot Security Save & Exit TPM20 Device Found Enables or Disables BIOS Vendeor: IFX support for security Firmware Version:...

  • Page 26: W83627Dhg Hw Monitor

    F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1266. Copyright (C) 2020 American Megatrends, Inc. Note: Both the console function of RJ45 and micro USB will be disabled if the Console Redirection is set disabled. Acrosser Technology Co., Ltd.

  • Page 27: Console Redirection Settings

    AND-DNV3N1 Series 3.2.4.1. Console Redirection Settings Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced Platform Configuration Boot Security Save & Exit COM0 Emulation: ANSI: Console Redirection Settings Extended ASCII char set. VT100: ASCII char set. Terminal Type [ANSI] VT100+: Extends VT100 to Bits per second...

  • Page 28: Nvme Configuration

    XHCI Hand-off [Enable] →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1266. Copyright (C) 2020 American Megatrends, Inc. Acrosser Technology Co., Ltd.

  • Page 29: Platform Configuration

    AND-DNV3N1 Series 3.3. Platform Configuration Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced Platform Configuration Security Boot Save & Exit Harcuvar Configuration of FIA Mux Platform 0.149.4.64 RC Revision 506F1 Processor BCSP Revision 0000024 Microcode Revision Fia Mux Configuration Processor Configuration Memory Configuration...

  • Page 30: Processor Configuration

    +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1266. Copyright (C) 2020 American Megatrends, Inc. • EIST (GV3) Enable/Disable EIST. • Turbo Enable/Disable CPU Turbo capability. Acrosser Technology Co., Ltd.

  • Page 31: Memory Configuration

    AND-DNV3N1 Series 3.3.3. Memory Configuration Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced Platform Configuration Boot Security Save & Exit DDR memory frequency: Memory Configuration DDR4 up to DDR-2666 ------------------------------------------------------------ DDR3 up to DDR-1867 Memory Information MRC Version 0.149.4.64 Totla Frequency...

  • Page 32: Security Setup

    ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1266. Copyright (C) 2020 American Megatrends, Inc. • Administrator Password Set Administrator Password. Acrosser Technology Co., Ltd.

  • Page 33: Boot Setup

    AND-DNV3N1 Series 3.5. Boot Setup Aptio Setup Utility - Copyright (C) 2020 American Megatrends, Inc. Main Advanced Platform Configuration Security Boot Save & Exit Boot Configuration Enables or disables Quiet Boot Logo Boot option [Enabled] Boot Option Priorities New UEFI OS Boot Option [Default] →←: Select Screen ↑↓: Select Item...

  • Page 34: Save & Exit Setup

    Save Changes and Reset Reset system setup after saving the changes. • Discard Changes and Reset Reset system setup without saving any changes. • Restore Defaults Restore/Load the default values for all the set up options. Acrosser Technology Co., Ltd.

  • Page 35: Software Installation And Programming Guide

    AND-DNV3N1 Series Software Installation and Programming Guide 4.1. Introduction 4.1.1. Environment This test utility develop is based on kernel 4.8 above (Ubuntu 18.04.1 Server 64bit). 4.1.2. GPIO The AND-DNV3N1 series provides GPIO interface. Users can use the GPIO APIs to control GPO Pin.

  • Page 36: File Descriptions

    Get the status of GPIO output pins status. Parameters: This function fills in an integer variable as the parameter. The pin0 ~ pin1 is the status of the output pins. Return Value: 1: HIGH, 0: LOW. Acrosser Technology Co., Ltd.

  • Page 37: Watchdog

    AND-DNV3N1 Series Syntax: Set_gpo(int pin, int value) Description: Set the status of GPIO output value. Parameters: Set value 0 is Low, 1 is High Return Value: If the function sets the values successfully, it returns 0 or -1, any other returned value stands for error. 4.3.2.
  • Page 38 1-4, action: 0: bypass, 1: normal. Return Value: 0: Successful, -1: fail. Syntax: int get_bypass_poweroff_action(int pair) Description: This function can get which pair bypass power off action. Parameters: pair: 1-4. Return Value: 0: bybpass, 1: normal, -1: fail. Acrosser Technology Co., Ltd.

  • Page 39: Notes

    AND-DNV3N1 Series Syntax: int set_bypass_current_action(int pair, int action) Description: This function can set which pair bypass current action. Parameters: pair: 1-4, action: 0: bypass, 1: normal. Return Value: 0: bybpass, -1: fail. Syntax: int get_bypass_current_action(int pair) Description: This function can get which pair bypass current action. Parameters: pair: 1-4.

  • Page 40: Faq

    Q 3. How to active the second SIM card Quectel EM06-A/EM06-E 4G ? • AT+QDSIM=? +QDSIM: (0,1) //List the number of currently supported card slots • AT+QDSIM? +QDSIM: 0 //The current card slot is 1 • AT+QDSIM=1 //Switch to card slot 2 Acrosser Technology Co., Ltd.
  • Page 41 AND-DNV3N1 Series //reboot module • AT+QDSIM? +QDSIM: 1 //Enable SIM error reports • The configuration will be automatically saved to NVRAM. • This function takes effect after restart. www.acrosser.com...
  • Page 42 AND-DNV3N1 Series Technical Support Form We deeply appreciate your purchase of Acrosser products. Please find the “tech_form. doc” file in our utility CD. If you have any questions or problems about Acrosser products, please fill in the following information. We will answer your questions in the shortest time possible.
  • Page 43 Acrosser Headquarters Acrosser Nanjing Office 241新北市三重區光復路一段61巷26號10樓 欣扬通电子有限公司 南京办事处 江苏省南京市江宁区天元东路228号504室 10F., No.26, Ln. 61, Sec. 1, Guangfu Rd., (邮编: 211100) Sanchong Dist., New Taipei City 241, Taiwan Room 504, No. 228, Tian Yuan East Rd., (R.O.C.) Jiang Ning Dist., Nanjing City, Jiangsu Province, TEL: +886-2-29999000 China (Postal: 211100) FAX: +886-2-29992887 / +886-2-29993960...
