Acrosser Technology AND-DNV3N2-04PC User Manual

Networking desktop intel denverton soc 4gbe copper (2-pair bypass) 2gbe copper (or fibber)
Hide thumbs
Table of Contents

Advertisement

Quick Links

AND-DNV3N2
AND-DNV3N2
Networking Desktop
®
®
Intel
Denverton
SoC
4GbE Copper (2-pair bypass)
2GbE Copper (or Fibber)
User Manual
Acrosser Technology Co., Ltd.
www.acrosser.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AND-DNV3N2-04PC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Acrosser Technology AND-DNV3N2-04PC

Summary of Contents for Acrosser Technology AND-DNV3N2-04PC

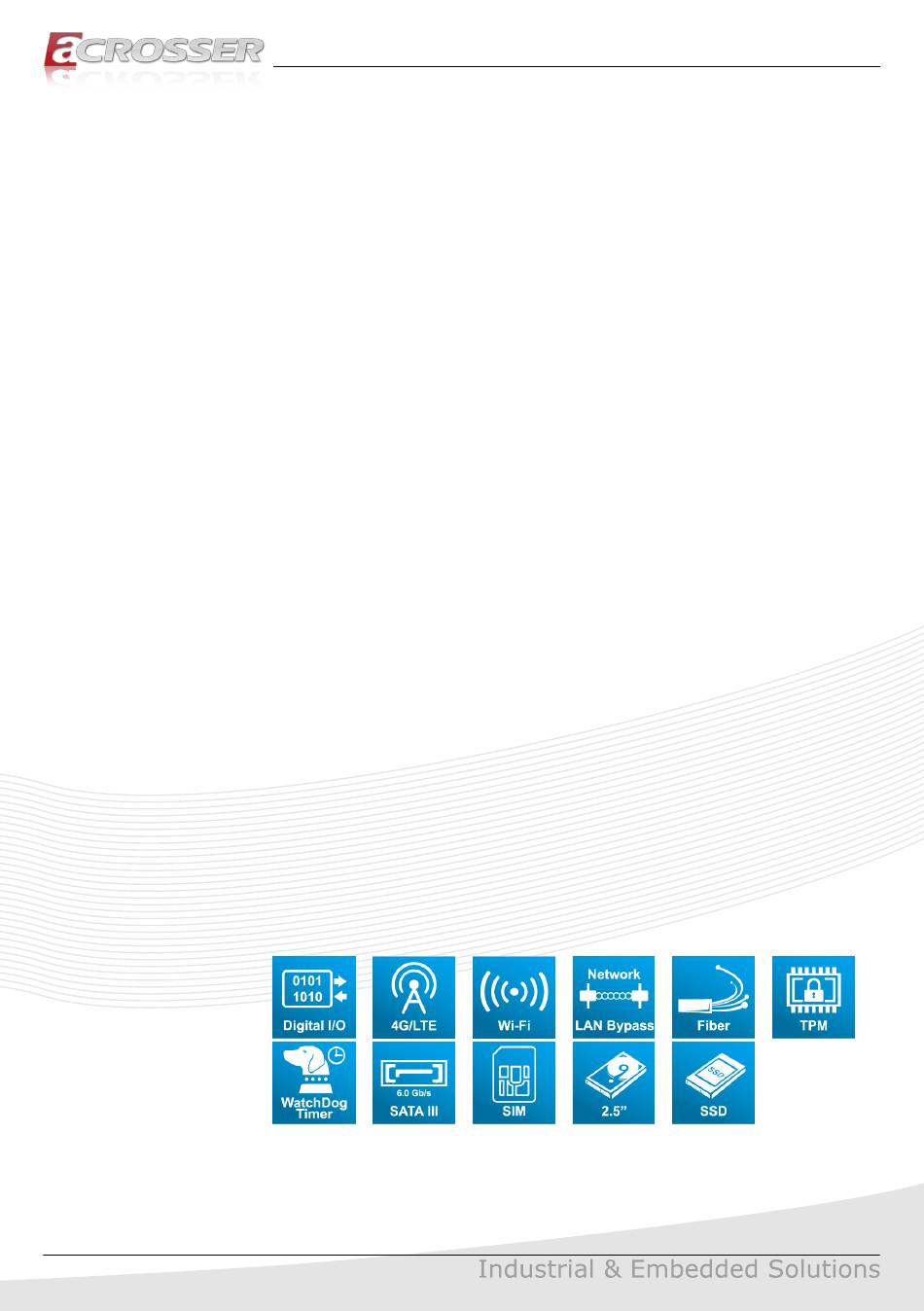

  • Page 1 AND-DNV3N2 AND-DNV3N2 Networking Desktop ® ® Intel Denverton 4GbE Copper (2-pair bypass) 2GbE Copper (or Fibber) User Manual Acrosser Technology Co., Ltd. www.acrosser.com...
  • Page 2 Acrosser Technology Co., Ltd. In no event will Acrosser Technology Co., Ltd. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

    AND-DNV3N2 Table of Contents 1. System Introduction ..............5 1.1. Specifications ......................5 1.2. Package Contents ...................... 7 1.3. System Dissection ...................... 8 1.3.1. Dimensions ..................... 8 1.3.2. Front I/O Panel ....................10 1.3.3. Rear I/O Panel ....................11 2. Components Assembly ............... 12 3.
  • Page 4 4.3.3. LAN Bypass Subsystem ................40 4.3.4. Notes ......................41 5. FAQ ....................42 Q 1. Where is the serial number located on my system? ..........42 Q 2. Why does the system booting take so long? ............42 Acrosser Technology Co., Ltd.

  • Page 5: System Introduction

    • 1x 2.5” Internal HDD Bay, SATA 6.0Gb/s Communication and I/O ® Ethernet • Intel X553 (Marvell 88E1543) (via LAN [3:6]) (Copper) ® • AND-DNV3N2-04PC: Intel i211-AT, LAN[1:2] (Copper) ® • AND-DNV3N2-04PF: Intel i210-AT, LAN[1:2] (Fiber) LAN bypass (2-pair) • LAN bypass by LAN[3:4, 5:6] •...
  • Page 6 Relative Humidity • 10 to 80%, non-condensing Anti-Vibration • IEC 60068-2-64, 5~500Hz, 3GRMS Anti-Shock • 10 G peak acceleration (11 m sec. duration), operation Certification • CE, FCC Class A, RoHS 2 Drop Test • ISTA-2A 2006 Acrosser Technology Co., Ltd.

  • Page 7: Package Contents

    AND-DNV3N2 1.2. Package Contents Check if the following items are included in the package. Item Q’ty AND-DNV3N2-04PC � or AND-DNV3N2-04PF Driver CD � Console Cable � 40W Power Adapter � Power Cord � Screw Pack � SATA & SATA power cable �...

  • Page 8: System Dissection

    AND-DNV3N2 1.3. System Dissection 1.3.1. Dimensions (Unit: mm) AND-DNV3N2-04PC Acrosser Technology Co., Ltd.
  • Page 9 AND-DNV3N2 AND-DNV3N2-04PF www.acrosser.com...

  • Page 10: Front I/O Panel

    AND-DNV3N2 1.3.2. Front I/O Panel ANT1, ANT2 SMA Antenna Hole Reserved for optional Wi-Fi / BT, 4G LTE antenna. LED1~6 LAN1~6 Link/Active LED BP1, BP2 LAN Bypass LED Storage Active LED STATUS Status LED Power LED Acrosser Technology Co., Ltd.

  • Page 11: Rear I/O Panel

    AND-DNV3N2-04PF ANT3, ANT4 SMA Antenna Hole Reserved for optional Wi-Fi / BT, 4G LTE antenna. POWER Power Button LAN1, LAN2 RJ45 LAN Port (AND-DNV3N2-04PC) SFP1, SFP2 SFP LAN Port (AND-DNV3N2-04PF) LAN3~LAN6 RJ45 LAN Port with Bypass USB 3.0 Port CONSOLE...

  • Page 12: Components Assembly

    AND-DNV3N2 Components Assembly Please follow the instruction to install the inner modules. Step 1: Loosen the screw that lock the top cover plate. Step 2: Remove the top cover plate. Acrosser Technology Co., Ltd.
  • Page 13 AND-DNV3N2 Step 3: Disonnect the FAN power connector. Step 4: Loosen the screw that lock the inner bracket. Step 5: Take out the whole module (including the bracket and mainboard). www.acrosser.com...
  • Page 14 AND-DNV3N2 Step 6: Loosen the mainboard screws. Step 7: Flip over the mainboard. Identify the memory slot. Step 8: Install the memory module. Acrosser Technology Co., Ltd.
  • Page 15 AND-DNV3N2 Step 9: Now ready to install your hard disk. Step 10: Put in the yellow washer between hard disk and holder. Step 11: Screw in to hold the hard disk into position www.acrosser.com...
  • Page 16 AND-DNV3N2 Step 12: Install and fasten your WiFi module with screw. Step 13: Connect the WiFi RF cable. Step 14: Lock the mainboard to bracket with screws. Acrosser Technology Co., Ltd.
  • Page 17 AND-DNV3N2 Step 15: Install the WiFi RF cable to the ANT3 hole on chassis. Step 16: Install the WiFi RF cable to the ANT4 hole on chassis. www.acrosser.com...
  • Page 18 AND-DNV3N2 Step 17: Insert the mainboard together with bracket into the chassis. Step 18: Install and fasten your 4G module with screw. Step 19: Connect the 4G RF cable to the 4G module. Acrosser Technology Co., Ltd.
  • Page 19 AND-DNV3N2 Step 20: Connect the FAN power and SATA cable. Step 21: Install the WiFi RF cable to the ANT1 and ANT2 hole on top cover plate. www.acrosser.com...
  • Page 20 AND-DNV3N2 Step 22: Put back the top cover plate into position. Step 23: Lock the bottom cover plate with screws. Acrosser Technology Co., Ltd.
  • Page 21 AND-DNV3N2 Step 24: Install the bracket ears at both side of the bezel with 5 screws. 2 screws at the right side. 3 screws at the left side. www.acrosser.com...

  • Page 22: Bios Settings

    Version 2.19.1266. Copyright (C) 2018 American Megatrends, Inc. Note: Listed at the bottom of the menu are the control keys. If you need any help with the item fields, you can press <F1> key, and it will display the relevant information. Acrosser Technology Co., Ltd.

  • Page 23: Advanced Setup

    AND-DNV3N2 • System Date Set the system date. Use Tab to switch between Date elements. • System Time Set the system time. Use Tab to switch between Time elements. 3.2. Advanced Setup Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc. Main Advanced Security...

  • Page 24: Advanced Setup: Trusted Computing

    TCG_1_2 : the Compatible mode for Win8/Win10. TCG_2 : Support new TCG2 protocol and event. • Physical Presence Spec Version Select to Tell O.S. to support PPI Spec Version 1.2 or 1.3. Note some HCK tests might not support 1.3. Acrosser Technology Co., Ltd.

  • Page 25: Advanced Setup: Serial Port Console Redirection

    AND-DNV3N2 • Device Select TPM 1.2 will restrict support to TPM 1.2 device, TPM 2.0 will restrict support to TPM 2.0 devices, Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2 device will be enumerated. 3.2.2.

  • Page 26: Advanced Setup: Usb Configuration

    Version 2.19.1266. Copyright (C) 2018 American Megatrends, Inc. • Legacy USB Support Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. Acrosser Technology Co., Ltd.

  • Page 27: Advanced Setup: Sdio Configuration

    AND-DNV3N2 3.2.4. Advanced Setup: SDIO Configuration Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc. Advanced Mass Storage Devices: Mass storage device emulation type. 'AUTO' Sdio Device 1 Details enumerates devices less than 530MB as floppies. Bus 0 dev 1c Func 0 Forced FDD option can be MMC - M52516(15.6GB) [Auto]...

  • Page 28: Advanced Setup: Sio Configuration

    Enter: Select VCORE : +0.888 V +/-: Change Opt. VMEM : +1.200 V F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2018 American Megatrends, Inc. Acrosser Technology Co., Ltd.

  • Page 29: Advanced Setup: Lan Bypass Configuration

    AND-DNV3N2 • System Fan For En/Disable System FAN Smart Control. Enabled: FAN is running in accordance with user settings. Disabled: FAN is always running with full speed. • FAN Control Mode Manual Mode: Depends on PWM Duty. Automatic Mode: FAN Speed is depends on CPU Temperature. •...

  • Page 30: Advanced Setup: Power Management

    Select power state when power is re-applied after a power failure. • RTC wake system from S5 Fixed Time : System will wake on the hr :: min :: sec Specified Dynamic Time : System will wake on the current time + Increase minutes(s). Acrosser Technology Co., Ltd.

  • Page 31: Advanced Setup: Digital Io Port Configuration

    AND-DNV3N2 3.2.9. Advanced Setup: Digital IO Port Configuration Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc. Advanced Digital IO Port Configuration Set DIO as Input or Output. DIO Port1 [Output] Output Level [High] DIO Port2 [Output] Output Level [High] DIO Port3 [Output]...

  • Page 32: Security Setup

    F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2018 American Megatrends, Inc. • Setup Administrator Password Set Administrator Password. • User Password Set User Password. Acrosser Technology Co., Ltd.

  • Page 33: Boot Setup

    AND-DNV3N2 3.4. Boot Setup Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc. Main Advanced Security Boot Save & Exit IntelRCSetup Boot Configuration Enables or disables Quiet Boot option Quiet Boot [Enabled] Launch PXE ROM [Disabled] Boot Option Priorities Boot Option #1 [UEFI: Built-in EFI ...] Boot Option #2...

  • Page 34: Save & Exit Setup

    Version 2.19.1266. Copyright (C) 2018 American Megatrends, Inc. • Save Changes and Exit Exit system setup after saving the changes. • Discard Changes and Exit Exit system setup without saving any changes. • Restore Defaults Restore/Load Default values for all the setup options. Acrosser Technology Co., Ltd.

  • Page 35: Intelrcsetup

    AND-DNV3N2 3.6. IntelRCSetup Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc. Main Advanced Security Boot Save & Exit IntelRCSetup Processor Configuration Displays and provides Server ME Configuration option to change the North Bridge Chipset Configuration Processor settings South Bridge Chipset Configuration →←: Select Screen ↑↓: Select Item Enter: Select...

  • Page 36: Intelrcsetup: Server Me Configuration

    ME Firmware Status #2 0X88118020 →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2018 American Megatrends, Inc. Acrosser Technology Co., Ltd.

  • Page 37: Intelrcsetup: North Bridge Chipset Configuration

    AND-DNV3N2 3.6.3. IntelRCSetup: North Bridge Chipset Configuration Aptio Setup Utility - Copyright (C) 2018 American Megatrends, Inc. IntelRCSetup North Bridge Chipset Configuration Memory Information MRC Version 0.149.4.43 Total Memory 4096 MB Memory Frequency DDR4 - 1866 MHz →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt.

  • Page 38: Software Installation And Programming Guide

    LAN Bypass APIs to control the bypass states of the LAN ports. 1. Set bypass wdt action. 2. Get bypass wdt action. 3. Set bypass power on action. 4. Get bypass power on action. 5. Set bypass power off action. 6. Get bypass power off action. Acrosser Technology Co., Ltd.

  • Page 39: File Descriptions

    AND-DNV3N2 4.2. File Descriptions 4.2.1. GPIO/Watchdog/LAN Bypass Subsystem 1. TestUtility.exe The Watchdog, LAN Bypass Subsystem, GPIO bin binary. 2. Libw83627.h This file includes the declarations of the APIs and macro definitions. 3. Libw83627.a The static library for linux. 4. Libw83627.so The dynamic library for linux.

  • Page 40: Watchdog

    1-2, action: 0: bypass, 1: normal, time: 0-255. Return Value: 0: Successful, -1: fail. Syntax: int get_bypass_wdt_action() Description: This function can bypass Wdt time up action. Parameters: pair: None. Return Value: 0: bybpass, 1: normal, -1: fail. Acrosser Technology Co., Ltd.

  • Page 41: Notes

    AND-DNV3N2 Syntax: int set_bypass_poweron_action(int pair, int action) Description: This function can set which pair bypass power on action. Parameters: pair: 1-2, action: 0: bypass, 1: normal. Return Value: 0: Successful, -1: fail. Syntax: int get_bypass_poweron_action(int pair) Description: This function can get which pair bypass power on action. Parameters: pair: 1-2.

  • Page 42: Faq

    Memory size 16G*2: It takes 3 minutes for the first start up, or about 1 minute to restart without removing the memory. Memory size 8G*2: It takes 1 minute and 30 seconds for the first start up, or about 30 seconds to restart without removing the memory. Acrosser Technology Co., Ltd.
  • Page 43 AND-DNV3N2 Technical Support Form We deeply appreciate your purchase of Acrosser products. Please find the “tech_form. doc” file in our utility CD. If you have any questions or problems about Acrosser products, please fill in the following information. We will answer your questions in the shortest time possible.
  • Page 44 Acrosser Headquarters Acrosser Nanjing Office 欣扬通电子有限公司 南京办事处 241新北市三重區光復路一段61巷26號10樓 江苏省南京市江宁区天元东路228号504室 10F., No.26, Ln. 61, Sec. 1, Guangfu Rd., (邮编: 211100) Sanchong Dist., New Taipei City 241, Taiwan Room 504, No. 228, Tian Yuan East Rd., Jiang (R.O.C.) Ning Dist., Nanjing City, Jiangsu Province, China TEL: +886-2-29999000 (Postal: 211100) FAX: +886-2-29992887 / +886-2-29993960...
