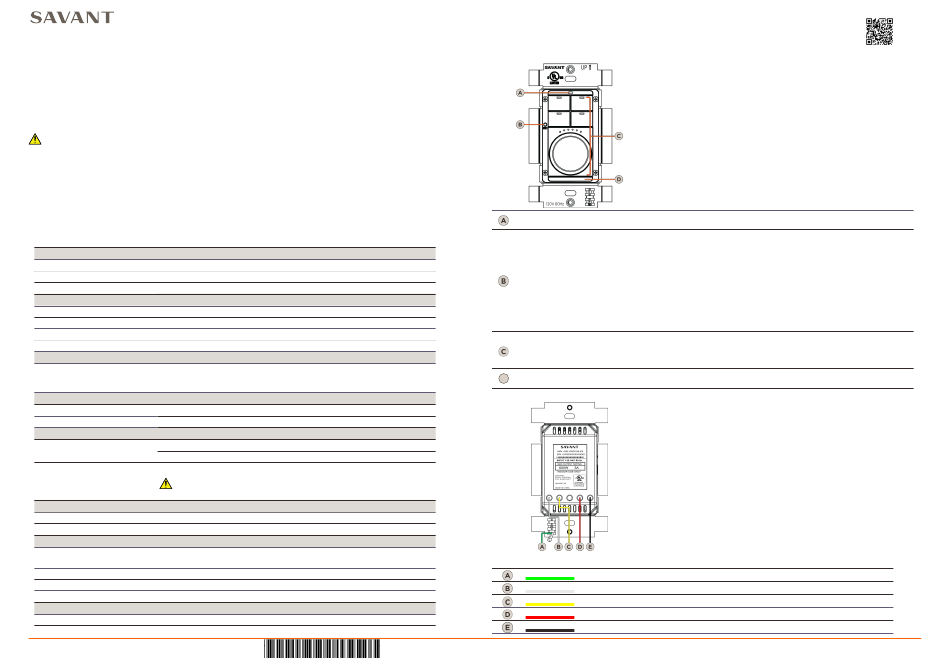

Savant WIK 104 Series Quick Reference Manual

Metropolitan Wireless Keypad - WIK-xxx104
Quick Reference Guide

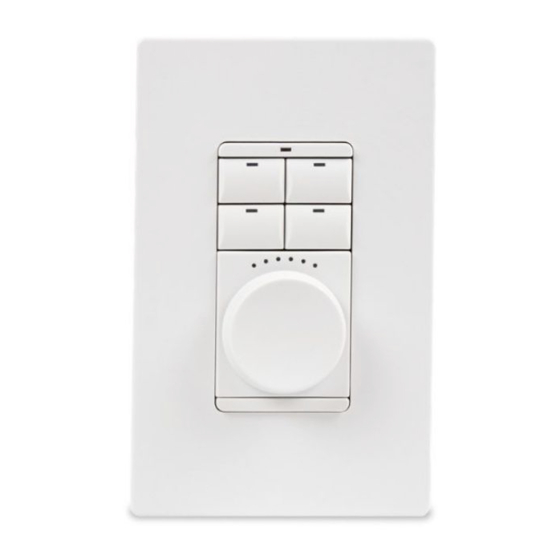

The WIK-SWS104 (snow white) and WIK-LAS104 (light almond) wireless keypads are specifically designed to function within the Savant
Control system to switch most lighting loads. This includes dimmable incandescent, electronic low voltage, dimmable CFL, and
dimmable LED lamps. The keypads incorporate a push button rotary dial as well as four additional buttons to allow a user more
flexibility to control other functions such as audio, video, and shades in a Savant Control system.
The Savant wireless keypads replace any standard 120V AC light switch or dimmer and can be wired into either a standard or no neutral
configuration. With the addition of the Savant Auxiliary Control, the Savant wireless keypads can accommodate most 3-way wiring
designs for multi-location control.
Finally, the Metropolitan Keypads communicate with most 802.11 b/g/n wireless networks. Once communicating with the local LAN, the
keypad can be added to the Savant Control system for complete control of lighting as well as other switching and dimming functions.
IMPORTANT! Using this product in a manner that is not consistent with this document will void your warranty
Box Contents
Metropolitan Keypad without faceplate
•
(2) Mounting Screws 6/32 x ¾ inch
•
(5) Wire Nuts
•
Quick Reference Guide (this document)
•
Optional Accessories
1 to 4-gang faceplates
•
Black conversion kits
•
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Location Indoor Use Only
Dimensions Dimensions
Height 4.13 in (10.49 cm) / Shipping 7.0 in (17.78 cm)
Width 2.38 in (6.05 cm) / Shipping 4.5 in (11.43 cm)
Depth 2.10 in (5.33 cm) / Shipping 3.0 in (7.62 cm)
Weight (Shipping) 0.60 lb (0.272 kg)
Recommended Back Box Depth Dimensions Recommended Back Box Depth Dimensions
All Metro keypads require a standard U.S. electrical back box All Metro keypads require a standard U.S. electrical back box
• Recommended - 3.5 in (8.89 cm) deep • Recommended - 3.5 in (8.89 cm) deep
• Minimum - 2.25 in (5.72 cm) deep • Minimum - 2.25 in (5.72 cm) deep
Power Power
Input 120V AC at 60 Hz
Load Power (Max) 600W 5A @ 120V AC (See
Load Type Information Load Type Information
Supported - Incandescent, Electronic Low Voltage, Dimmable CFL, Dimmable LED
Standard Configuration Standard Configuration
Not Supported - Magnetic Low Voltage
Incandescent only (Minimum load = 25 Watts)
No Neutral Configuration
WARNING: Using the keypad in a No Neutral configuration with loads other than
incandescent can overheat the device and cause damage.
Standards Standards
Wireless 802.11 b/g/n
Security WPA1™, WPA2™, WPA1 + WPA2™, WEP
Regulatory Regulatory
FCC Part 15 | UL
Safety and Emissions
For more details, refer to the
Contains FCC ID: TLZ-CU277
Contains IC: 6100A-CU277
RoHS Compliant
Minimum Supported Release Minimum Supported Release
Savant® OS da Vinci® 7.2.1
Metropolitan Wireless Keypad | 009-1339-03 | 150624
Copyright © 2015 Savant Systems, LLC
Derating Table)
Regulatory section
Front View
Ambient Light Sensor - Detects the level of ambient light in the room and adjusts the LED brightness on the front panel.
The ambient light sensor operation can be modified using RacePoint Blueprint®.
Reset Button - The reset button has two functions:
• Press and release the reset button. After button is released, all LEDs on the front panel illuminate for about six-seconds
and then flash twice. Pressing the reset button causes the keypad to test the load characteristics and determine the best
phase for the attached load as well as determine the control parameters for the no neutral operation. After the reset
operation tests these parameters, the keypad reboots. After the reboot, the LED sequencing displayed on the top two
buttons is determined by whether the device had previously been connected to a network. Refer to
table.
Note: The reset button should always be pressed after the Metropolitan device is installed.
• Press and hold the reset button for five seconds until all LEDs on the front panel illuminate. The LEDs will remain on for
two seconds and then flash twice. The keypad then reboots and reverts to Provisioning Mode. In Provisioning Mode, the
two LEDs associated with the top two buttons will flash in an alternating pattern waiting to be provisioned. Refer to
Sequencing table.
Keypad Buttons - Four buttons and one rotary dial allow for the control of up to five devices. The rotary dial button includes
six indicator LEDs that track to the brightness of the load. Once configured in Blueprint, the LEDs show the scene state.
Each button includes a dual purpose LED. When configured through Blueprint, the LEDs track the scene states. When not
configured, they are used as indicators when attaching the keypad to a local network. Refer to the
Service Switch - The service switch disconnects power from the load (red wire). Toggle the service switch to Off whenever
D
changing the load. The service switch can also be used to power cycle the keypad.
Rear View
Device wires
are all a five inch #16 AWG stranded wire.
Green
Ground - Wire to Gnd.
White
Neutral - Return path for voltage.
Yellow
Traveler - Wire to one or more Auxiliary Controllers for multi-location control.
Red
Load - Wire to the load.
Black
Line - Wire to hot wire from AC power source.
1 of 2
For Product Info
LED Sequencing
LED
LED Sequencing table.
