Echo and Metropolitan Style Low Voltage Keypads (V2) - Quick Reference Guide
Box Contents
(WPB/WIB-xxLV02V2, WPK/WIK-xxLV05V2)
(1) Keypad (faceplate not included)
(1) 5-pin Cable Control Station Pigtail (064-0456-xx)
(1) Quick Reference Guide (this document)
Box Contents
(WPB/WIB-xxLV06V2)
(1) Keypad (faceplate not included)
(1) 5-pin Cable Control Station Pigtail (064-0456-xx)
(2) Double Height Keypad Buttons (074-0927-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Location Indoor Use Only
Pollution Degree 2
Dimensions and Weights
Length
WPB-xxLV06V2
4.13 inch
WPB-xxLV02V2
(10.50 cm)
WIB-xxLV02V2
WIB-xxLV06V2
WPK-xxLV05V2
4.13 inch
(10.50 cm)
WIK-xxLV05V2
7.0 inch
Shipping
(17.78 cm)
HELPFUL! The variation in the depth measurement for the
WPK and WIK is due to the dial on the front face.
Installation
Operating Control Continuous
Operating Time Type 1 action
Independently mounted for flush mounting (vertical position only)
Savant recommends as a minimum:
– An open-backed low voltage bracket installed on the interior
walls and a closed-back electrical box on exterior walls.
– An installation depth of at least 1
Power
Input 24V DC SELV
Power Average: 0.5 watts
Rated Impulse
330 V
Voltage
Standards
Bluetooth Bluetooth Low Energy (BLE)
Wi-Fi 802.11 a/b/g/n (2.4 and 5GHz)
Security WPA™, WPA2™, WPA1™+WPA2™, WEP
Regulatory
Safety and
FCC Part 15
Emissions
Contains FCC ID: PUU-KEYPADSG2A
Contains IC 10798A-KEYPADSG2A
RoHS Compliant
Minimum Supported Release
da Vinci 10.4
Echo and Metropolitan Style Low Voltage Keypads QRG (V2)
Copyright© 2023 Savant Systems, Inc. | 009-2230-04 | 231212
Width Depth Weight
.18 lb.
(0.08 kg)
1.72 inch .97 inch
(4.37 cm) (2.46 cm)
.15 lb.
(0.07 kg)
1.72 inch 1.24 inch .17 lb.
(4.37 cm) (3.15 cm) (0.07 kg)
4.5 in. 3.0 in. .42 lb.
(11.43 cm) (7.62 cm) (0.19 kg)
1/4
inches (3.2 cm).
Maximum: 2.4 watts
CE Mark
Products
Paddle Keypad (WPB-xxLV02V2-xx, WIB-xxLV02V2-xx)
Dial Keypad (WPK-xxLV05V2-xx, WIK-xxLV05V2-xx)
Configurable Keypad (WPB-xxLV06V2-xx, WIB-xxLV06V2)

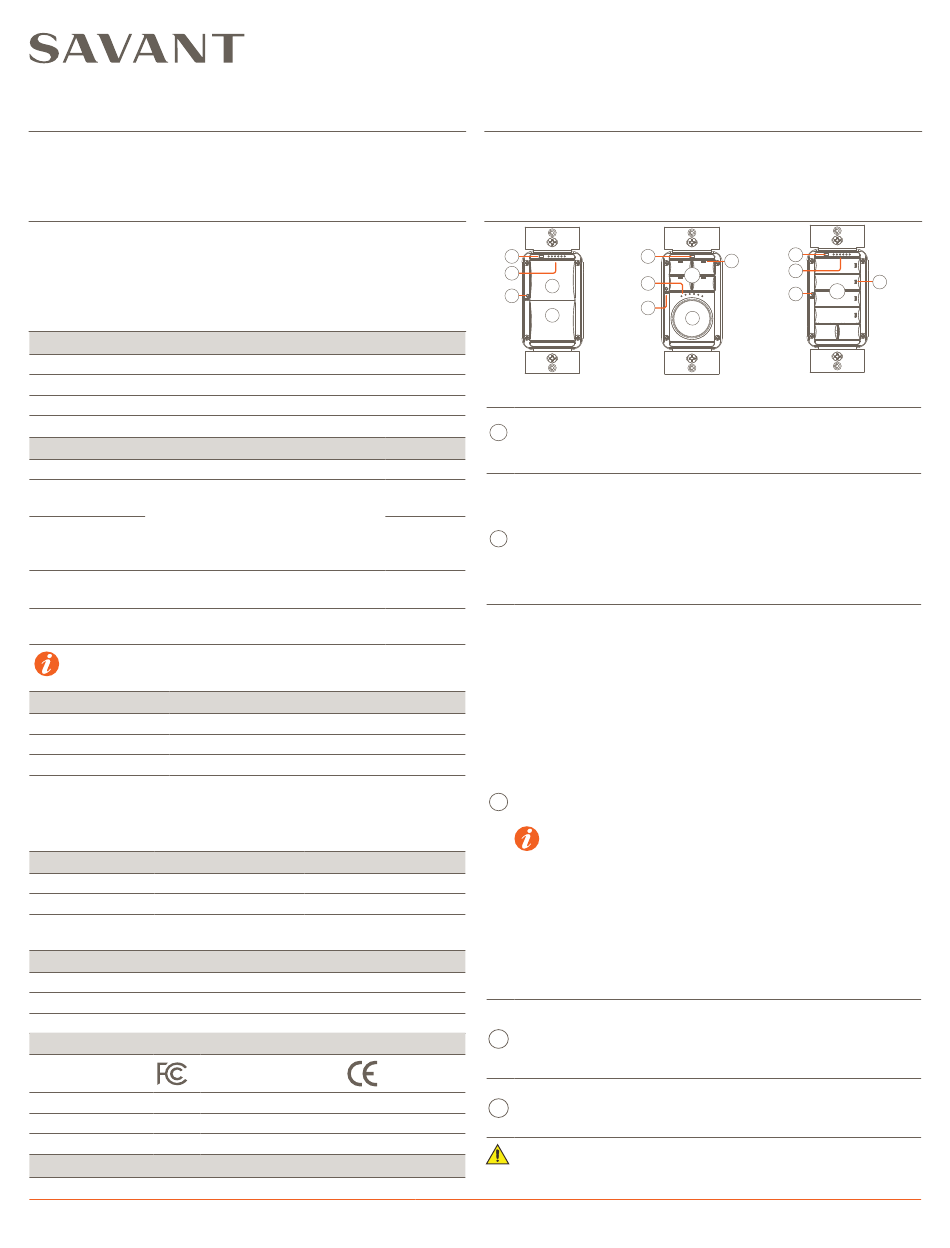

Front Panel
A
B
D
C
D
WPB-xxLV02V2
WIB-xxLV02V2
Ambient Light Sensor - Detects the ambient light level
A
in the room and adjusts the brightness of the button
and dimming LEDs. The ambient light sensor is enabled/
disabled from the Lighting and Shade manager in Blueprint.
Dimming Level Indicators - The LED Array on the front
panel can indicate any of the following:
– The LEDs turn on from left to right as the dimmer level
increases and switch off from right to left as the dimmer
level decreases.
B
– The amount of power applied to the load for any scenes
created in Blueprint or the Savant app.
– The status of the keypad during the setup and
provisioning process. See the
Reset Button
(Press and release) -
– Clear the configuration programmed in the keypad and
remove Switch Mode (when applicable.)
– Force the keypad to determine and configure control
parameters for no neutral operation (when applicable.)
–
If in RAD (Roaming Assisted Discovery)
– Primary: Sends "End RAD" message and restarts all
active RAD devices.
– Subordinate Broadcast: Ceases broadcasting RAD
messaging and restarts device.
C – Subordinate: Ceases RAD discovery and restarts
device.
HELPFUL! For more information on RAD specific LED
sequences, refer to the Roaming Assisted Discovery
(RAD) Wireless Provisioning Guide.
TIP: Press and release the reset button after installing,
moving, or changing any load wired to the keypad. In some
cases, pressing and releasing the reset button will fix issues
such as flickering or when the load not performing optimally.
Press and hold - Press and hold for 5 seconds, then release to
perform a factory reset. A factory reset erases the keypad's
stored address.
Buttons - Programmable buttons. See the Low Voltage
Deployment Guide for instructions on how to program. This
D
guide and other lighting information are available on the
Keypad Lighting Documentation Portal in the
Community.
Button LEDs - When configured and bound to a Savant
system, the LED's state gets defined by the selection made
E
in the LED Behavior and LED Color fields from within the
Lighting and Shade Manager.
IMPORTANT NOTE:
Not supported as a BLE Gateway.
1 of 4
A
A
E
B
D
B
C
C
D
WPK-xxLV05V2 WPB-xxLV06V2
WIK-xxLV05V2 WIB-xxLV06V2
LED Sequencing
Press and release the reset button to:
Savant Customer
45 Perseverance Way, Hyannis MA 02601.
savant.com
E
D
section.
