Savant Metropolitan WIK 104 Series Quick Reference Manual

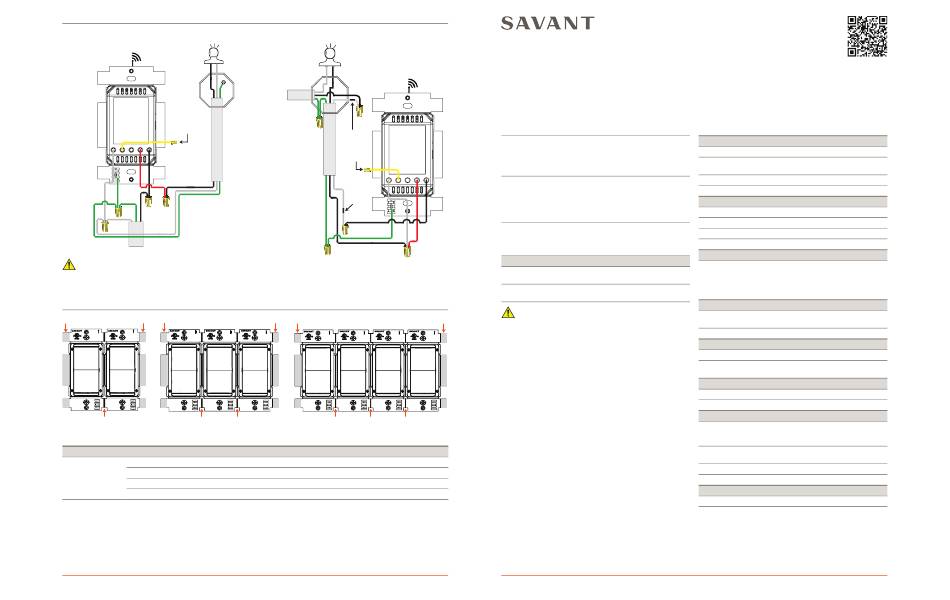

Wiring Diagrams

The diagrams below display how to wire the Metropolitan style keypad. Any unused wires must have the bare wire portion (stripped
end) cut off and the wire must be capped with a wire nut.
Single Dimmer Installation Example
Cap if
Unused
From

Power

WARNINGS:

– Using the dimmer in a No Neutral confi guration with loads other than incandescent is not supported.
– In a No Neutral confi guration, if the type of load installed is not supported by the dimmer, the dimmer will not supply power
to the load and the six dimmer LEDs on the front of the dimmer will blink rapidly.

Multi-Gang Installations

When combining multiple keypads into a multi-ganged box, derating is required per table below. Remove the outside tabs from one
or both sides of each device so they all fi t into the electrical switch box. Below are examples of 2, 3 and 4-gang scenarios.
UP UP UP
UP
120V 60Hz 120V 60Hz 120V 60Hz 120V 60Hz 120V 60Hz
– Tabs are removed from both sides of the inside gang devices.
– Tabs are NOT removed from outside edges of the devices at the end of each gang.

Derating Table

Device Load Type 1-Gang
Incandescent 600W
CFL/LED 150W
Adaptive Dimmer
Magnetic Low Voltage 600VA (450W)
Electronic Low Voltage 450W
Metropolitan Wireless Keypads and Dimmers 4
009-1436-04 | 181212
No Neutral Dimmer Installation Example
FROM
POWER
Black
Tape
Cap if
Unused
Black
Tape
UP UP UP UP UP
120V 60Hz 120V 60Hz 120V 60Hz 120V 60Hz
2-Gang 3-Gang 4-Gang
550W 500W 500W
150W 150W 150W
550VA (400W) 500VA (375W) 500VA (375W)
400W 375W 375W
of 4 Copyright © 2018 Savant Systems, LLC
Metropolitan Wireless Keypads and Dimmers
Quick Reference Guide
The Metropolitan wireless keypads and Dimmers are specifi cally designed to function within a Savant Control system to switch
most lighting loads. This includes incandescent, magnetic and electronic low voltage, dimmable CFL, and dimmable LED lamps.
The Savant wireless keypads replace any standard 120V AC light switch or dimmer and can be wired into either a standard or
no neutral confi guration. With the addition of the Savant Auxiliary Control, these keypads can accommodate most 3-way wiring
designs for multi-location control.
Finally, these Keypads and Dimmers utilizes the local 802.11 b/g/n wireless network to allow it to be added to the Savant Pro System
for complete control of lighting as well as other switching and dimming functions.

Products

Adaptive Dimming

Metropolitan Wireless Keypad (WIK-xxx104)
Metropolitan Wireless Dimmer (WID-xxx102)

Box Contents

(1) Keypad/Dimmer without faceplate
(2) Mounting Screws
(5) Wire Nuts
(1) Quick Reference Guide (this document)
Additional Documentation
Installation and Calibration (009-1459-xx)
Programming Guide (009-1461-xx)
Provisioning Guide (009-1460-xx)
Front Assembly Conversion (009-1376-xx)

Supported Load Types

Standard Incandescent, Electronic/Magnetic Low
Confi guration Voltage, Dimmable CFL, Dimmable LED
No Neutral Incandescent only
Confi guration (minimum load = 25Watts)
WARNING! Using a keypad in No Neutral confi guration
with loads other than incandescent is not supported.
Metropolitan Wireless Keypads and Dimmers 1
009-1436-04 | 181212
For Product Info
Specifi cations
Environmental
Temperature 32° to 104° F (0° to 40° C)
10% to 90% Relative Humidity
Humidity
(non-condensing)
Location Indoor Use Only
Pollution Degree 2
Dimensions
Height 4.13in (10.49cm) Shipping 7.0in (17.78cm)
Width 2.38in (6.05cm) Shipping 4.5in (11.43cm)
Depth 2.08in (5.28cm) Shipping 3.0in (7.62cm)
Weight Shipping 0.60lb (0.272kg)

Recommended Back Box Depth

All Metropolitan Dimmers and switches require a standard U.S.
electrical back box.
– Recommended - 3.5 in (8.89 cm) deep
– Minimum 2.25 in (5.72 cm) deep
– Type 1 enclosure for control
Installation
Operating
Type 1.B action
Control
Software Class A
Power
Input 120V AC at 60 Hz
Power:
600W 5A @ 120V AC (See Derating Table)
Load (Max)

Standards

Wireless 802.11 b/g/n 2.4 GHz (only)
Security WPA™, WPA2™, WPA1™ +WPA2™, WEP
Regulatory
FCC Part 15 | UL
Safety and
For more details, see the Regulatory and
Emissions
Safety insert.
Contains FCC
TLZ-CU277B
ID:
Contains IC: 6100A-CU277B
RoHS Compliant
Minimum Supported Release
da Vinci Blueprint 8.2
