Savant WP3 0002 Series Quick Reference Manual

Wireless Keypad Auxiliary Control Quick Reference Guide

Box Contents

(1) Auxiliary Control without faceplate (WP3-xx0002-xx)
or
(1) Auxiliary Control without faceplate (WI3-xx0002-xx)
(2) 6-32 inch pan head mounting screws
(3) Wire nuts
(1) Quick Reference Guide (this document)

Specifications

Environmental
Temperature 32° to 104° F (0° to 40° C)
10% to 90% Relative Humidity
Humidity
(non-condensing)
Location Indoor Use Only
Dimensions
Height
WP3-xx0002 4.13 in.
WI3-xx0002 (10.50 cm)
7.0 in.
Shipping
(17.78cm)
Recommended Back Box Depth
Keypads require a standard U.S. electrical back box.
– Recommended - 3.5 in (8.89 cm) deep
– Minimum 2.25 in (5.72 cm) deep
– Type 1 enclosure for control

Installation

Operating
Type 1.B action
Control
Power
Input 120V AC, 60Hz on Neutral wire (White)
Rated impulse
2500V
voltage
Regulatory
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
None
Wireless Keypad Auxiliary Control | 009-1759-05
Copyright © 2020 Savant Systems, Inc. | 201006
Width Depth Weight
2.36 in. 1.57 in. .30 lb.
(6.00cm) (3.99cm) (.136 kg)
4.5 in. 3.0in 0.60lb
(11.43cm) (7.62cm) (0.27 kg)
UL

Product Description

A companion to Savant's wireless dimmers and switches, the
Auxiliary Keypad allows control of a single load from multiple
locations, similar to a 3-way switch. Auxiliary Keypads are
connected to a Savant Wireless Keypad via a traveler wire that
sends control signals from the Aux keypad to the Wireless keypad,
which then relays the command over Wi-Fi. Auxiliary Keypads are
not connected to the local network directly

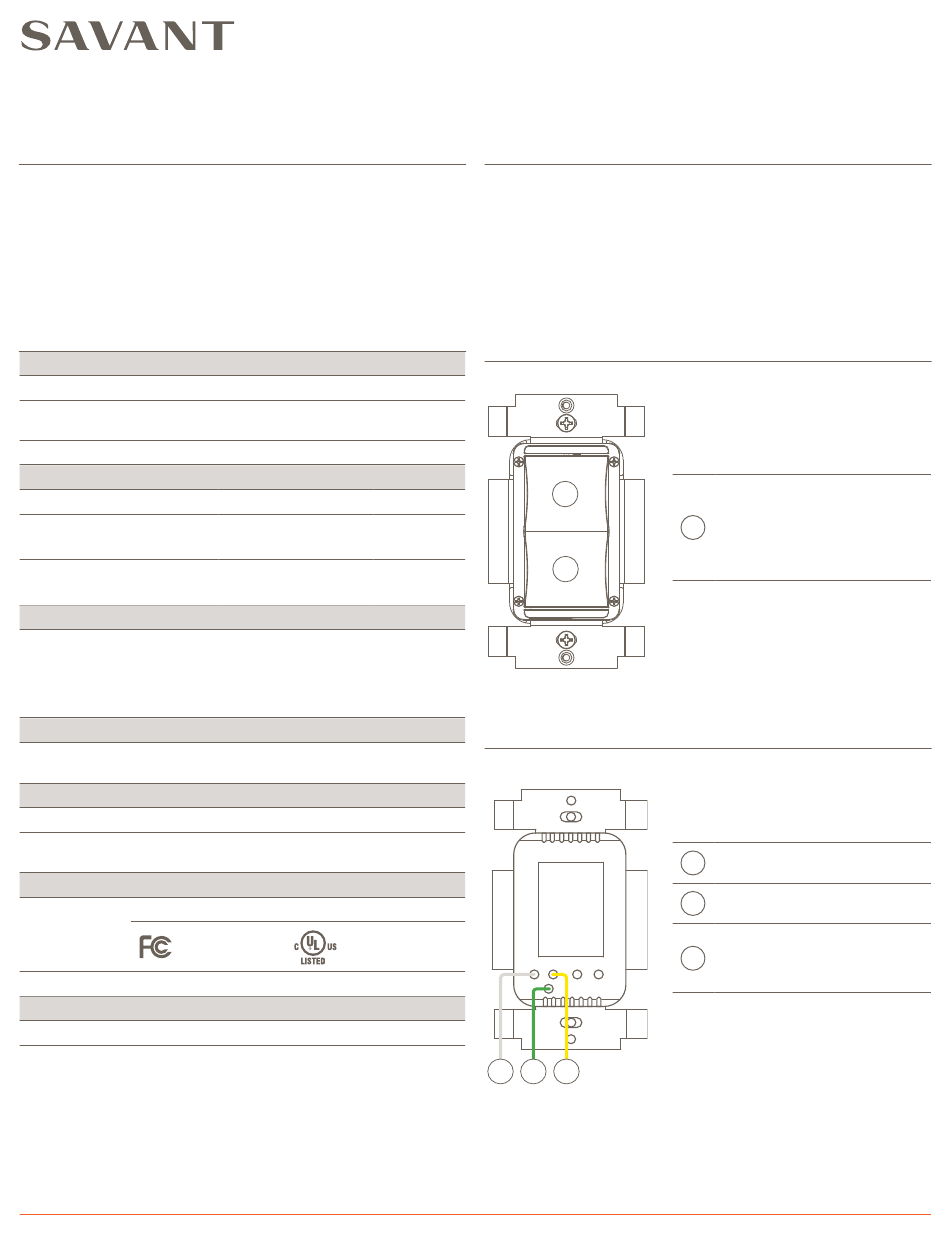

Front Panel
A
A
Rear Panel
A B C
Wires are all a five inch #16 AWG stranded wire.
1 of 3
Keypad Buttons - Press the
up or down button to send
control data over the yellow
A
traveler wire to a master
wireless keypad dimmer or
switch.
Neutral - Return path
A
White
for voltage.
Ground - Connect to
B
Green
earth ground
Traveler - Connect to
one or more Auxiliary
C
Yellow
Controls for multi-
location control.
