Savant ECHO WPB-LV02 Series Quick Reference Manual

ECHO and Metropolitan Style Low Voltage Keypads - Quick Reference Guide

Box Contents

(WPB/WIB-xxLV02, WPK/WIK-xxLV05)
(1) Keypad (faceplate not included)
(1) 5-pin Cable Control Station Pigtail (064-0456-xx)
(1) Product Regulatory Statement (009-1950-xx)
Box Contents
(WPB/WIB-xxLV06)
(1) Keypad (faceplate not included)
(1) 5-pin Cable Control Station Pigtail (064-0456-xx)
(2) Double Height Keypad Buttons (074-0927-xx)
(1) Product Regulatory Statement (009-1950-xx)

Specifications

Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Location Indoor Use Only
Dimensions and Weights
Length
WPB-xxLV02
WPB-xxLV06
4.13 inch
(10.50 cm)
WIB-xxLV02
WIB-xxLV06
WPK-xxLV05
4.13 inch
(10.50 cm)
WIK-xxLV05
7.0 inch
Shipping
(17.78 cm)
HELPFUL! The variation in the depth measurement for the
WPK and WIK is due to the dial on the front face.

Installation Recommendations

Savant recommends as a minimum:
– An open-backed low voltage bracket installed on the interior
walls and a closed-back electrical box on exterior walls.
– An installation depth of at least 1

Power

Input 24V DC
Average Power
0.5 watts
Consumption
Maximum Power
1.4 watts
Consumption

Regulatory

FCC Part 15 Class B
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
da Vinci 9.0
Echo and Metropolitan Style Low Voltage Keypads QRG
Copyright© 2021 Savant Systems, Inc. | 009-2027-00 | 210507
Width Depth Weight
1.72 inch .97 inch .30 lb.
(4.37 cm) (2.46 cm) (0.13 kg)
1.72 inch 1.24 inch .30 lb.
(4.37 cm) (3.15 cm) (0.13 kg)
4.5 in. 3.0 in. .60 lb.
(11.43 cm) (7.62 cm) (0.27 kg)
1/4
inches (3.2 cm).
CE Mark
Products
Paddle Keypad (WPB-xxLV02-xx, WIB-xxLV02-xx)
Dial Keypad (WPK-xxLV05-xx, WIK-xxLV05-xx)
Configurable Keypad (WPB-xxLV06-xx, WIB-xxLV06-xx)

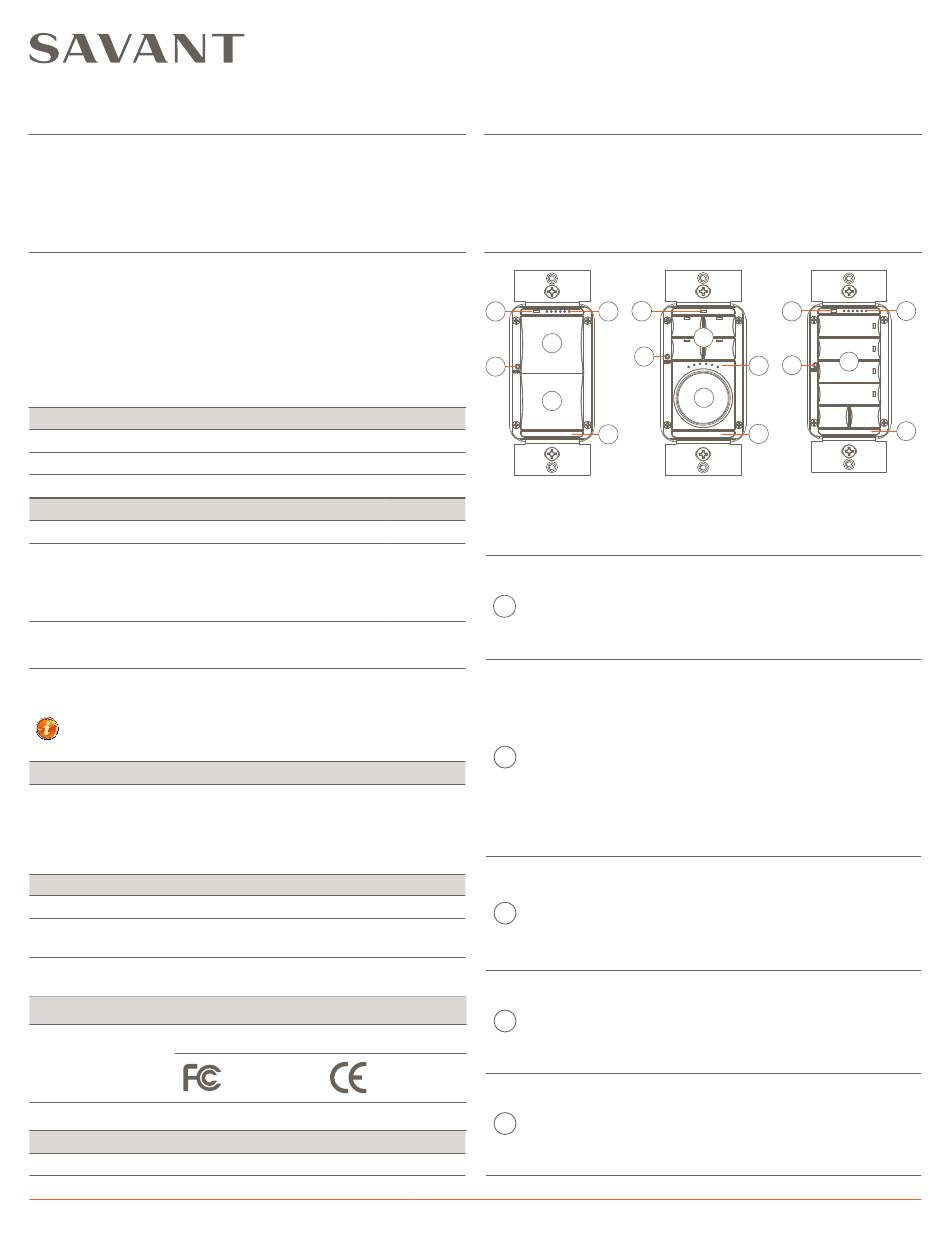

Front Panel
A B
D
C
D
E
WPB-xxLV02
WIB-xxLV02
Ambient Light Sensor - Detects the ambient light level
in the room and adjusts the brightness of the button
A
and dimming LEDs. The ambient light sensor is enabled
and disabled from the Lighting and Shade manager in
Blueprint.
Dimming Level Indicators - The six status LEDs on the
front panel can indicate any of the following:
– The amount of power applied to the load. The LEDs
turn on from left to right as power is increased and
switch off from right to left as power is decreased.
B
– The amount of power applied to the load for any
scenes created in Blueprint or the Pro App.
– The status of the keypad during the setup and
provisioning process. See the
Reset Button
Press and release - Reboots the keypad.
C
Press and hold - Press and hold for 5 seconds, then
release to perform a factory reset. A factory reset erases
the keypad's stored address.
Buttons - Programmable buttons. See the Low Voltage
Deployment Guide for instructions on how to program.
D
This guide and other lighting information are available on
the Keypad Lighting Documentation Portal in the
Customer Community.
Button LEDs - When configured and bound to a Savant
system, the LED's state gets defined by the selection
E
made in the LED Behavior and LED Color fields from
within the Lighting and Shade Manager.
1 of 3
A
A
D
C
B C
D
E
WPK-xxLV05 WPB-xxLV06
WIK-xxLV05 WIB-xxLV06
Led Sequencing
45 Perseverance Way, Hyannis MA 02601.
Savant.com
B
D
E
section.
Savant
| 508.683.2500
