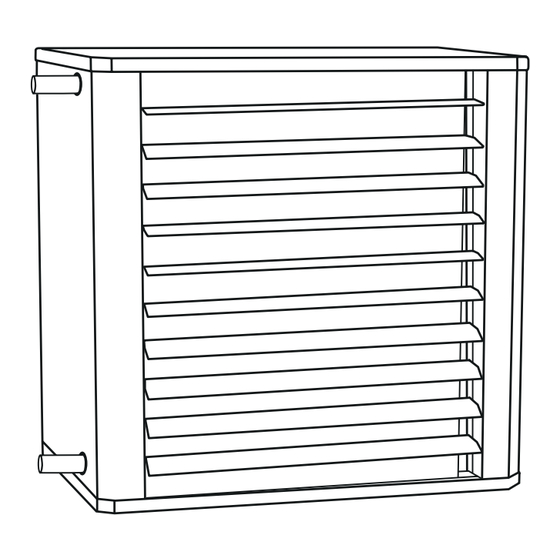

- Page 1 Original instructions SWX H ... 7 ... 11 ... 15 ... 19 ... 24 ... 28 ... 32 ... 36 ... 41 ... 45...
- Page 2 SWX H min 150 ØI [mm] ØI ø22 SWXH13 SWXH23 ø28 Electrical installation 230V~ Terminal box 0,85 m cable...
- Page 3 SWX H Accessories HxWxD Type [mm] SWXHFT1 SWXH13 455x525x15 SWXHFT2 SWXH23 595x650x15 SWXHFT Controls SWX H Type RSK-nr NRF-nr HxWxD (SE) (NO) [mm] 175x150x100 SWXRT70 SWXRT70 Water regulation SWX H Type RSK-nr NRF-nr (SE) (NO) SD20* 672 70 37 85 021 57 672 70 35 85 021 47 TVV20*...
- Page 4 SWX H Wiring diagrams SWX H Internal SWXH -13 -23 SWX CE/CS -12, -22 SWXD -13, -23 BK BU WT RD Control by thermostat only SWXH -13, -23 SWXH -13, -23 SD20* SD20* TVV20/25* TVV20/25* BK BU WT RD BK BU WT RD *) Note! Only for mounting outside hot environments >50 °C.
- Page 5 SWX H SWX H ∆t* Heat Sound Water Voltage Amperage Weight output* flow flow level* throw volume* [°C] [kW] [m³/h] [m³/s] [dB(A)] [kg] SWXH13 12 1830 230V~ SWXH23 23 3870 230V~ 1,35 ) Applicable at water temperature 80/60 °C, air temperature, in +40 °C. ) Conditions: Distance to the unit 5 metres.
- Page 6 SWX H Output charts water SWX H...
- Page 7 SWX H Installation and operating instructions General Instructions SWX H Read these instructions carefully before The fan heater is available in two sizes, installation and use. Keep this manual for SWXH13 and SWXH23. They have future reference. been especially developed to heat the The product may only be used as set out in air in environments with high ambient the assembly and operating instructions.
- Page 8 SWX H Fitting the wall brackets 1. Remove the eight screws indicated by the 2. Install the brackets with the holes toward arrows in picture A. the fan motor, as shown in picture B. 3. The fan heater may be mounted with the 4.
- Page 9 SWX H Connection of heating coil Maintenance The installation must be carried out by an To ensure performance and reliabilty of authorised installer. By turning the fan heater, the unit, inspection and cleaning should be pipe connections are possible on both sides. carried out reguarly.
- Page 10 SWX H Cleaning Safety The interval between each cleaning depends • Ensure that the area around the intake on the environment the fan heater is used in. is kept free from material which could Dust on the fan protective grille and on the prevent the air flow through the appliance.
- Page 11 Main offi ce Frico AB Tel: +46 31 336 86 00 Industrivägen 41 SE-433 61 Sävedalen mailbox@frico.se Sweden www.frico.net For latest updated information and information about your local contact: www.frico.net.
