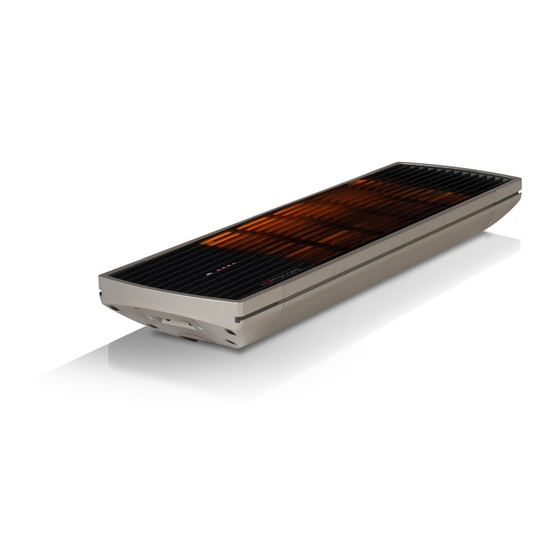

Heatscope MHS-SM1600BK.100 Original Installation And Instruction Manual
Electric ambient carbon radiant heater for indoor and outdoor areas
Hide thumbs
Also See for MHS-SM1600BK.100:
- Original installation and instruction manual (29 pages) ,
- Installation and instruction manual (32 pages) ,
- Original installation and instruction manual (32 pages)
Related Manuals for Heatscope MHS-SM1600BK.100
Summary of Contents for Heatscope MHS-SM1600BK.100

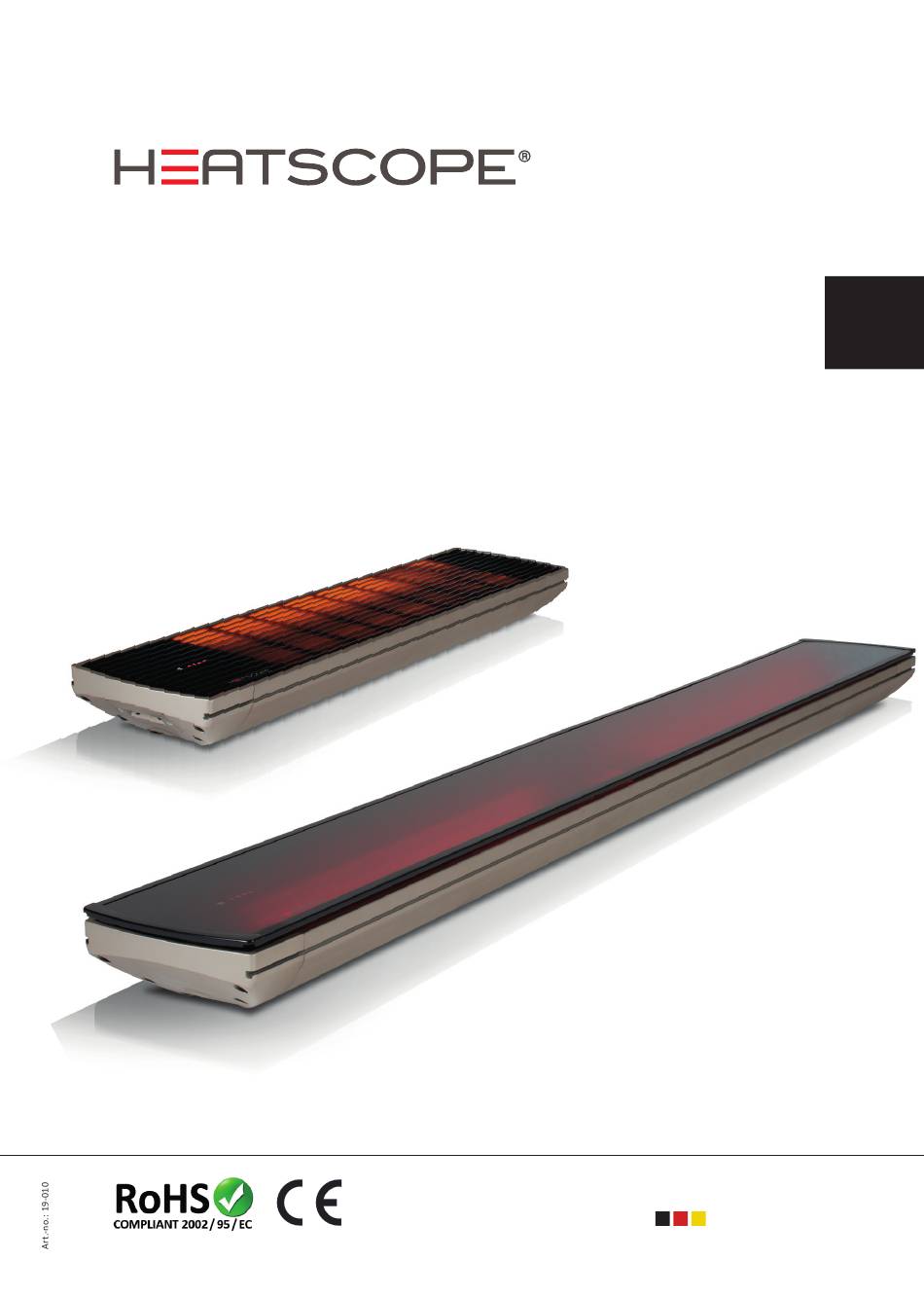

- Page 1 ORIGINAL INSTALLATION AND INSTRUCTION MANUAL Electric ambient carbon radiant heater for indoor and outdoor areas Made in Germany...
- Page 2 M U N I C H H O M E S Y S T E M S Ceiling Installati on ≤ A ≥ B ≥ B MHS-SM1600/MHS-SP1600 ≤ 240 mm ≥ 135 mm MHS-VT1600/MHS-VE1600 ≤ 300 mm ≥ 175 mm MHS-SM2200/MHS-SP2200 ≤...
- Page 3 A M B I E N T H E A T I N G S O L U T I O N S Wall mounting ≤ A ≥ B ≥ B ≤ A ≤ A ≥ B ≥ B ≥ B ≥...
-
Page 4: Manual Control
M U N I C H H O M E S Y S T E M S Manual control MHS-SM1600BK.100, MHS-SM2200BK.100, MHS-SM2800BK.100, MHS-SM1600WT.100, MHS-SM2200WT.100, MHS-SM2800WT.100 MHS-VE1600BK.100, MHS-VE2200BK.100, MHS-VE3200BK.100, MHS-VE1600WT.100, MHS-VE2200WT.100, MHS-VE3200WT.100 LED: 100 % 50 % MHS Munich Home Systems GmbH · Kramergasse 32 · 82054 Sauerlach · Germany... - Page 5 A M B I E N T H E A T I N G S O L U T I O N S IR remote control MHS-SP1600BK.100, MHS-SP2200BK.100, MHS-SP2800BK.100, MHS-SP1600WT.100, MHS-SP2200WT.100, MHS-SP2800WT.100 MHS-VT1600BK.100, MHS-VT2200BK.100, MHS-VT3200BK.100, MHS-VT1600WT.100, MHS-VT2200WT.100, MHS-VT3200WT.100 LED: / OFF ...
- Page 6 Electrical connecti on MHS-SP1600BK.100, MHS-SP2200BK.100, MHS-SP2800BK.100, MHS-SP1600WT.100, MHS-SP2200WT.100, MHS-SP2800WT.100 MHS-VT1600BK.100, MHS-VT2200BK.100, MHS-VT3200BK.100, MHS-VT1600WT.100, MHS-VT2200WT.100, MHS-VT3200WT.100 HEATSCOPE® SP // HEATSCOPE® VT 220-240 V AC~ 50/60 Hz Circuit breaker / fuse switch on the installati on side MHS Munich Home Systems GmbH · Kramergasse 32 · 82054 Sauerlach · Germany...
- Page 7 A M B I E N T H E A T I N G S O L U T I O N S MHS-SM1600BK.100, MHS-SM2200BK.100, MHS-SM2800BK.100, MHS-SM1600WT.100, MHS-SM2200WT.100, MHS-SM2800WT.100 MHS-VE1600BK.100, MHS-VE2200BK.100, MHS-VE3200BK.100, MHS-VE1600WT.100, MHS-VE2200WT.100, MHS-VE3200WT.100 HEATSCOPE® SM // HEATSCOPE® VE 220-240 V AC~ 50/60 Hz Circuit breaker / fuse switch on the installation side acc.
- Page 8 M U N I C H H O M E S Y S T E M S Technical data HEATSCOPE SPOT HEATSCOPE VISION ® ® Operati ng voltage 220-240 V AC ~ / 50/60 Hz 220-240V AC ~ / 50/60 Hz...
- Page 9 A M B I E N T H E A T I N G S O L U T I O N S W E E E- Re g .- N r. DE 45650441 Tel.: +49 8104 647090 · Fax: +49 8104 647099 · E-Mail: mail@munich-home-systems.de · www.munich-home-systems.de...
- Page 10 M U N I C H H O M E S Y S T E M S Minimum distances > 15cm > 15 cm > 180cm > 180cm > 40cm > 180cm MHS Munich Home Systems GmbH · Kramergasse 32 · 82054 Sauerlach · Germany...
- Page 11 A M B I E N T H E A T I N G S O L U T I O N S Tel.: +49 8104 647090 · Fax: +49 8104 647099 · E-Mail: mail@munich-home-systems.de · www.munich-home-systems.de...
- Page 12 M U N I C H H O M E S Y S T E M S Minimum distances > 15cm > 17 cm > 200cm > 200cm > 17cm > 200cm MHS Munich Home Systems GmbH · Kramergasse 32 · 82054 Sauerlach · Germany...
- Page 13 A M B I E N T H E A T I N G S O L U T I O N S Tel.: +49 8104 647090 · Fax: +49 8104 647099 · E-Mail: mail@munich-home-systems.de · www.munich-home-systems.de...
- Page 14 M U N I C H H O M E S Y S T E M S Minimum distances Sunrooms and glasshouses > 25cm > 180cm MHS Munich Home Systems GmbH · Kramergasse 32 · 82054 Sauerlach · Germany...
- Page 15 A M B I E N T H E A T I N G S O L U T I O N S > 25cm > 180cm Tel.: +49 8104 647090 · Fax: +49 8104 647099 · E-Mail: mail@munich-home-systems.de · www.munich-home-systems.de...
- Page 16 If you have any questi ons, contact the vendor or manufacturer. Please keep this instructi on manual in a safe place. Pass on the manual to any subsequent owner of the HEATSCOPE® unit and ensure that any supple- ments received are included along with it (cf.
- Page 17 MHS-SM1600BK.100, MHS-SM2200BK.100, MHS-SM2800BK.100 MHS-SM1600WT.100, MHS-SM2200WT.100, MHS-SM2800WT.100 HEATSCOPE® SPOT – 3 power levels, remote controllable, 3-pole cable HEATSCOPE® SPOT – 3 power levels, remote controllable, 3-pole cable SPECIFICATIONS: ON/OFF + three remote controllable power levels (100%, 80% or 50%), IR remote control...
- Page 18 The front screen or protecti ve fi n front gets very hot when the unit is operati ng. Do not cover either part of the front or the enti re front of the radiant heater. Do not touch any part of the HEATSCOPE® during operati on and up to 30 minutes aft er switching it off .
- Page 19 „minimum distances“. It is mandatory to install the unit on a surface where it is well protected from any weather influences like rain and dust from above; so the HEATSCOPE has to be installed under a roof, an overhang or in combionation with an optional available weather shield.
- Page 20 THE NORTHERN COUNTRIES USA, CANADA, NORTH AMERICA FRANCE Denmark, Sweden, Norway, Finland, Iceland GreenChance Inc. Culver City SARL HEATSCOPE FRANCE lifeform - Henrik Bach Eisensee, Sales Agency Rainer Heimann ZI Les gresses Gerdrupvej 236 11265 Washington Blvd. 26290 Donzère FRANCE DK 4230 Skælskør...
