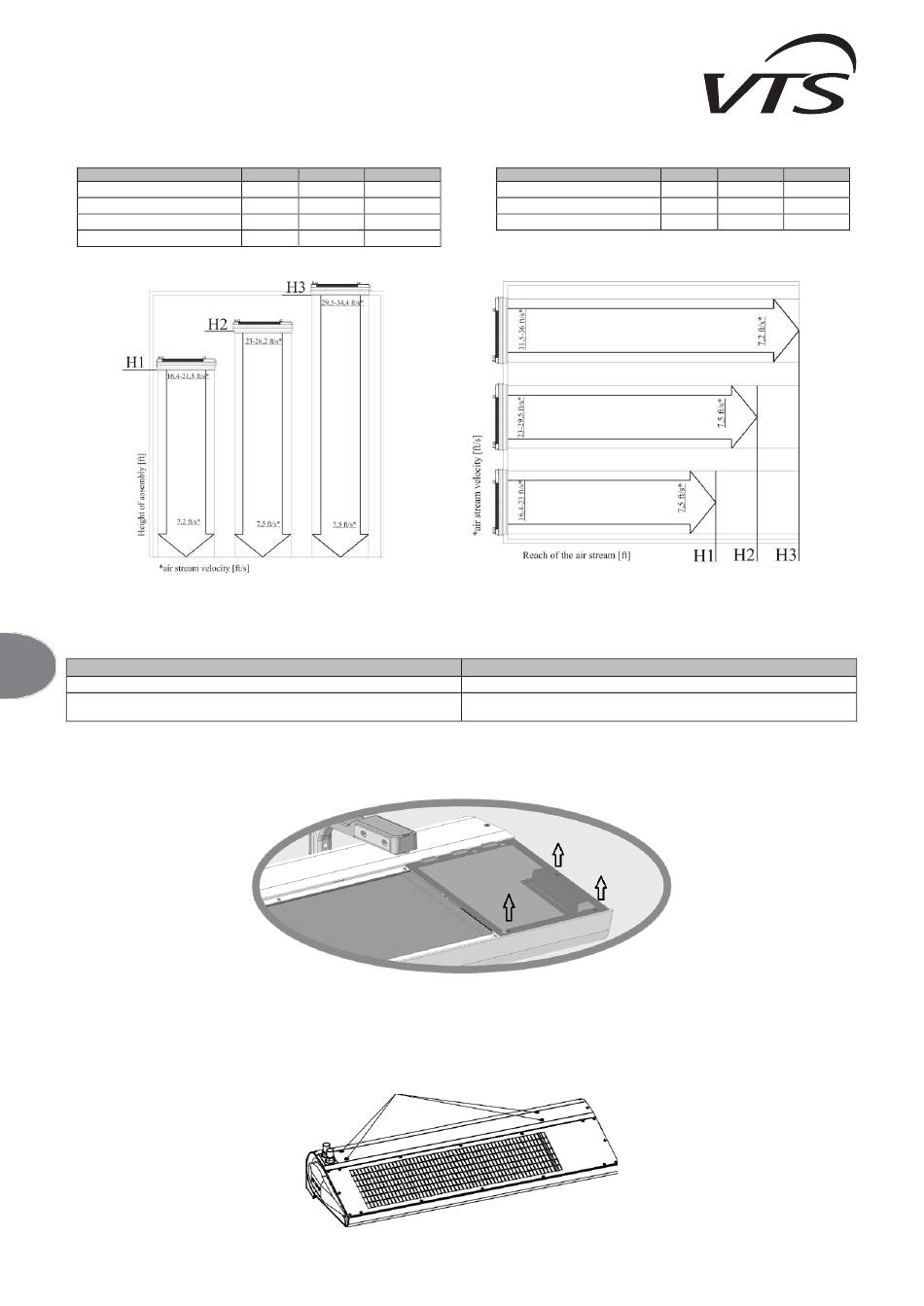

The range of the air jet - installation height
- Horizontal installation
fan speed
height of installation [ft]
WING W100, W150, W200
WING E100, E150, E200
WING C100, C150, C200
CAUTION! Air curtains with electric heat (models E100, E150 and E200) are not intended for vertical installation.
IMPORTANT! The heating output should be adjusted to the temperature inside the room, as well as the strength and direction of the wind outside. The primary criterion for the regulation of the
heating power is the temperature inside the room, near the door. Should a room thermostat be used, WING activates the heating mode, depending on the temperature settings.
IMPORTANT! Please consider additional factors that affect device operation.
EN
Factors that have a negative effect on curtain operation
doors or windows that are constantly open in the room, thus creating a draft
constant and open access to staircases, available through the room, the chimney draft
effect

3.1. ASSEMBLY/ DISASSEMBLY OF JUNCTION BOX COVER

To access the terminal block remove the screws from the junction box cover and tilt

3.2. INSTALLATION OF DEVICE

For directly installation use the threaded sleeves (5/16") in the top of the device.
IMPORTANT! The minimum distance between the unit and the ceiling should be 4 in.
III II I
H3 H2 H1
12 9-1/2 7-1/2
12 9-1/2 7-1/2
13 9-1/2 7-1/2
it.
5/16"
- Vertical installation
fan speed
width of the door [ft]
WING W100, W150, W200
WING C100, C150, C200
Factors that have a positive effect on curtain operation
presence of awning, roofs etc. on the outer side of the door
use of revolving doors
5
III II I
H3 H2 H1
12 9-1/2 7-1/2
13 9-1/2 7-1/2
