Solis RHI Series Hybrid Inverter Instruction Manual (RHI-3P(5-10)K-HVES-5G) Ver 1.1 Ginlong Technologies Co., Ltd. No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806 Fax: +86 (0)574 6578 1606 Please adhere to the actual products in case of any discrepancies in this user manual.

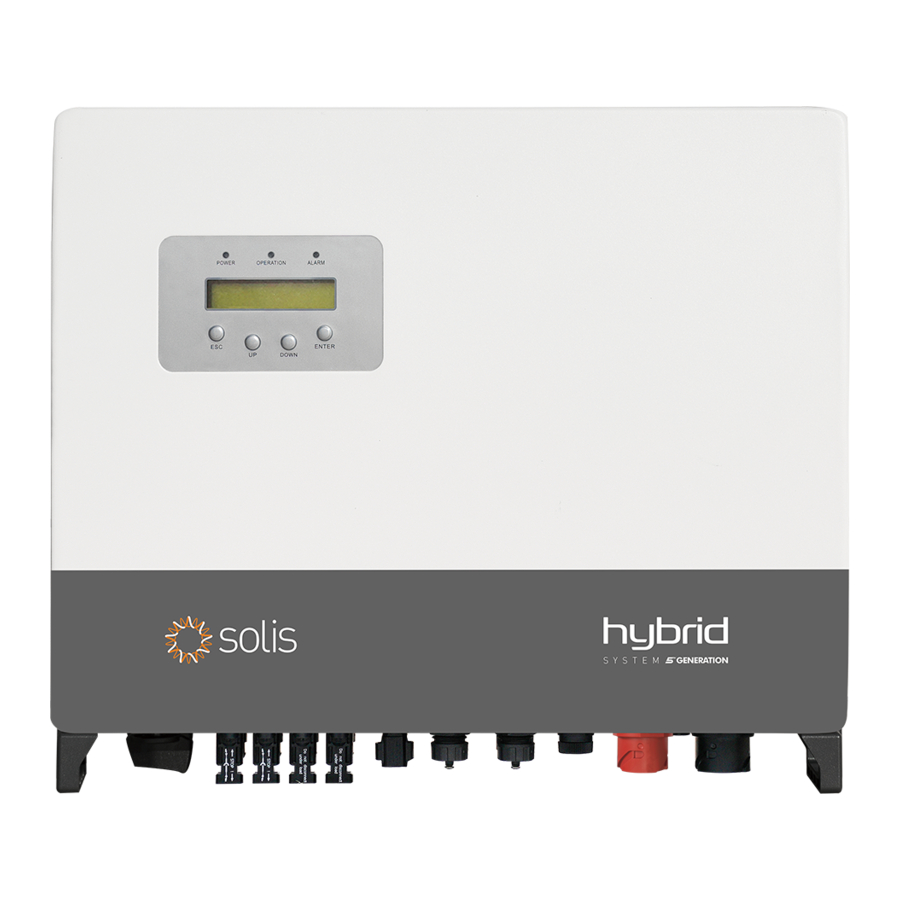

1.2 Packaging 1.1 Product Description The Solis RHI series is designed for residential hybrid systems, which can work with Please ensure that the following items are included in the packaging with your machine: batteries to optimize self-consumption. The unit can operate in both off- and on-grid modes.
NEC Article 690, Part II. All Solis single phase inverters feature an integrated WARNING: DC switch. “Warning” indicates a hazardous situation which if not avoided, could result CAUTION: in death or serious injury.
× 3 Phase LOAD Figure 3.2 Keypad 3.3 Terminal Connection Solis RHI series inverter is different from normal on-grid inverter, please refer to the instructions below before start connection. WARNING: Please refer to the specification of the battery before configuration.
4. Installation 4. Installation 4.1 Select a Location for the Inverter Install on a wall or strong structure capable of bearing the weight of the machine (24kg). To select a location for the inverter, the following criteria should be considered: Install vertically with a maximum incline of +/- 5 degrees, exceeding this may cause Exposure to direct sunlight may cause output power derating.
Make sure the DC-switch, battery, AC-BACKUP, and AC-Grid are all in their off-states. Make sure the PV resistance to ground is higher than 20K ohms. The Solis RHI series inverter uses the MC4 connectors. Please follow the picture below to assemble the MC4 connectors.
4. Installation 4. Installation 4.4 Battery Terminal Components 4.5 AssemblingtheACConnector Quick connector is used for battery connection. The connector is suitable for tin-plated cables There are two AC terminals and the assembly steps for both are the same. with a conductor cross section of 2.5-6mm2 (AWG14-10). TakeouttheACconnectorpartsfromthepackaging.
4.6 Meter Installation A) Stripped the insulation sleeve of cable for 70mm, so that bared copper-cored connector Solis RHI-(5-10)K-HVES-5G series inverter integrated export power control function, this function reaches for 13mm. Cable through nut and sleeve of socket element, insert corresponding need connect a 3-Phase power meter for export power controlling.
4.7 Communication C able Assembly 4.8 Logic interface connection (Only for UK) The RHI series inverter uses RS485 cable to communicate with the Meter and CAN to Logic interface is required by G98 and G99 standard that can be operated by a simple communicate with the battery's BMS.
4. Installation 5. Operation 4.9 LED Indicates There are three LED indicators on the RHI inverter (Red, Green, and Orange) which indicate the working status of the inverter. Pressing the ESC main menu key calls back the previous menu Information UP/DOWN Light Description...
5. Operation 5. Operation 5.2 Information In the information section, operating data and information data can be viewed. Display Description Sub-sections include: Duration 1.General Info 2.System Info 3.Energy Records 4.PVEnergy Records V_DC1: Shows input 01 voltage value. V_DC1: 000.0V 10 sec 5.BMS Info 6.Meter Info I_DC1:...
5. Operation 5. Operation 5.3 Settings 5.4 Advanced Information The following submenus are displayed when the Settings menu is selected: NOTE: 1. Set Time/Date To access to this area is for fully qualified and accredited technicians only. 2. Set Address Enter menu “Advanced Info.”(Password “0010").
Page 15
Inverter Temp: Shows internalIGBTtemperatureoftheinverter. 10 sec +000.0degC Grid Standard: Shows current effective gridstandard. 10 sec Flash State: 10 sec Reserved for Solis Technicians 00000000 Figure 5.14 General Status NOTE: The advanced status is reserved for Solis technicians. .26. .27.
NOTE can't get charged for a long period of time. For different countries, the grid standard needs to be set as different according to local requirements. If there is any doubt, please consult Solis service technicians for details. .28. .29.
Page 17
5. Operation 5. Operation 5.5.5 Storage Energy Set There are two settings available in this section: Meter select and Storage Mode Select. Battery Select: PYLON Meter Select Stg Mode Select Figure 5.21 Battery Select Figure 5.26 Storage Energy Set Overdischg SOC: 5.5.5.1 Meter Select 020% The setting is used to select the meter type based on the actual configuration.
Page 18
5. Operation 5. Operation 5.5.6 STD.Mode Settings Time Charging Mode: These settings are reserved for maintenance personnel and technicians. "Optimal Income" is the switch to turn on/off the Time Charging Mode. Do not change anything without instructions. Customer can define the charge/discharge current as well as when to charge/dischage Selecting “STD Mode.
Page 19
5. Operation 5. Operation 5.5.8.2 Backflow Power 5.5.12 Compensation Set Determine the allowed backfeed power. (System export to the grid) This function is used to calibrate inverter output energy and voltage. Two sections are included: Power Parameter and Voltage Parameter. Backflow Power +0000W Power Parameter...
6.1 Preparation of Commissioning Ensure all the devices are accessible for operation, maintenance and service. Solis RHI Series inverter does not require any regular maintenance. However, cleaning the Check and confirm that the inverter is firmly installed. heatsink will help inverter dissipating heat and increase the lifetime of inverter. The dirt on the Space for ventilation is sufficient for one inverter or multiple inverters.
Page 21
7. Troubleshooting 7. Troubleshooting When faults occur, the “Fault” state will be shown on the main screen. Alarm Message Failure description Solution Follow the steps below to check what fault occurs. 1. Check if there’s arc in PV connection ARC-FAULT ARC detected in DC circuit Steps: Enter →...
Page 22
OV-ILLC LLC hardware overcurrent 2. Return-factory repair 1. Serial number of Solis Single Phase Inverter; 2. The distributor/dealer of Solis Single Phase Inverter (if available); Bypass overvoltage fault OV-VBackup 3. Installation date. 4. The description of problem (i.e. the alarm message displayed on the LCD and the status 1.
Page 23
8. Specifications 8. Specifications Output AC(Back-up) Technical Data RHI-3P5K-HVES-5G RHI-3P6K-HVES-5G Input DC (PV side) Rated output power Recommended max. PV power Max. apparent output power 8000W 9600W 5kVA 6kVA Max. input voltage Peak apparent output power 1000V 10000VA, 60 sec 12000VA, 60 sec Rated voltage 600V...
Page 24
8. Specifications 8. Specifications General data Technical Data RHI-3P8K-HVES-5G RHI-3P10K-HVES-5G Dimensions(W/H/D) Input DC (PV side) 535*455*181mm Weight 25.1kg Recommended max. PV power 12800W 16000W Topology Max. input voltage Transformerless 1000V Self consumption (Night) <7 W Rated voltage 600V Operation temperature range Start-up voltage -25℃~+60℃...
Page 25
8. Specifications 8. Specifications Output AC(Back-up) General data Rated output power Dimensions(W/H/D) 10kW 535*455*181mm Max. apparent output power Weight 25.1kg 8kVA 10kVA Peak apparent output power Topology 16000VA, 60 sec Transformerless Back-up switch time < 40ms Self consumption (Night) <7 W Rated output voltage Operation temperature range 3/N/PE, 380V/400V...
