SOLIS RHI-HV 5G Series Instruction Manual
  1. Manuals
  2. Brands
  3. SOLIS Manuals
  4. Inverter
  5. RHI-HV 5G Series
  6. Instruction manual

SOLIS RHI-HV 5G Series Instruction Manual

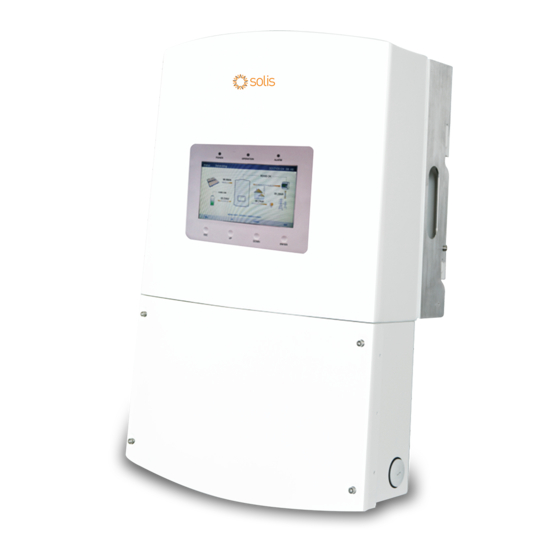

Hybrid inverter
Hide thumbs Also See for RHI-HV 5G Series:
Table of Contents

Advertisement

Quick Links

Ginlong Technologies Co., Ltd.
No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo,
Zhejiang, 315712, P.R.China.
Tel: +86 (0)574 6578 1806
Fax: +86 (0)574 6578 1606
Please adhere to the actual products in case of any discrepancies in this user manual.
If you encounter any problem on the inverter, please find out the inverter S/N
and contact us, we will try to respond to your question ASAP.
ComplywithCARule21/
SunSpec
CertifiedtoUL1741SA
Certified
Certified to UL Std. No. 1741-Second Edition
& CSA-C22.2 No.107.1-16

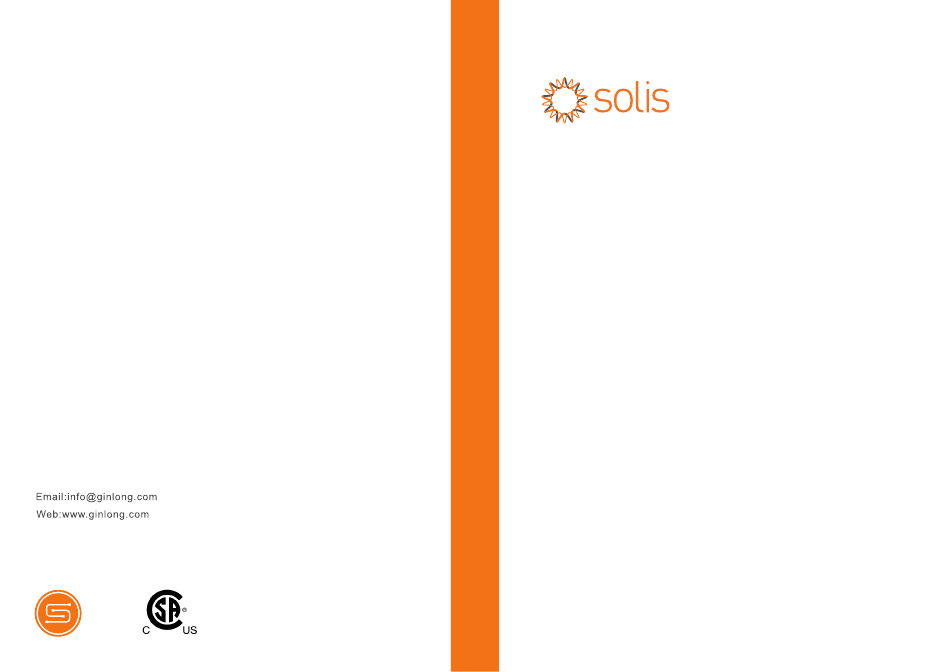

Solis RHI-HV Series Hybrid Inverter
Instruction Manual
Ginlong Technologies Co., Ltd.
(ForUSA)
Ver 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHI-HV 5G Series and is the answer not in the manual?

Questions and answers

Related Manuals for SOLIS RHI-HV 5G Series

Summary of Contents for SOLIS RHI-HV 5G Series

  • Page 1 Solis RHI-HV Series Hybrid Inverter Instruction Manual (ForUSA) Ver 1.1 Ginlong Technologies Co., Ltd. No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806 Fax: +86 (0)574 6578 1606 Please adhere to the actual products in case of any discrepancies in this user manual.

  • Page 2: Table Of Contents

    Contents 1. Introduction ………………………………………………………………………………………………………………… 1.1 Product Description ………………………………………………………………………………………………………… 1.2 Packaging ………………………………………………………………………………………………………………………… 2. Safety & Warning ……………………………………………………………………………………………………… 2.1 Safety ……………………………………………………………………………………………………………………………… 2.2 General Safety Instructions …………………………………………………………………………………………… 2.3 Notice For Use ………………………………………………………………………………………………………………………… 3. Overview ………………………………………………………………………………………………………………………… 3.1 Screen ………………………………………………………………………………………………………………………………… 3.2 Keypad …………………………………………………………………………………………………………………………………… 3.3 Terminal Connection …………………………………………………………………………………………………………...

  • Page 3: Introduction

    1.2 Packaging 1.1 Product Description The Solis RHI-HV 5G series is designed for residential hybrid systems, which can work Please ensure that the following items are included in the packaging with your machine: with high voltage lithium ion batteries to maximize self-consumption rate.

  • Page 4: Safety & Warning

    NEC NOTE: Article 690, Part II. All Solis single phase inverters feature an integrated If you want to cut off the MLRSD, push the button in the middle of the DC switch. RSD-Estop. And rotate the button clockwise to reset the function.

  • Page 5: Notice For Use

    AC-BACKUP port. Parallel operation of the unit will void the warranty. Figure 3.1 Keypad 3.3 Terminal Connection × × × × × Solis RHI series inverter is different from a normal grid-tied refer inverter, please refer the instructions below before initial connection. 3 Phase LOAD 1 Phase LOAD Vent AC-BACKUP...

  • Page 6: Installation

    4. Installation 4. Installation 4.1 Select a Location for the Inverter To select a location for the inverter, the following criteria should be considered: Install on a wall or strong structure capable of bearing the weight of the machine (30kg). Install vertically with a maximum incline of +/- 5 degrees: exceeding this may cause WARNING: Risk of fire output power derating.

  • Page 7: Mounting The Inverter

    4. Installation 4. Installation 4.2 Mounting the Inverter Dimensions of mounting bracket: 2. Lift up the inverter (be careful to avoid body strain) and align the back bracket on the inverter with the convex section of the mounting bracket. Hang the inverter on the mounting bracket and ensure the inverter is secure (see Figure 4.5) Figure 4.3 Inverter wall mounting Once a suitable location has been found according to 4.1 using figures 4.3 and 4.4...

  • Page 8: Pv Terminals

    (For 5~9KW) (For 10KW) Pre-assembled Plug (Optional) the system and the (Detailed info please refer to Solis monitoring portal Solis datalogger user manual) Traverse cross sectional area 10~4 AWG 8~4 AWG 6~4 AWG Table 4.1 Wire Specification Recommend 10 AWG...

  • Page 9: Battery Fuse Terminals

    Table 4.3 Battery power cable requirement Note: AC Grid and AC Backup output 240V L1-L2. For 120V load, auto-transformer is required in the system. For detailed information about the autotransformer please refer to Solis auto-transformer quick installation guide. .14. .15.

  • Page 10: Communication Terminals

    Inner Figure 4.10 Meter terminals External The Solis RHI-HV 5G series inverter integrates export power control function which requires an external meter to detect the power flow. The following figure shows the corresponding connection of the meter. Figure 4.9 Communication port From left to right, the communication terminals consist of ten ports.
  • Page 11 Enable_High RS485_High COM2 is a 4-pin RS485 communication port which is used to connect RS485_Low Solis datalogging stick. CAN_Low If necessary, firmware upgrades can be done through an upgrade tool connecting to this port. Figure 4.13 LG Battery Communication Note:...

  • Page 12: External Ground Connection

    4. Installation 5. Operation 4.7 External Ground Connection An external ground connection is provided at the right side of inverter. Prepare OT terminals: M4. Use proper tooling to crimp the lug to the terminal. Pressing the ESC main menu Connect the OT terminal with ground cable to the right side of inverter. The torque is 2N.m. key calls back the previous menu information...

  • Page 13: Main Menu

    5. Operation 5. Operation 5.2 Main Menu After setting the language, press "ESC" to access the main page. There are four submenus in the Main Menu: 1. Information 2. Settings 3. Advanced Information 4. Advanced Settings Menu Settings 2015-02-23 19 35 Information 2.526 Settings...
  • Page 14 5. Operation 5. Operation Settings General Info Settings EnergyRecords 2015-02-23 19 35 2015-02-23 19 35 Inverter SN： 000F80017A20515 DRM NO.： Total Energy： 0000008kWh This Month： 0000kWh Device Status： Waiting Model NO.： Today： Last Month： 0000kWh 0000.0kWh Battery Status： Waiting Software Ver.： 040000 Yesterday：...

  • Page 15: Settings

    Set the time and date on the inverter. Must set this according to local time as it Charge Power: Positive value indicates charging, negative value indicates affects the daily yield calculation. (If Solis monitoring system is used, must set discharging.

  • Page 16: Advanced Information

    5. Operation 5. Operation 5.4.2 Set Address 5.5 Advanced Information Set the slave address of the inverter. The default address is 01. Detailed information can be viewed in this section: 1. Alarm Message 2. Warning Message 3. Running Status Settings Set Address 2015-02-23 19 35 4.
  • Page 17 5. Operation 5. Operation 5.5.2 Warning Message 10 pages of latest warning messages (5 per page). Settings General Status 2015-02-23 19 35 Warning message shows the warning that is abnormal but will not lead to inverter DC Bus Voltage： 000.0V shutdown.

  • Page 18: Advanced Settings - Technicians Only

    5. Operation 5. Operation 5.5.4 Communication Data 5.6 Advanced Settings - Technicians Only Internal communication data can be viewed in this section. For maintenance person only. NOTE: Values are for reference only. This function is for authorized technicians only. Improper access and operation may result in abnormal results and damage to the inverter.
  • Page 19 5. Operation 5. Operation 5.6.1 Select Standard This function is used to select corresponding grid standards. NOTE: Please refer to the actual LCD setting for the grid standard options. ON: AC Relay is ON. Press the UP/DOWN keys to select the standard (UL-240V, UL-208V, R21P3-240, OFF: AC Relay is OFF.
  • Page 20 5. Operation 5. Operation Settings Battery Select 2015-02-23 19 35 Battery Module: ForceCharge SOC： 005% B-BOX HV Y E S = < E N T > N O = < E S C > E S C D O W N E N T Figure 5.28 Battery Select Figure 5.30 ForceCharge SOC...
  • Page 21 5. Operation 5. Operation 5.6.4 Backup Control 5.5.4.2 Backup Settings This section is used to set the configuration of the backup port. This section shows the parameter of the backup port. Settings Backup Settings Settings Backup Control 2015-02-23 19 35 2015-02-23 19 35 Backup Voltage ：...
  • Page 22 5. Operation 5. Operation 5.6.5.1 Meter Select The setting is used to select the meter type based on the actual configuration. Settings Storage Mode Select 2015-02-23 19 35 NOTE: Select "1Ph Meter" to be compatible with the meter that comes with the Mode: inverter package.
  • Page 23 Parameter Accuracy: Voltage:1%; Current:1%; Frequency:0.06Hz; Power:4%; Time:0.12s; PF:0.01. Solis US version inverters have Seven working modes: 1. NULL 2. Volt-watt 3. Volt-Var 4. Fixed-PF 5. Reac-power 6. P-factor 7. VgWatt-UL Y E S = < E N T > N O = < E S C >...
  • Page 24 5. Operation 5. Operation Default Settings for UL1741SA: Q1: (0-60%) Default +30% Q4: (-60%-0%) Default -30% under-excited under-excited Rated 240V Grid V1:(192-240V) Default 210V V2: (192-240V) Default 236V V3:(240-288V) Default 243V V4: (240-288V) Default 264V Rated 208V Grid -1,0 -0,2 V1:(166-208V) Default 182V V2: (166-208V) Default 205V V3:(208-240V) Default 211V...
  • Page 25 Voltage:1%; Current:1%; Frequency:0.06Hz; Power:4%; Time:0.12s; PF:0.01. Rated 208V Grid V1:less than V2 Solis US version inverters have Ten working modes: V2:less than Vstart 1. NULL 2. Volt-watt 3. Volt-Var 4. Fixed-PF 5. Reac-power 6. Power-PF 7. VgWatt-UL Based on Rule21, working mode 1,2,3,4 can be used by grid operator.
  • Page 26 5. Operation 5. Operation 3. Volt-Var 4.Fixed-PF Description: Inverter will change the reactive output power based on voltage change. Description: Inverter will output power with fixed power factor. Setting Range: -0.8 to +0.8 Default value is PF = 1 Q1,cap Fixed-PF 2015-02-23 19 35 Q2=Q3=0...
  • Page 27 5. Operation 5. Operation 6. P-Factor (Not Required) To set both modes (Volt-watt in high priority) Description: Inverter will change power factor based on changing output power. Step 1: Select and set Volt-var mode at first. Note: This Setting is NOT required by Rule21 Standards. Step 2: Enter "Working Mode"...
  • Page 28 5. Operation 5. Operation 5.6.6.2 Ramp Rate Limit 5.6.6.4 10mins Voltage Set This function is used for changing power ramp up rate. This function is disabled andnot used for the US. When the inverter initializes or string MPPT changes, the ramp up rate is limited. NOTE: The default setting is stop (disable).
  • Page 29 5. Operation 5. Operation 5.6.7 Software Update 5.6.8.1 Backflow Power The software update includes the HMI and DSP. Corresponding firmware version Determine the allowed backfeed power. (System export to the grid) can be checked in this setting. Press “ENT” to enter the upgrading mode. Settings Backflow Power 2015-02-23 19 35...
  • Page 30 5. Operation 5. Operation 5.6.8.3 FailSafe ON/OFF When this Failsafe function is ON, the inverter will shutdown once it loses TotalEnergy communication with the meter in case of any backflow power exceeds the limit. Adjusting total generating power Total Energy: 00000 2015-02-23 19 35 Settings...

  • Page 31: Commissioning

    6. Commissioning 5. Operation 5.6.10 Reset Password 6.1 Preparation of Commissioning Reset Password: In this menu, user can reset the inverter password, but the admin Ensure all the devices are accessible for operation, maintenance, and service. Check and confirm that the inverter is firmly installed. password is always valid.

  • Page 32: Troubleshooting

    7. Troubleshooting 7. Troubleshooting Solis RHI Series inverter does not require any regular maintenance. However, cleaning the When faults occur, the “Fault” state will be shown on the main screen. Follow the steps below to determine which fault has occurred.
  • Page 33 7. Troubleshooting 7. Troubleshooting Step3: Press DOWN to select Alarm Message, then press ENTER. Alarm Message Failure description Solution 1. Check if there is an arc in the PV Settings Advanced Information ARC-FAULT ARC detected in DC circuit 2015-02-23 19 35 connection and restart inverter.
  • Page 34 OV-IgTr AC side transient overcurrent If you have any technical problems with the hybrid system, please contact the Solis 1. Restart inverter. OV-ILLC LLC hardware overcurrent after-sale service. It is recommended to gather the following information before making 2.
  • Page 35 8. Specifications 8. Specifications Output AC(Grid side) Technical Data RHI-1P5K-HVES-5G RHI-1P7.6K-HVES-5G Input DC (PV side) Rated output power 7.6kW Recommended max. PV power Max. apparent output power 7000W 10600W 5kVA 7.6kVA Max. input voltage Operation phase 500V 1Ф/PE Rated voltage 330V Rated grid voltage 208V / 240 V...
  • Page 36 8. Specifications 8. Specifications General data Technical Data RHI-1P10K-HVES-5G Dimensions(W/H/D) Input DC (PV side) 20.2*28.1*8.18 in (539*717*250 mm) Weight 66.1 lbs (30 kg) Recommended max. PV power 14000W Topology Transformerless Max. input voltage 500V Operation temperature range -25~+60 ℃/-13~+140 ℉ Rated voltage 330V Ingress protection...
  • Page 37 8. Specifications 8. Specifications Output AC(Grid side) General data Rated output power Dimensions(W/H/D) 10kW 20.2*28.1*8.18 in (539*717*250 mm) Max. apparent output power Weight 66.1 lbs (30 kg) 10kVA Operation phase Topology Transformerless 1Ф/PE Rated grid voltage 208V / 240 V Operation temperature range -25~+60 ℃/-13~+140 ℉...

  • Page 38: Appendix

    9. Appendix 9. Appendix 9.1 Solutions for different grid topology This product is designed for the following two types of grid topology. Type 2: Grid without Neutral Type 1: Grid with Neutral grounded Please follow the below circuit diagram to configure the connection (Use the central tap N of the auto-transformer to ground the neutral): Please follow the below circuit diagram to configure the connection: .72.
  • Page 39 9. Appendix Type 3: Special grid topology For the following grid topology, the standard hybrid inverter is NOT applicable. Please contact Solis to purchase necessary accessories to be compatible with them. Requirements: 1. A special contactor box (Automatic change-over switch box) 2.
