IPCP Pro Series • Setup Guide (Continued)

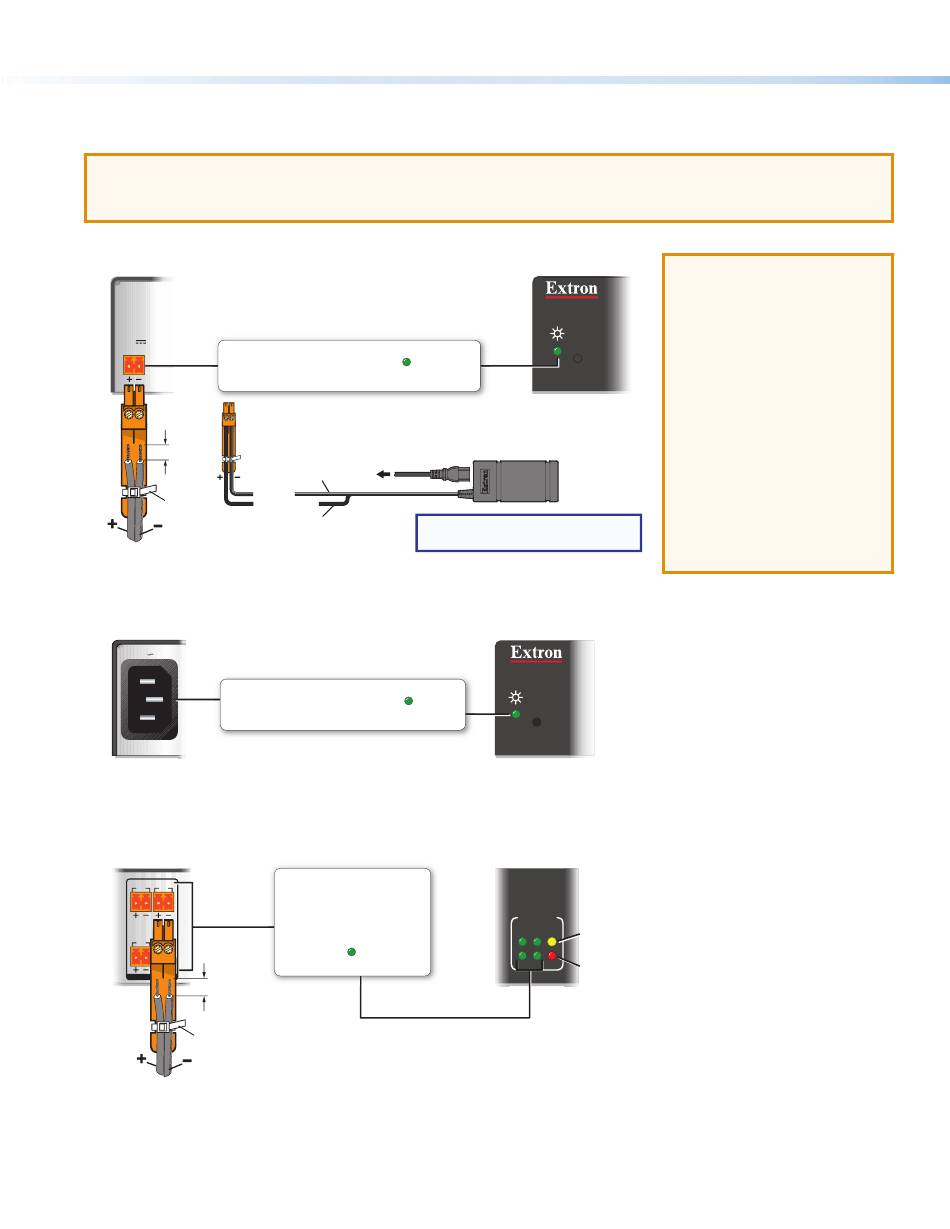

Cabling and Features

Attach cables using the following wiring diagrams as a guide. Full details are available in the IPCP Pro Series User Guide.
ATTENTION:
• Installation and service must be performed by experienced personnel.
• L'installation et l'entretien doivent être effectués par du personnel expérimenté.
Power Input — External
POWER
12V
x.xA MAX
• Connect to
included 12 VDC
power supply.
3/16"
(5 mm)
Max.
Tie Wrap
Smooth Ridged
Power Input — Internal
100-240V 50-60Hz
• Connect to 100 to
240 VAC.
1.2A MAX
Rear Panel
Power Output — Switched 12 VDC Power Output
1 2
SWITCHED 12 VDC
40W MAX TOTAL
3 4
12 VDC 3/16"
(5 mm)
Rear
Max.
Panel
Tie Wrap
Power Output — PoE+
The IPCP Pro 360 can output PoE+ on AV LAN ports 2 and 3. For details, see the
8
Power Input, External Power Supply
• Front panel LED ( ) blinks during
boot-up and remains lit when the
IPCP is powered and operational.
To
AC
Ridged
power
– Return
+12 VDC input
Smooth
NOTE:
Power Input, Internal Power Supply
• Front panel LED ( ) blinks
during boot-up and remains lit
when the IPCP receives power.
Switched 12 VDC
Power Output
• Total output for all four ports
combined:
12 VDC, 40 watts (max.)
• Corresponding front panel
green LEDs ( ) light when
power is available at each port.
R
Front Panel
Ground all devices.
External
12 VDC
Power Supply
Check the polarity of the power
supply before connecting it to the IPCP.
R
Front Panel
SWITCHED
Lights if total power drawn
12 VDC
is 41-46 watts.
1 2 LIMIT
3 4 OVER
Lights if total power drawn
exceeds 47 watts.
Power output shuts off
Front
until the user corrects the
Panel
overload.
PoE+ output
ATTENTION:
• Always use a power
supply supplied or
specified by Extron. Use
of an unauthorized power
supply voids all regulatory
compliance certification and
may cause damage to the
supply and the unit.
• Utilisez toujours une source
d'alimentation fournie par
Extron. L'utilisation d'une
source d'alimentation non
autorisée annule toute
certification de conformité
réglementaire et peut
endommager la source
d'alimentation que l'unité.
information on page 11.
