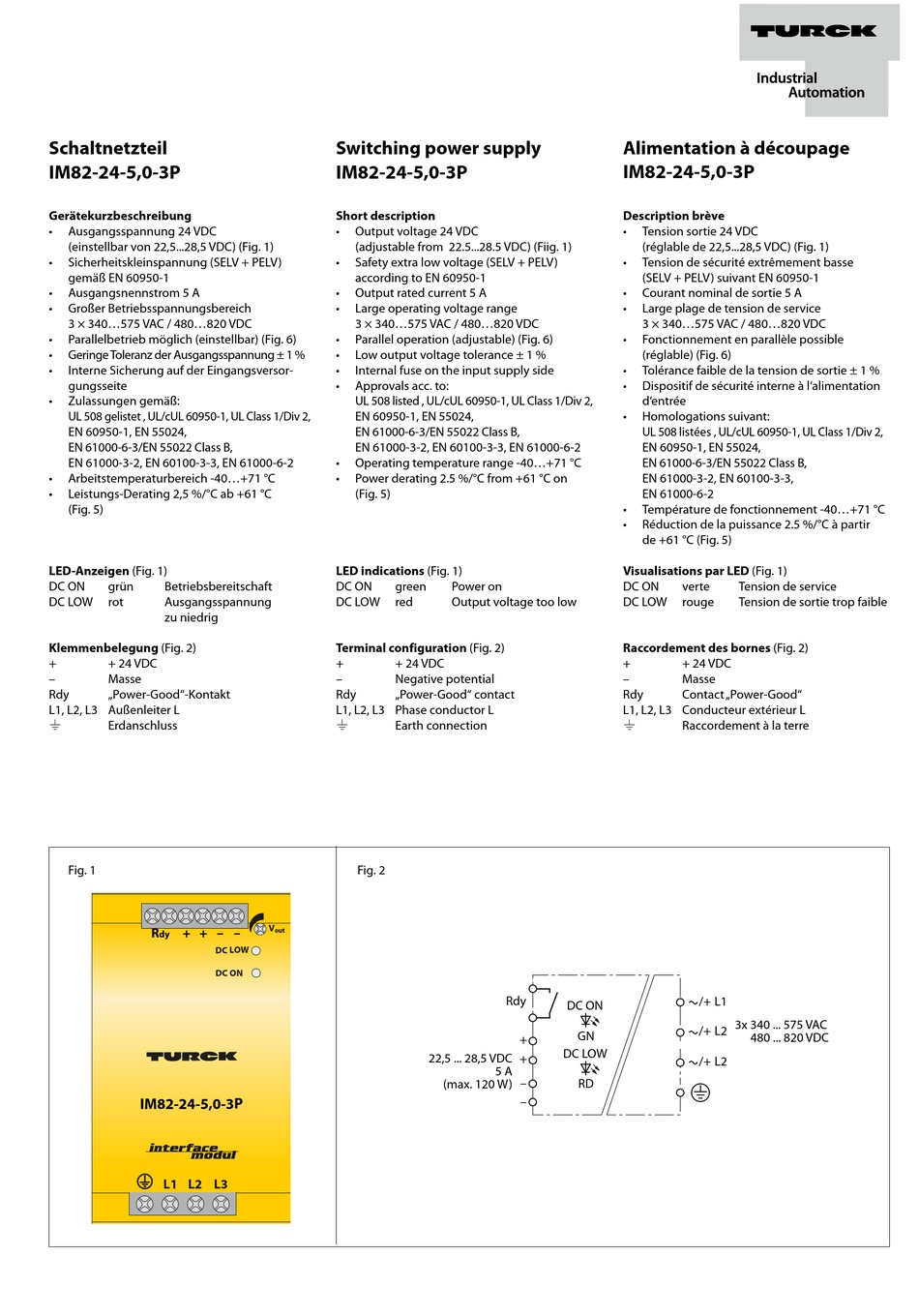

Schaltnetzteil
IM82-24-5,0-3P
Gerätekurzbeschreibung
• Ausgangsspannung 24 VDC
(einstellbar von 22,5...28,5 VDC) (Fig. 1)
• Sicherheitskleinspannung (SELV + PELV)
gemäß EN 60950-1
• Ausgangsnennstrom 5 A
• Großer Betriebsspannungsbereich
3 × 340...575 VAC / 480...820 VDC
• Parallelbetrieb möglich (einstellbar) (Fig. 6)
• Geringe Toleranz der Ausgangsspannung ± 1 %
• Interne Sicherung auf der Eingangsversor-
gungsseite
• Zulassungen gemäß:
UL 508 gelistet , UL/cUL 60950-1, UL Class 1/Div 2,
EN 60950-1, EN 55024,
EN 61000-6-3/EN 55022 Class B,
EN 61000-3-2, EN 60100-3-3, EN 61000-6-2
• Arbeitstemperaturbereich -40...+71 °C
• Leistungs-Derating 2,5 %/°C ab +61 °C
(Fig. 5)
LED-Anzeigen (Fig. 1)
DC ON
grün
Betriebsbereitschaft
DC LOW rot
Ausgangsspannung
zu niedrig
Klemmenbelegung (Fig. 2)
+
+ 24 VDC
Masse
Rdy
„Power-Good"-Kontakt
L1, L2, L3 Außenleiter L
º
Erdanschluss
Fig. 1
Switching power supply
IM82-24-5,0-3P
Short description
• Output voltage 24 VDC
(adjustable from 22.5...28.5 VDC) (Fiig. 1)
• Safety extra low voltage (SELV + PELV)
according to EN 60950-1
• Output rated current 5 A
• Large operating voltage range
3 × 340...575 VAC / 480...820 VDC
• Parallel operation (adjustable) (Fig. 6)
• Low output voltage tolerance ± 1 %
• Internal fuse on the input supply side
• Approvals acc. to:
UL 508 listed , UL/cUL 60950-1, UL Class 1/Div 2,
EN 60950-1, EN 55024,
EN 61000-6-3/EN 55022 Class B,
EN 61000-3-2, EN 60100-3-3, EN 61000-6-2
• Operating temperature range -40...+71 °C
• Power derating 2.5 %/°C from +61 °C on
(Fig. 5)
LED indications (Fig. 1)
DC ON
green
DC LOW red
Terminal configuration (Fig. 2)
+
+ 24 VDC
Negative potential
Rdy
„Power-Good" contact
L1, L2, L3 Phase conductor L
º
Earth connection
Fig. 2
Power on
Output voltage too low
Rdy
DC ON
GN
+
DC LOW
22,5 ... 28,5 VDC
+
5 A
(max. 120 W)
RD
Alimentation à découpage
IM82-24-5,0-3P
Description brève
• Tension sortie 24 VDC
(réglable de 22,5...28,5 VDC) (Fig. 1)
• Tension de sécurité extrêmement basse
(SELV + PELV) suivant EN 60950-1
• Courant nominal de sortie 5 A
• Large plage de tension de service
3 × 340...575 VAC / 480...820 VDC
• Fonctionnement en parallèle possible
(réglable) (Fig. 6)
• Tolérance faible de la tension de sortie ± 1 %
• Dispositif de sécurité interne à l'alimentation
d'entrée
• Homologations suivant:
UL 508 listées , UL/cUL 60950-1, UL Class 1/Div 2,
EN 60950-1, EN 55024,
EN 61000-6-3/EN 55022 Class B,
EN 61000-3-2, EN 60100-3-3,
EN 61000-6-2
• Température de fonctionnement -40...+71 °C
• Réduction de la puissance 2.5 %/°C à partir
de +61 °C (Fig. 5)
Visualisations par LED (Fig. 1)
DC ON
verte
Tension de service
DC LOW rouge
Tension de sortie trop faible
Raccordement des bornes (Fig. 2)
+
+ 24 VDC
Masse
Rdy
Contact „ Power-Good"
L1, L2, L3 Conducteur extérieur L
º
Raccordement à la terre
/ + L1
3x 340 ... 575 VAC
/+ L2
480 ... 820 VDC
/+ L2
