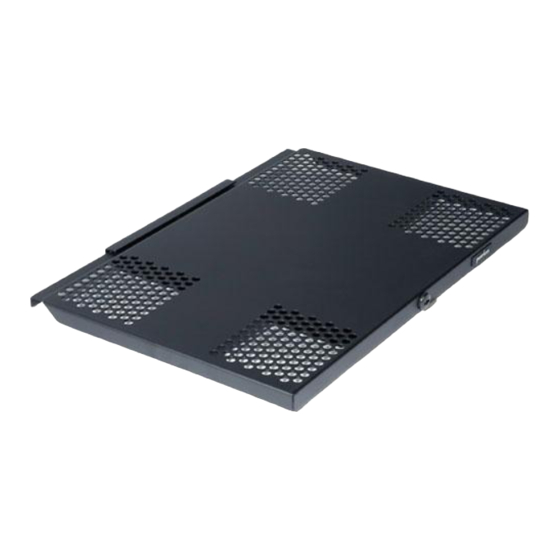

Installation and Assembly - VCR Mounting Tray
Parts List
LDM233K LDM233
Part # Part #
A 1235-375K 1235-375
B 120-0017 120-0014
C 500-9006 500-9006
D 506-9058 506-9058
E 540-9400 540-9400
F N/A 505-9010
G 3022-502 N/A
H 0000-322 N/A
J 590-1004 590-1004
K 530-9334 530-9334
L 540-9401 540-9401
N/A 520-9249
Some parts may appear slightly different than illustrated.

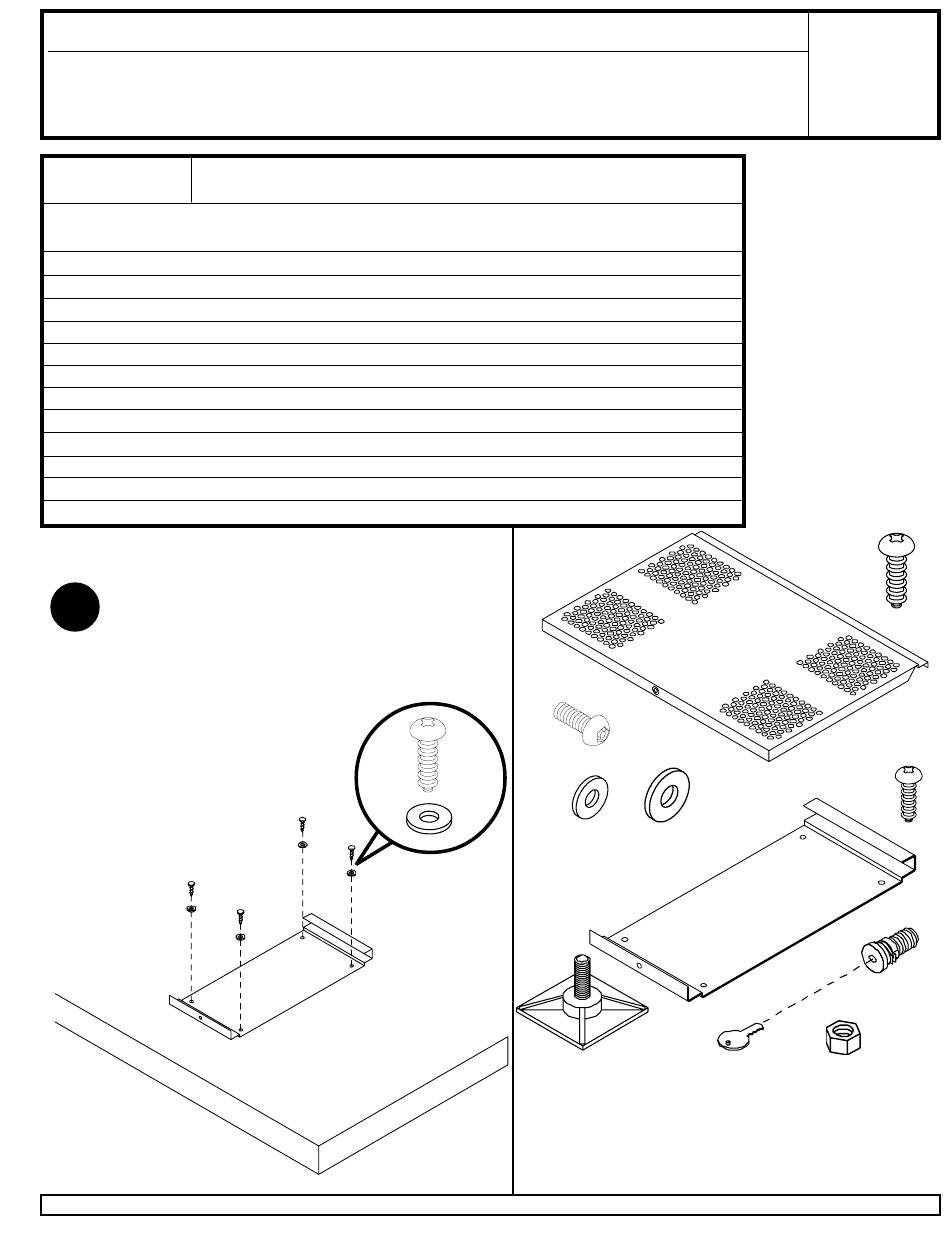

Drill four 1/8" dia. x 1" deep holes in mounting surface
1 1 1 1 1
using the lower tray (B) as a template. Attach lower tray
(B) to mounting surface with four #10 phillips screws (C)
and washers (E) as shown.
Alternative Installation: Peel off paper to expose adhesive
tape on bottom of lower tray (B) and attach to mounting
surface.
Visit the Peerless Web Site at www.peerlessindustries.com
I M P O R TA N T !
Read entire instruction sheet before you
start assembly and installation.
Before you start make sure all parts listed below
are included with your product.
LDM312
Part # QTY.
1235-371 1
120-0016 1
500-9006 4
506-9058 4
540-9400 8
505-9010 1
N/A 1
N/A 1
590-1004 4
530-9334 4
540-9401 4
520-9249 1
C
B
Description
upper tray
lower tray
#10 3/4" phillips screw
#6 5/8" phillips screw
small flat washer
M5 - .8 x 10mm penta-pin
lock plug
lock key
adhesive stud
nylon nut
1/4" flat washer
penta-pin tool (not shown)
A
F
E
E
B
J
1 of 2
ISSUED: 09-11-91 SHEET #: 124-9004/D 12-27-99
For customer service call 1-800-729-0307 or 708-865-8870.
Models:
LDM233K
LDM233
LDM312
L
H
C
D
G
K
