Installation and Assembly:

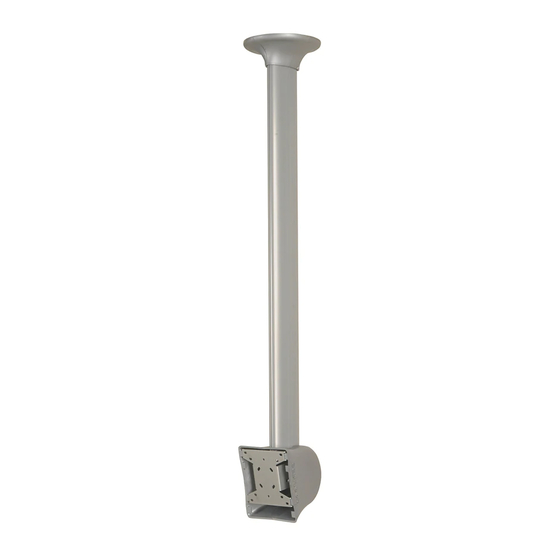

Ceiling mount for LCD screens up to 29"
Models: LCC18-C, LCC18-CS, LCC36-C, LCC36-CS
Patent Pending

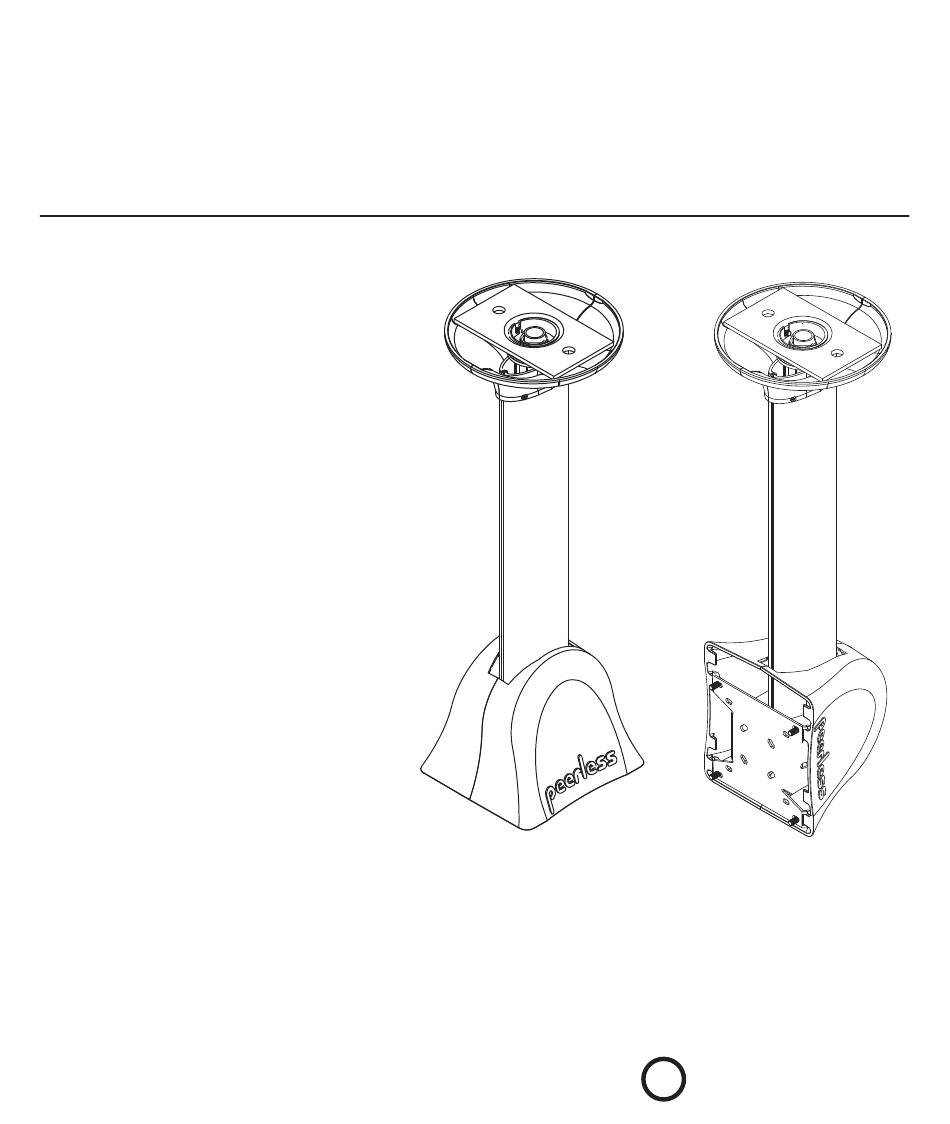

Features:
• Comes in two adjustable height ranges (in 1"
increments): 18"-30" and 36"-48"
• -5° to +20° adjustable tilt
• Screen can be mounted in standard position or
face-down
• Portrait or landscape orientation
• Ceiling plate included
• Hardware included for wood or concrete installa-
tions
•
Snap-together cover provides sleek aesthetics
and cord management
• Theft resistant security fasteners included
• VESA
®
75/100 mm compliant (Non-VESA adapter
offered separately)
• Comes in black and silver
• 360° swivel action
Horizontal
Position
U L
C
©
Max UL Load Capacity: 40 lb (18.1 kg)
Vertical
Position
US
Advertisement
Table of Contents
Related Manuals for PEERLESS LCC18-C
Summary of Contents for PEERLESS LCC18-C
- Page 1 Installation and Assembly: Ceiling mount for LCD screens up to 29" Models: LCC18-C, LCC18-CS, LCC36-C, LCC36-CS Patent Pending Features: • Comes in two adjustable height ranges (in 1" increments): 18"-30" and 36"-48" • -5° to +20° adjustable tilt • Screen can be mounted in standard position or...
-
Page 2: Table Of Contents
Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-729-0307. -
Page 3: Parts List
Parts List LCC 18-C LCC 18-CS LCC 36-C LCC 36-CS Description Qty. Part # Part # Part # Part # tube assembly 055-1520 055-4520 055-1521 055-4521 ceiling plate 580-1042 580-4042 580-1042 580-4042 tilt bracket 055-1551 055-4551 055-1551 055-4551 reducer 580-1009 580-4009 580-1009 580-4009... -
Page 4: Installation To Wood Joist Finished Ceilings, Exposed Wood Joists, Or Wood Beam Ceilings
Installation to Wood Joist Finished Ceilings, Exposed Wood Joists, or Wood Beam Ceilings Drill two 5/32" (4 mm) dia. holes to a minimum depth of 2.5" (64 mm). Attach ceiling plate (B) with two #14 x 2.5" (6 mm x 65 mm) wood screws (E) as shown using 3/8"... -
Page 5: Installation To Concrete Ceilings
Installation to Concrete Ceilings Drill two 1/4" (6 mm) dia. holes to a minimum depth of 2.5" (64 mm). Attach ceiling plate (B) using two concrete anchors (H) and #14 x 2.5" wood screws (E) CONCRETE as shown in Illustration A and 1, 2, and 3 (below). CEILING Tighten all fasteners. -
Page 6: Installing Reducer
Installing Reducer Thread reducer (D) onto tube assembly (A) until tight. Insert set screw (I) into reducer as shown in figure 2-1. Tighten screw using hex wrench (J). Note: Set screw (I) is used to jam against the threads of tube assembly to prevent any excess movement. -
Page 7: Flush Mount Installation
Flush Mount Installation Screw reducer (D) into ceiling plate (B) until notch in reducer is aligned with one of the four holes in ceiling plate and set screw (I) is at least partially covered by ceiling plate as shown in figure 3-1. Secure reducer with one M5 x 10 mm F-type socket pin screw (P) using security allen wrench (G) as shown in figure 3-2. -
Page 8: Installation To Extension Column
Installation to Extension Column Screw extension column (EXT or ADJ Series) to ceiling plate (B). Align the notch with one of the four holes in the ceiling plate and secure extension column with a M5 x 10 mm socket pin screw (P) using security allen wrench (G). -
Page 9: Installation To Lightweight Suspended Ceiling Plate
Installation to Lightweight Suspended Ceiling Plate Refer to instruction sheet for lightweight suspended ceiling plate (CMJ 455) for attachment of ceiling plate to ceiling. Screw extension column (EXT or ADJ Series) to retaining collar in ceiling tray. Align the notch with one of the four holes in retaining collar and secure extension column with one M5 x 10 mm socket pin screw (P) using security allen... -
Page 10: Attaching Tilt Bracket To Lcd Screen
Attaching Tilt Bracket to LCD Screen Note: This product is designed to accommodate screens with VESA ® compliant hole patterns. For safe mounting, please make sure that mounting screws turn at least three complete turns in the screen inserts. FOR VESA 75 MOUNTING PATTERN: 1) Choose hole pattern indicated below. -
Page 11: Installation Of Plasma In The Vertical Position
Installation of Screen in the Vertical Position Insert two M5 x 12 mm screws (F) into column bracket of tube assembly (A) (see figure 5-1). Leave approximately 3/16" of thread exposed (see figure 5.2). 3/16" COLUMN EXPOSED BRACKET THREAD fig. 5-1 fig. -
Page 12: Installation Of Plasma In The Horizontal Position
Installation of Screen in the Horizontal Position Insert two M5 x 12 mm screws (F) into column bracket of tube assembly (A) (see figure 5-1). Leave approximately 3/16" of thread exposed (see figure 5-2). COLUMN 3/16" BRACKET EXPOSED THREAD fig. 5-1 fig. -
Page 13: Installation Of Vertical Covers
Installation of Vertical Covers Route cords through side channels of one vertical cover (Q). Snap two vertical covers together on tube assembly (A) so that they are perpendicular to tilt bracket (C). If necessary, use a handsaw to cut vertical covers to match the length of tube assembly. - Page 14 Installation of Tilt Covers in the Vertical Position Using a carpenter's knife, cut out any sections of tilt covers (S) necessary to allow them to snap together over vertical covers (Q) as shown in figure 9-1. Note: Cut out sections of one tilt cover should mirror cut out sections of the other. Use glue (V) on the inside edge of one of the two tilting covers (S) so that the two sides will stick together when they are connected.
