PEERLESS LDS 1920U Installation And Assembly

Installation and Assembly - Universal Desktop Mount
IMPORTANT! Read entire instruction sheet before you start installation and assembly.
This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

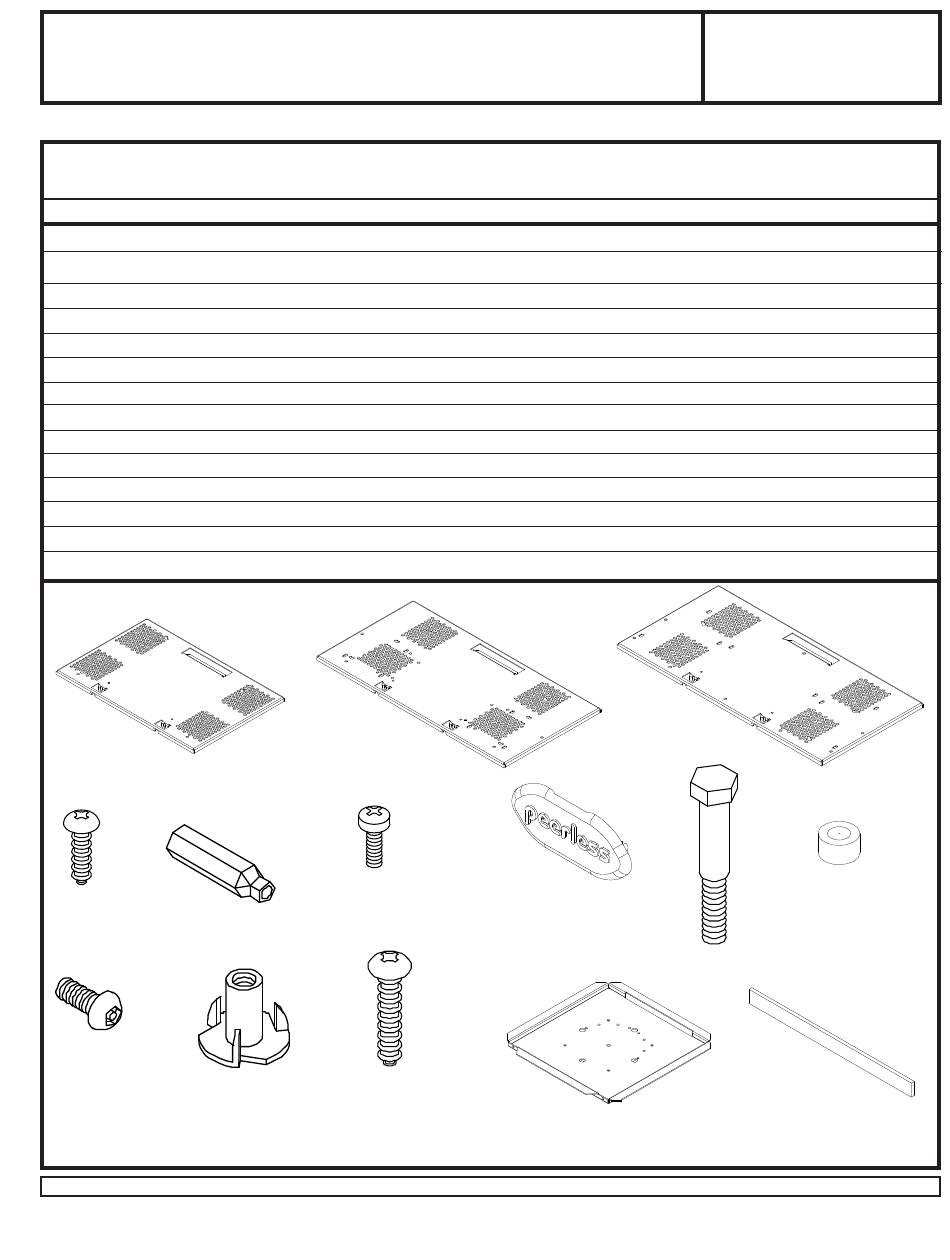

Parts List

Note: Some parts may appear slightly different than illustrated.
DESCRIPTION
A1 tray 19" - 20"
A2 tray 25" - 27"
A3 tray 32"
B #10 x 3/4 particle board screw
C penta-pin tool
D M5 x .8 x 10 mm phillips screw
E Peerless cover plate
F 1/4-20 x 1 3/4 bolt
G spacer
H M5 x .8 x 10 mm penta-pin
I 1/4-20 3 prong T-nut
J #1 x 1-1/4 phillips pan wood screw
K swivel base
L adhesive bumper strip
A1
B
H
Visit the Peerless Web Site at www.peerlessmounts.com
QTY. LDS 1920U
1 090-1243
8 500-9006
1 520-9249
2 520-9250
2 590-1046
1 520-9204
3 540-9455
™
screw 2 505-9010
1 530-9301
1 510-9157
1 090-0246
1 570-1029
A2
C
D
I
J
Before you start make sure all parts listed are included with your product.
LDS 1920U-S LDS 2527U
090-4243
090-1244
500-9006 500-9006
520-9249 520-9249
520-9250 520-9250
590-4046 590-1046
520-9204 520-9204
540-9455 540-9455
500-2001 505-9010
530-9301 530-9301
510-9157 510-9157
090-0247 090-0246
570-1029 570-1029
A3
E
K
1 of 5
ISSUED: 11-05-04 SHEET #: 090-9102-4 09-27-10
For customer care call 1-800-729-0307 or 708-865-8870.
Models:
LDS 1920U, LDS 1920U-S,
LDS 2527U, LDS 2527U-S,
LDS 32U, LDS 32U-S
LDS 2527U-S LDS 32U
090-4244
090-1245
500-9006 500-9006
520-9249 520-9249
520-9250 520-9250
590-4046 590-1046
520-9204 520-9204
540-9455 540-9455
500-2001 505-9010
530-9301 530-9301
510-9157 510-9157
090-0247 090-0246
570-1029 570-1029
F
LDS 32U-S
090-4245
500-9006
520-9249
520-9250
590-4046
520-9204
540-9455
500-2001
530-9301
510-9157
090-0247
570-1029
G
L
