Installation and Assembly:

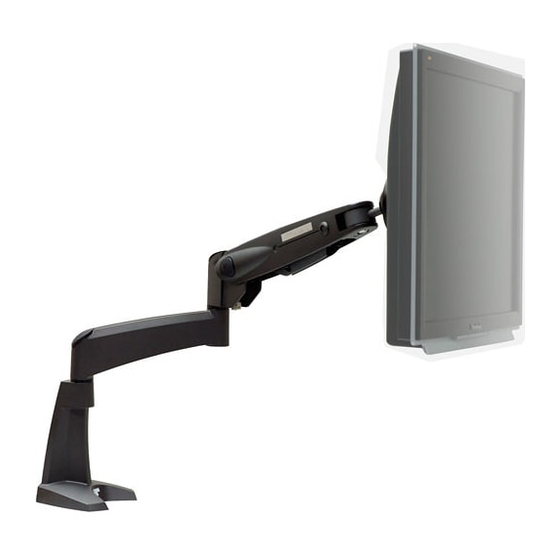

LCT Series LCD Arm
Model: LCT-102, LCT-103, LCT-104, LCT-102-KIT
Note: Read entire instruction sheet before you start installation and assembly.
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please
call Peerless customer service at 1-800-729-0307.
• Make sure that the desk will safely support the combined load of the equipment and all attached hardware and
components.
• Never exceed the Maximum Load Capacity of 25 lb (11 kg).
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• Special precaution on the overall balancing of the arm assembly must be taken when adjusting the swing angle of the
crosswings. (Please refer to section IV - Adjustment Details.)
• During the installation, beware of the arm body recoil when attaching or detaching the LCD monitor to the LCD Arm.
When changing LCD panels in the LCD Arm, please always re-adjust the gas strut to a lowest force level to control
the recoil of the arm body. The LCD arm gas strut has been adjusted with the reserved force to load the original LCD
panel, and the LCD Arm body will be recoiled when detaching the LCD panel directly without adjusting the gas strut.
• Do not attempt to disassemble, service or modify the product yourself.
• Use only a slightly damp cloth to clean the Arm surface. Never use flammable solvents like alcohol, beneze, thinner,
etc.
For customer care call (800) 729-0307 or (708) 865-8870.
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
WARNING
Max Load Capacity: 25 lbs (11kg)
ISSUED: 05-25-05 SHEET #: 090-9104-4 02-24-06
