Summary of Contents for EUCHNER CTP-LBI-AP

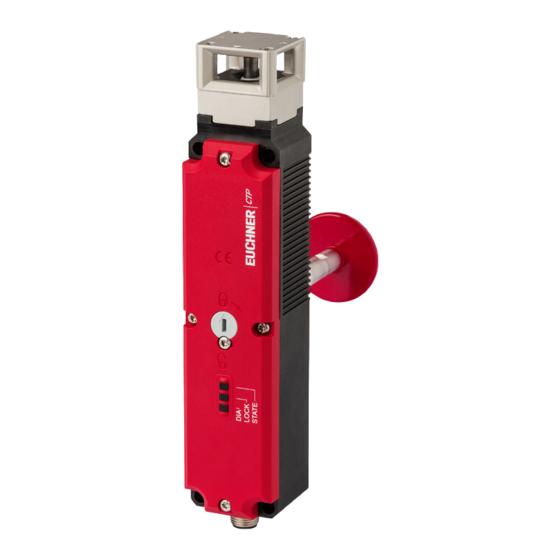

- Page 1 Operating Instructions Transponder-Coded Safety Switch With Guard Locking CTP-LBI-AP Unicode/Multicode...
-
Page 2: Table Of Contents
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP Contents About this document ..................... 4 1.1. Scope ............................4 1.2. Target group ..........................4 1.3. Key to symbols ..........................4 1.4. Supplementary documents ......................4 Correct use ......................5 Description of the safety function ................6 Exclusion of liability and warranty ................. 7 General safety precautions ................... - Page 3 Mechanical function test ....................21 11.3.2. Electrical function test ....................21 System status table .................... 22 Technical data ....................23 13.1. Technical data for safety switch CTP-LBI-AP ..................23 13.1.1. Typical system times .....................24 13.2. Radio frequency approvals......................25 13.3. Dimension drawing for safety switch CTP… ..................26 13.4.
-
Page 4: About This Document
1. About this document 1.1. Scope These operating instructions are valid for all CTP-LBI-AP… from version V1.0.0. These operating instructions, the document “Safety information and maintenance” and any enclosed data sheet form the complete user information for your device. 1.2. -
Page 5: Correct Use
EN 60204-1, Safety of machinery – Electrical equipment of machines – Part 1: General requirements The safety switch is allowed to be operated only in conjunction with the intended EUCHNER actuator and the related connec- tion components from EUCHNER. On the use of different actuators or other connection components, EUCHNER provides no warranty for safe function. -
Page 6: Description Of The Safety Function
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 3. Description of the safety function Devices from this series feature the following safety functions: Monitoring of guard locking and the position of the guard (interlocking device with guard locking according to EN ISO 14119) Ì... -
Page 7: Exclusion Of Liability And Warranty
Prior to use, read the operating instructions and keep these in a safe place. Ensure the operating instructions are always available during mounting, setup and servicing. EUCHNER cannot provide any warranty in relation to the readability of the CD for the storage period required. For this reason you should archive a printed copy of the operating instructions. -
Page 8: Function
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 6. Function The device permits the locking of movable guards. Transponder-coded actuator The system consists of the following components: coded actuator (transponder) and switch. Whether the device learns the complete actuator code (unicode) or not (multi- code) depends on the respective version. -
Page 9: Guard Locking On Version Ctp-Lbi
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 6.5. Guard locking on version CTP-LBI (Guard locking actuated by spring force and released by power-ON) Activating guard locking: close guard; no voltage at control input IMP Releasing guard locking: apply voltage to control input IMP. -
Page 10: Manual Release
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 7. Manual release Important! No further release functions can be retrofitted on Extended variants with controls in position 1 (S1) and position 2 (S2). Important! Ì All release functions engage when the device is electrically isolated. -
Page 11: Actuating Auxiliary Key Release
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 7.1.2. Actuating auxiliary key release On devices with auxiliary key release (can be retrofitted), simply turn the key to release. Function as for auxiliary release. For mounting, see the auxiliary key release supplement. 7.2. -
Page 12: Escape Release (Optional)
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 7.3. Escape release (optional) Permits opening of a locked guard from the danger zone without tools (see chapter 13.3. Dimension drawing for safety switch CTP… on page 26). Important! Ì It must be possible to actuate the escape release manually from in- side the protected area without tools. -
Page 13: Wire Front Release
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 7.4. Wire front release Release via a pull wire. Depending on the type of attachment, the wire front release can be used as emergency unlocking or escape release. The following applies to non-latching wire front releases. -
Page 14: Changing The Approach Direction
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 8. Changing the approach direction The approach direction needs to be changed only if the switch is to be approached from the rear. Proceed as follows: 1. Remove the screws from the safety switch 2. -
Page 15: Installation
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 9. Installation CAUTION Safety switches must not be bypassed (bridging of contacts), turned away, removed or otherwise rendered ineffective. Ì Observe EN ISO 14119:2013, section 7, for information about reducing the possibilities for by- passing an interlocking device. -
Page 16: Electrical Connection
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 10. Electrical connection WARNING If there is a mistake, loss of the safety function due to incorrect connection. Ì To ensure safety, both safety outputs (FO1A and FO1B) must always be evaluated. Ì Monitoring outputs must not be used as safety outputs. -
Page 17: Safety In Case Of Faults
Ì On the usage of other connection components, the requirements in the following table apply. EUCHNER provides no warranty for safe function in case of failure to comply with these require- ments. Observe the following requirements with respect to the connection cables: For safety switches CTP-…-AP-…-SA-…... -
Page 18: Connection Ctp-Ap
The user is responsible for safe inte- gration into the overall system. Detailed application examples can be found at www.euchner.com. Simply enter the order number in the search box. All available connection examples for the device can be found in “Downloads.”... -
Page 19: Notes On Operation With Safe Control Systems
- Pulses up to a length of max. 5 ms are tolerated. A detailed example of connecting and setting the parameters of the control system is available for many devices at www.euchner.com in Downloads » Applications » CTP. The features of the respective device are dealt with there in greater detail. -
Page 20: Setup
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 11. Setup 11.1. LED displays You will find a detailed description of the signal functions in chapter 12. System status table on page 22. Color STATE green LOCK yellow STATE LOCK 11.2. Teach-in function for actuator (only for unicode evaluation) The actuator must be allocated to the safety switch using a teach-in function before the system forms a functional unit. -
Page 21: Functional Check
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP The code of the actuator that was just taught in is activated in the safety switch. ¨ 4. Switch on operating voltage UB. The device operates normally. ¨ 11.3. Functional check WARNING Danger of fatal injury as a result of faults in installation and functional check. -
Page 22: System Status Table
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 12. System status table LED indicator Output Operating mode State closed Normal operation, door closed and locked 1 x Normal operation Normal operation, door closed and not locked closed verse open Normal operation, door open... -
Page 23: Technical Data
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 13. Technical data NOTICE If a data sheet is included with the product, the information on the data sheet applies. 13.1. Technical data for safety switch CTP-LBI-AP Parameter Value Unit min. typ. max. General... -
Page 24: Typical System Times
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 13.1.1. Typical system times Please refer to the technical data for the exact values. Ready delay: After switching on, the device carries out a self-test. The system is ready for operation only after this time. -
Page 25: Radio Frequency Approvals
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 13.2. Radio frequency approvals FCC ID: 2AJ58-05 22052-05 FCC/IC-Requirements This device complies with part 15 of the FCC Rules and with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 26: Dimension Drawing For Safety Switch Ctp
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 13.3. Dimension drawing for safety switch CTP… With escape release The actuator shaft for the escape release can be extended using exten- sions (max. 94 mm) Basic position for escape release ∅ 5.3 (4x), 1.4 Nm 44 / 74 / 94 for screw M5x35 mm... - Page 27 Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP With auxiliary key release With release, automatic return max. 50 With emergency unlocking With wire front release 21,5 32,4 2136918-04-05/19 (translation of the original operating instructions)
-
Page 28: Technical Data For Actuator Ctp
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 13.4. Technical data for actuator CTP-... Parameter Value Unit min. typ. max. Housing material Fiber reinforced plastic Weight 0.03 … 0.06 (depending on version) Ambient temperature °C Degree of protection IP 67/IP 69/IP 69K Mechanical life 1 x 10... - Page 29 Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP Dimension drawing Min. door radius [mm] Order no./item 37,5 122667 A-C-H-W-SST-122667 12,45 bent, upward 122668 A-C-H-W-SST-122668 5,25 bent, downward max. 28 2136918-04-05/19 (translation of the original operating instructions)
- Page 30 Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP Dimension drawing Min. door radius [mm] Order no./item 3,25 122671 A-C-H-RL-LS-122671 max. 28 X = 53 mm (122671, 122672) X = 49 mm (122669, 122670) 122672 A-C-H-RR-LS-122672 122675 A-C-H-RO-LS-122675 max. 28 X = 41 mm (122673, 122674)
-
Page 31: Ordering Information And Accessories
14. Ordering information and accessories Tip! Suitable accessories, e.g. cables or assembly material, can be found at www.euchner.com. To order, enter the order number of your item in the search box and open the item view. Accessories that can be combined with the item are listed in “Accessories.”... -
Page 32: Declaration Of Conformity
Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 17. Declaration of conformity (translation of the original operating instructions) 2136918-04-05/19... - Page 33 Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 2136918-04-05/19 (translation of the original operating instructions)
- Page 34 Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP (translation of the original operating instructions) 2136918-04-05/19...
- Page 35 Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP 2136918-04-05/19 (translation of the original operating instructions)
- Page 36 Edition: 2136918-04-05/19 Title: Operating Instructions Transponder-Coded Safety Switch CTP-LBI-AP (translation of the original operating instructions) Copyright: © EUCHNER GmbH + Co. KG, 05/2019 Subject to technical modifications; no responsibility is accept- ed for the accuracy of this information.
