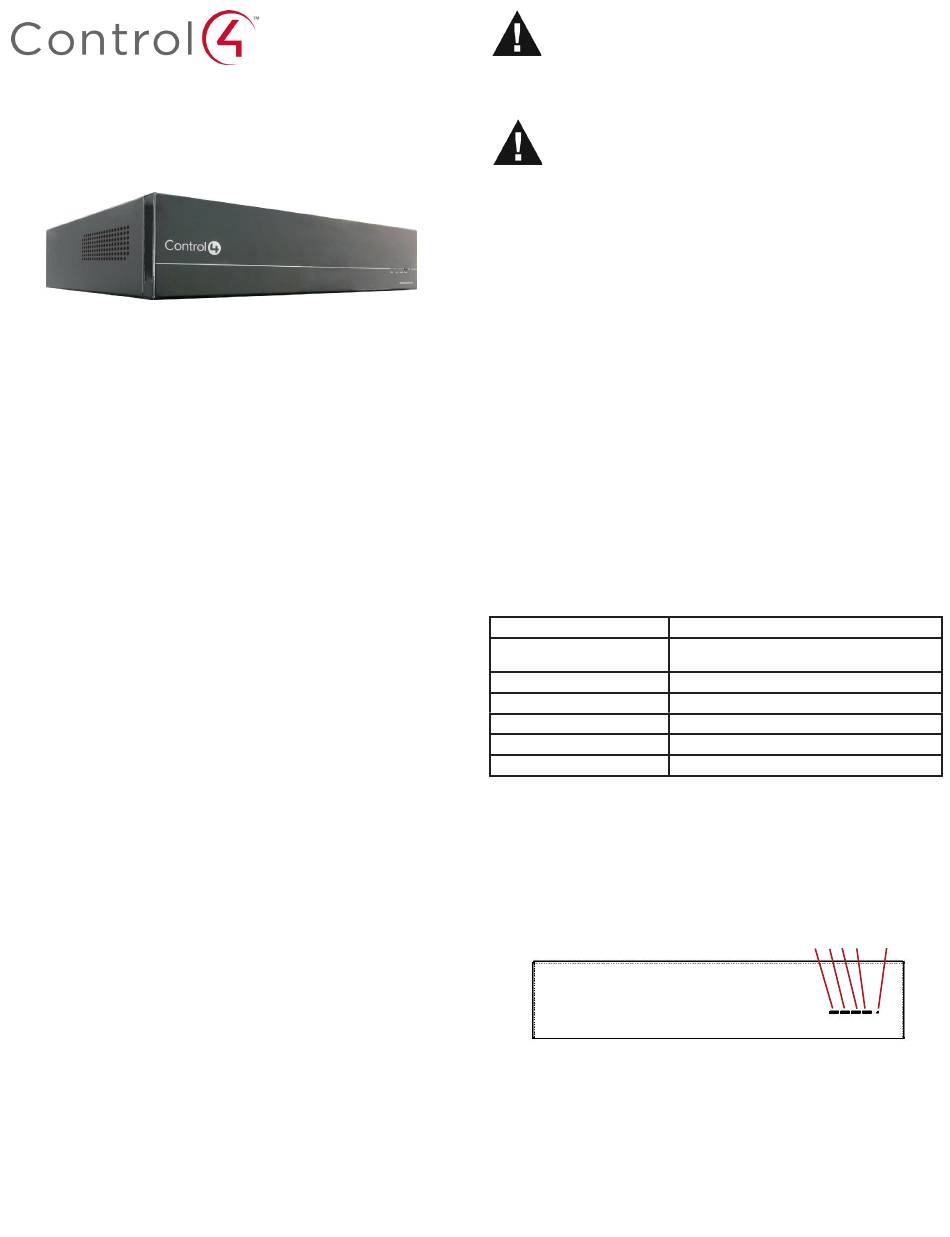

Control 4 HC-1000 V3 Installation Manual

Home Controller
HC-1000 V3
Installation Guide
Supported Model

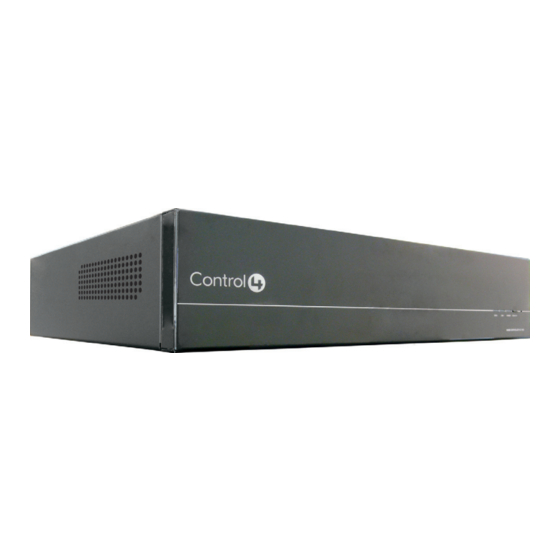

C4-HC1000V3-E-B Home Controller HC-1000 V3
Introduction
The Control4® Home Controller HC-1000 provides the capability for controlling lights, home
theaters, distributed audio systems, and other devices.
It provides extensive Media Management services for audio sources, such as CDs and
DVDs stored in connected devices and lets you use an external storage device for media
storage. It also includes multi-zone audio capabilities, distributing digital music to rooms
throughout the home when used with additional home controllers.
What's in the Box
The following are included in your Home Controller box:
• Home Controller HC-1000 V3
• IEC 320 power cord
• Rack mount ears
• Home Controller HC-1000 Installation Guide (this document). Note: You can find this
and other related documents online also at the Dealer portal: http://www.control4.com/
dealer/products/documentation/.
Important Safety Instructions
1. Read and keep these instructions.
2. Heed all warnings and follow all instructions for this product in this and other Con-
trol4® documents included with or related to this product.
3. Improper use of this product may result in potential electric shock.
4. Do not use this product near water.
5. Never spill liquid of any kind on this product.
6. Clean this product only with a damp or dry cloth. Do not use liquid cleaners or aerosol
cleaners to clean the product.
7. Install this product according to the manufacturer's instructions.
8. Install this product according to the National Electrical Code ANSI/NFPA 70 and the
prevailing local codes and requirements.
9. This product should be operated with the type of power indicated on the marked label.
If you are not sure of the type of power available, consult your Control4 dealer or local
power company.
10. Slots and openings on a cabinet rack, and components used with this product are pro-
vided for ventilation, reliable operation, and protection from overheating of the product.
These slots and openings must not be blocked or covered.
11. This product should never be placed near or over a radiator or heat register, or in a
built-in installation unless proper ventilation is provided.
12. Never push objects of any kind into this product through cabinet slots because they
may touch dangerous voltage points or short out parts that could result in a fire or
electric shock.
13. Only use the attachments and accessories included with this product or recommended
by Control4.
14. Do not allow anything to rest on the power cord. Do not install or place this product
where people will walk on the cord.
15. Do not use extension cords with any products in a Control4 system.
16. If applicable, unplug this product during lightning storms or when unused for long
periods of time.
17. Do not exceed the maximum wire size (if specified) in this guide.
18. This product must be installed by qualified professionals only.
19. Do not attempt to service this product yourself except as noted in this guide. Opening
or removing covers of internal components may expose you to dangerous voltage
points or other risks.
20. Refer all servicing to qualified service personnel. Servicing is required when the ap-
paratus has been damaged or frayed in any way; for example, a power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into this product, this
product has been exposed to rain or moisture, this product does not operate normally,
or this product has been dropped.
WARNING! To reduce the risk of electrical shock, do not expose this apparatus
to rain or moisture.
AVERTISSEMENT! Pour réduire le risque de choc électrique, n'exposez pas cet
appareil à la pluie ou à l'humidité.
WARNUNG! Um das Risiko des elektrischen Schlages zu verringern, setzen Sie
diesen Apparat nicht Regen oder Feuchtigkeit aus.
WARNING! This CLASS I apparatus must be connected to an AC mains socket
outlet that has a protective earthing connection (i.e., third-prong ground conduc-
tor). DO NOT DEFEAT THE PROTECTIVE EARTHING CONNECTION!
Control4 Supported Devices
The HC-1000 V3 enhances existing system capabilities. It replaces the Primary Controller,
running Director and Media Manager. You must have a Secondary Controller, such as a
Home Controller HC-200 or HC-300 to communicate with lighting and other ZigBee devices.
The HC-1000 V3 enhances a system's capability to control the following Control4® devices:
• Touch Screens—All types and sizes (such as portable, tabletop, and in-wall, or 10", 7",
and 5")
• LCD Keypads
• Wireless 2, 3, & 6 Button Keypads
• Wireless Thermostats
• Speaker Points®
• Audio Matrix Switch
• Multi Channel Amplifiers
• 4-Zone Amplifiers
• Multi Tuners (V1 or V2)
• Wireless Dimmers
• Wireless Switches
• Wireless Outlet Dimmers
• Wireless Outlet Switches
• Third-party devices
For a more information, see the Products pages at http://www.control4.com.
Requirements and Specifications
Prior to installing this product, ensure that: Ethernet network wiring is in place.
The Home Controller HC-1000 V3 specifications include:
Model Number
Media Recognition
Display
Power Requirements
Dimensions
Weight
Shipping Weight
Additional Resources
The following resources are available to provide you with additional support.
• Your Control4 Reseller
• Control4 Web Site: http://www.control4.com
• Composer documentation in online help or PDF format
Front View
1. Data LED—This LED indicates streaming audio is received.
2. Link LED—Blue LED light indicates Home Controller has been identified in a Control4
Composer project.
3. Power LED—This indicates that the device is powered on.
4. Identification Button—Button used when identifying this device in Composer.
5. Power/Reset Button— The Controller is configured to power on when plugged in. If
it doesn't, press the Power/Reset button to power it on. To reboot the unit, hold the
Power/Reset button down until the Controller powers down, wait approximately 30
seconds, and then press the Power/Reset button again to power the unit back on.
Pressing Power/Reset during normal operation causes the Controller to reboot.
Note: Blinking is not a default LED action; LEDs blink to convey information.
C4-HC1000V3-E-B
Online CD/DVD recognition and media information
service
LED indicators
100-240 VAC, 60/50 Hz, 0.7 A MAX
H x W x D: 3 3/8" x 16.75" x 14"
15.4 pounds
20 pounds
1 2 3 4 5
