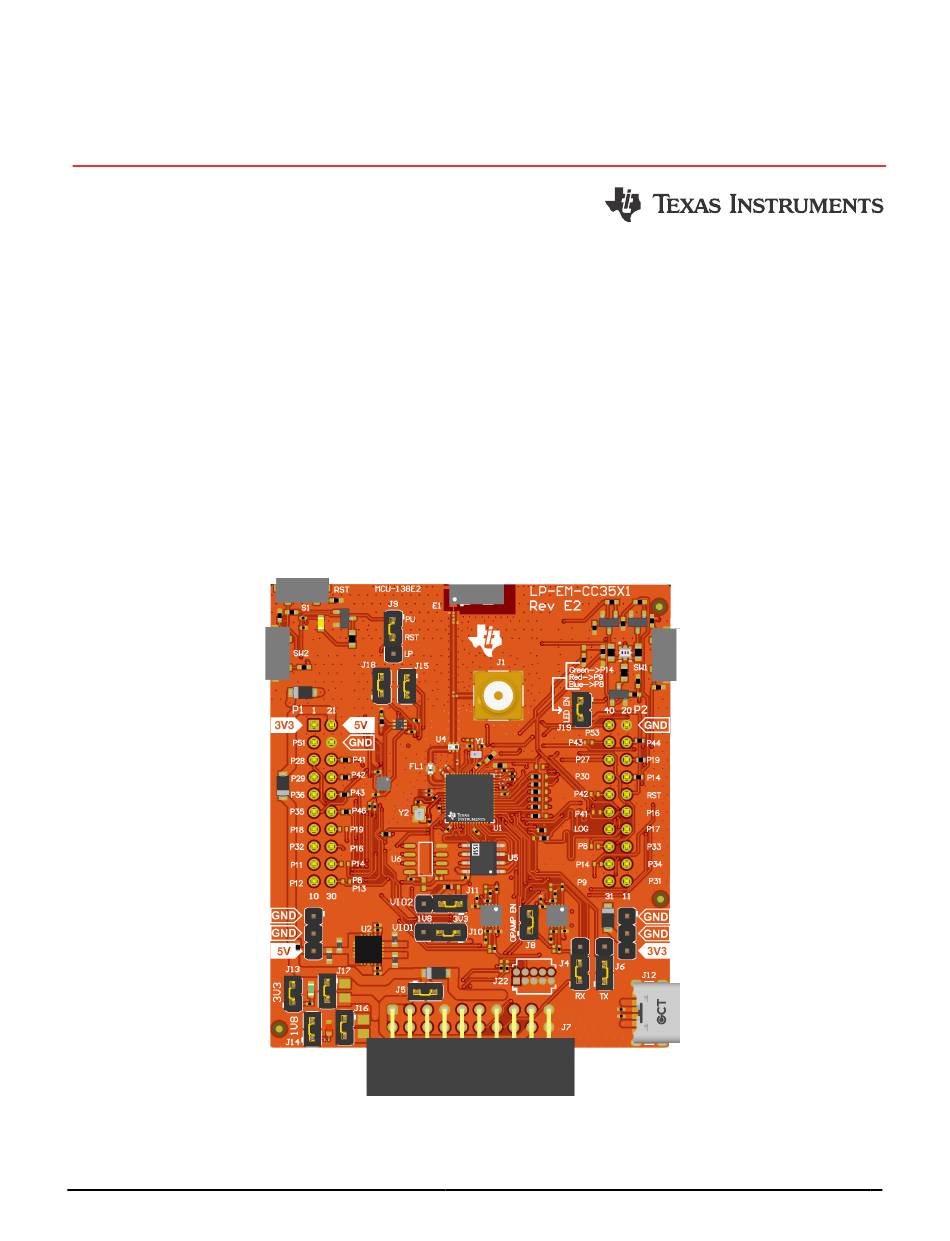

EVM User's Guide: LP-EM-CC35X1
CC35xxE LaunchPad™ Development Kit for SimpleLink™
Wi-Fi 6 and Bluetooth® Low Energy Wireless MCU
Description
™
The SimpleLink CC3501E and CC3551E Wi-Fi 6
and Bluetooth ® low-energy wireless MCUs enable
affordable, reliable and secure connectivity integrated
with a powerful Arm ® Cortex

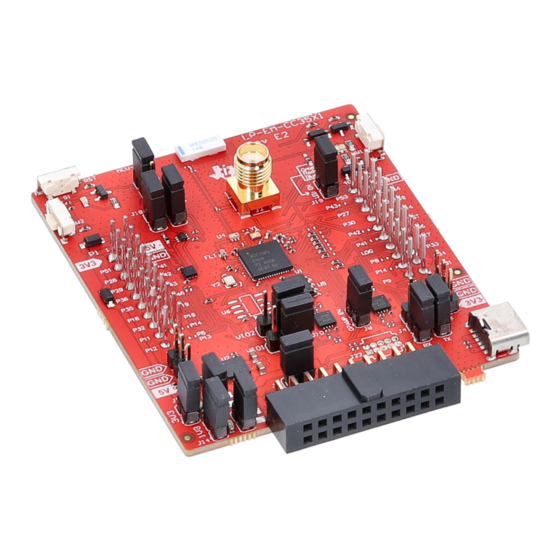

processor. The CC35xxE LaunchPad
kit (LP-EM-CC35X1) is a test and development board
that features onboard sensors, buttons, and easy
interface options to emulators for a full out-of-the-box
experience and rapid development.
Features
• CC3551E SimpleLink Wi-Fi 6 and Bluetooth low
energy, Internet-on-a chip
MCU
SWRU629 – SEPTEMBER 2024
Submit Document Feedback
® -M33 application
™ development
™ design with integrated
Copyright © 2024 Texas Instruments Incorporated
• 2x20 pin stackable connectors (BoosterPack
headers) to connect to TI LaunchPads and other
BoosterPack plug-in modules
• 20-pin header for XDS110-based JTAG emulation
with serial port for flash programming
• Onboard chip antenna with SMA/U.FL connector
for conducted testing
• Easy access to all I/O signals with the
BoosterPack plug-in module connectors
• Jumpers for current measurement on both power
supplies (3.3V and 1.8V)
• Two buttons and RGB LED for user interaction
• Onboard accelerometer and temperature sensor
• USB Type-C ® connector for power
CC35xxE LaunchPad™ Development Kit for SimpleLink™ Wi-Fi 6 and
Bluetooth® Low Energy Wireless MCU
Description
™
1
