1.1 Ethernet Remote Annunciator Controller (RAC) using the up to 4 ATC-300+
connected via RS-485 to TCP/IP gateway

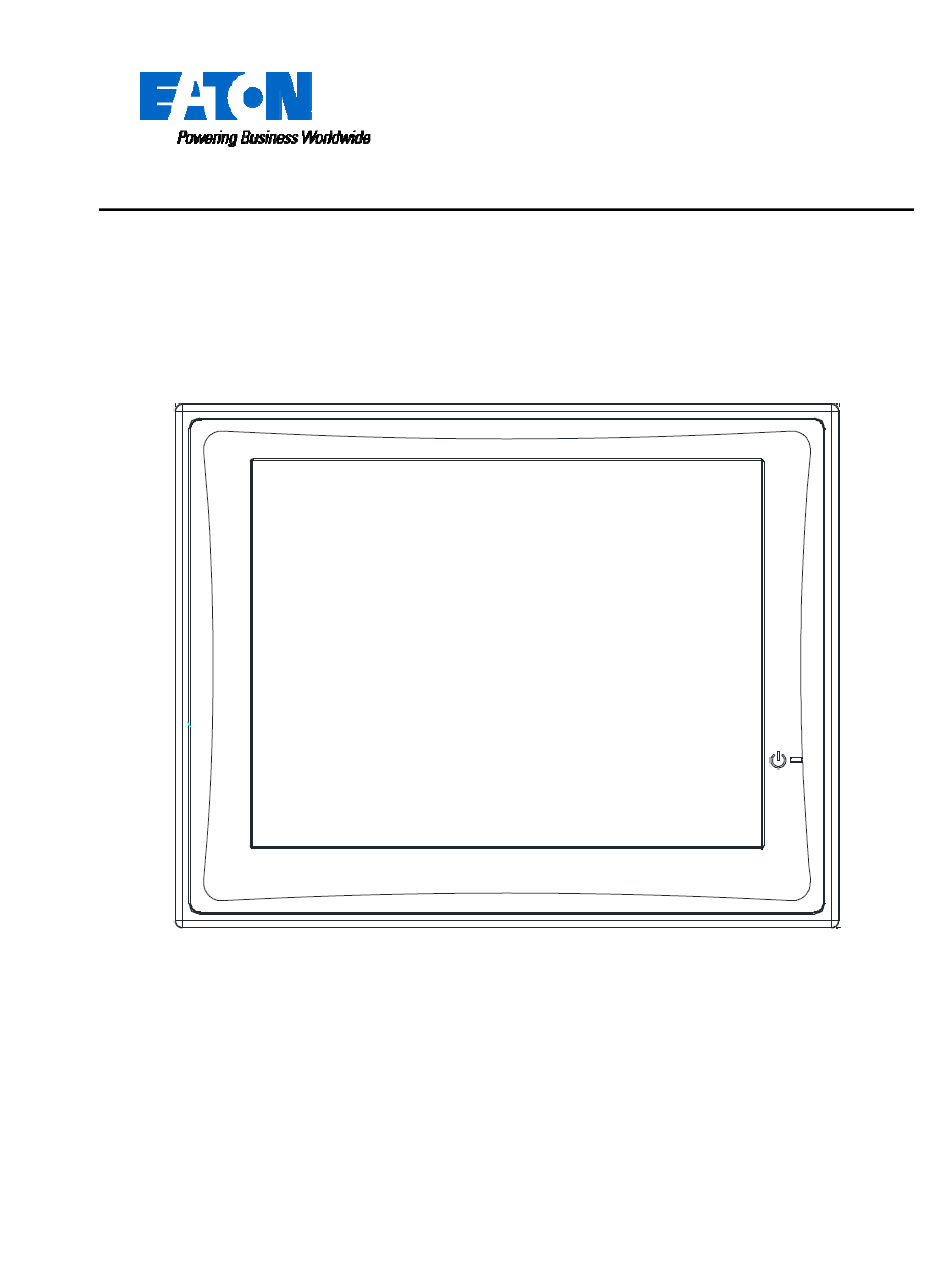

The 7" RAC is a color touch-screen display with easy-to-use functions that provide a
powerful interface with up to 4 Automatic Transfer Switches. It not only displays the
status of the switch, it also provides several popular control functions.
The 7" Ethernet RAC Kit contains the following:
HMIVU07CUNBE (7" Color HMI Display)
IL04801003E (HMI Instruction Leaflet)
IB01602080E (Ethernet RAC Setup Document)
OR IB01602081E (Ethernet Multiple Gateway RAC Setup Document)
ELC-PS01 or 02 (Optional 24VDC power supply)
PXG-400E (Ethernet to RS-485 Gateway)
IB10602082E (This Instruction Sheet)
66A8395E [or EM] (HMI Ethernet Wiring Drawing for the ATC-300+)
Ethernet Remote
Annunciator
Controller (RAC)
Instruction Sheet for
Automatic Transfer
Switches (4 x ATS)
1
Revision: 01
IB01602082E
