Eaton Power Defense PD4 Instruction Leaflet
Installation of remote operator
Hide thumbs
Also See for Power Defense PD4:
- Instruction leaflet (7 pages) ,
- Instruction leaflet (9 pages)
Subscribe to Our Youtube Channel
Related Manuals for Eaton Power Defense PD4
Summary of Contents for Eaton Power Defense PD4

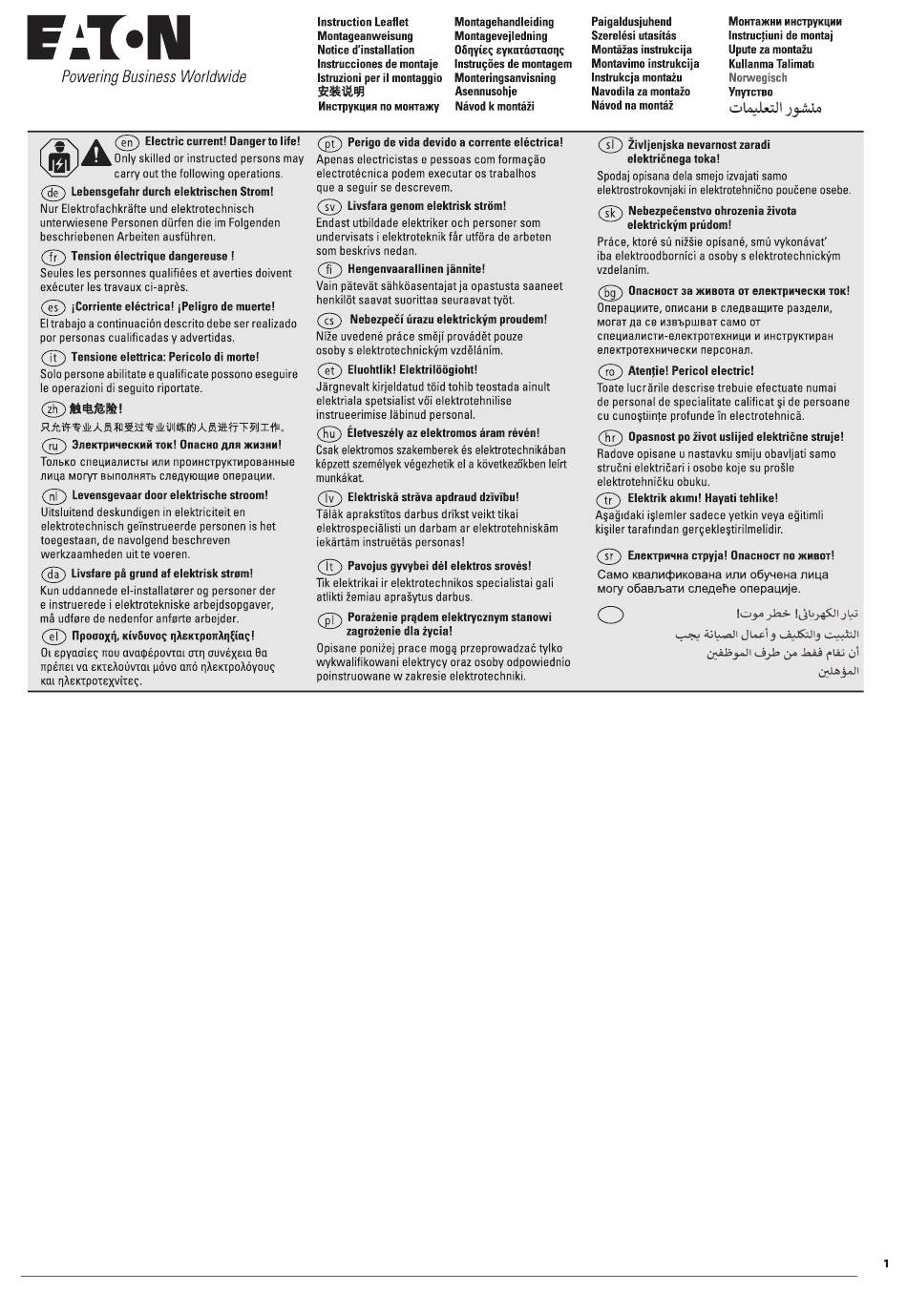

- Page 1 EATON IL012369EN H01 Publication No IL012369EN H01 August 2020 Eaton Electrical Ltd. Printed in China © 2020 Eaton Corporation All Rights Reserved, www.eaton.com.cn...
-
Page 2: State Of Delivery
PDE4XROP… State of delivery Lieferzustand Etat de livraison Estado de suministro Stato di fornitura Discharged Operation steps 2.4 Nm (21 lb-in) unit : inch Drill bit (7/32” or 5.5mm) 钻头 (7/32”或 5.5mm) Drill Location PDG4XROP.../ PDE4XROP... EATON IL012369EN... - Page 3 2.4 Nm (21 lb-in) PD4-4P For 4 poles only 仅适用于4极 2.4 Nm (21 lb-in) #8-32 by 2.5” Charged Discharged Manual Auto EATON IL012369EN...
- Page 4 If Remote Operator was charged. Only when the Remote Operator installation is complete, Button I can be pushed. 如果电操已储能，仅当与开关装配后，才可操作合闸按钮。 TRIP BUTTON POSITION TRIP LEVER – CHOOSE RIGHT POSITION TMTU unit : inch 4.92 5.24 2 Nm (18 lb-in) M4x8 EATON IL012369EN...
- Page 5 TEST Charged Discharged Discharged Manual Auto Push to trip Charged Manual Auto Charged Manual Auto t > 3 s d = 4 – 8 mm (d = 0.16” – 0.31”) EATON IL012369EN...
- Page 6 Parallel connection between two remote operators 电操联锁并联电路 H = Signal lamp H = 信号指示灯 0 = Pushbutton or contact for opening the circuit-breaker 0 = 分断断路器的按钮 I = Pushbutton or contact for switch closing I = 闭合断路器的按钮 www.eaton.com/recycling EATON IL012369EN...
