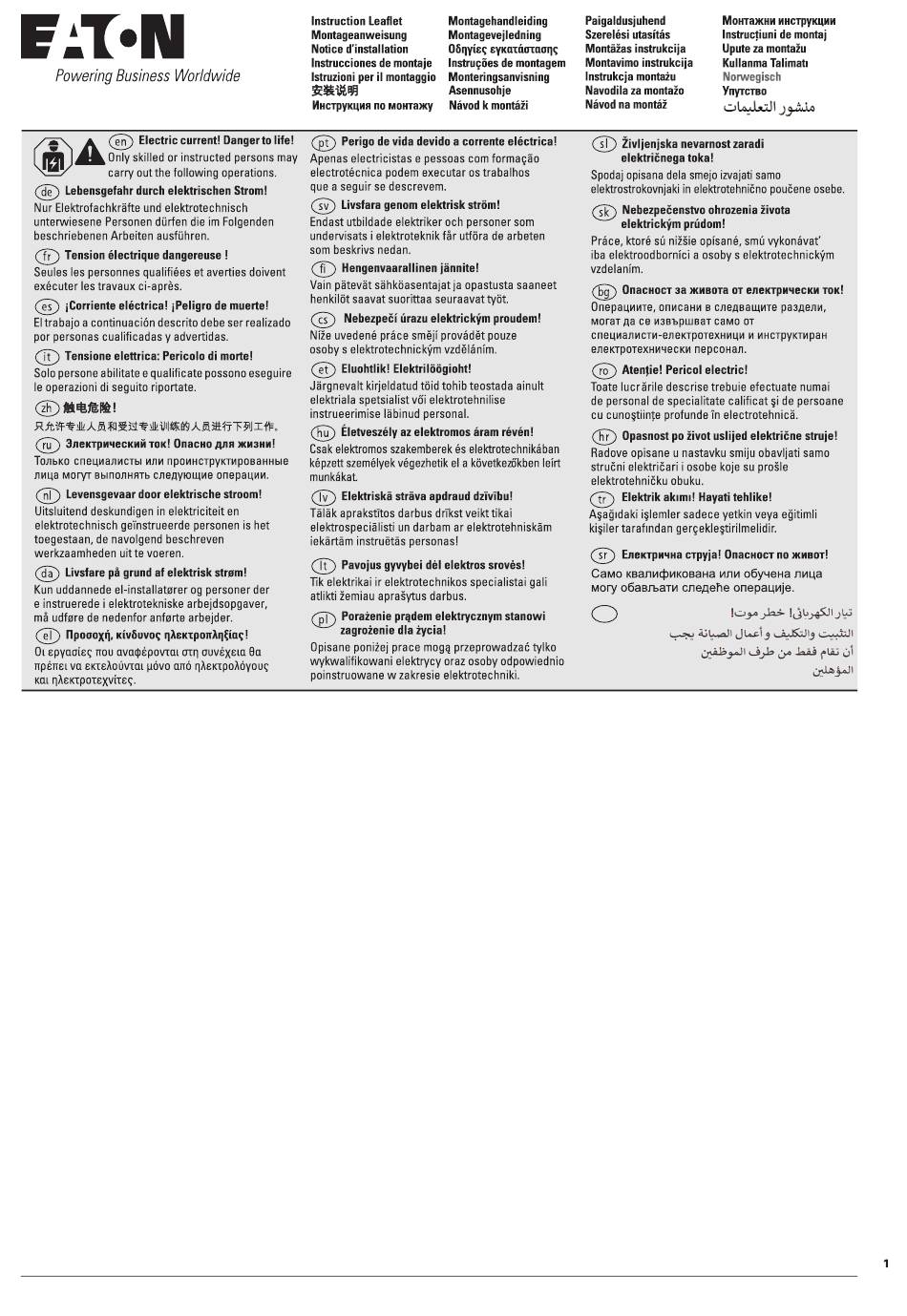

- Page 1 EATON IL012367EN H01 Publication No IL012367EN H01 August 2020 Eaton Electrical Ltd. Printed in China © 2020 Eaton Corporation All Rights Reserved, www.eaton.com.cn...
- Page 2 State of delivery Lieferzustand Etat de livraison Estado de suministro Stato di fornitura Discharged Operation steps PD2 TMTU PH#1 0.3 Nm (3 lb-in) PD2 TMTU unit : inch Drill bit (7/32” or 5.5mm) 钻头 (7/32”或 5.5mm) Drill Location EATON IL012367EN...
- Page 3 PD2 TMTU PD2 TMTU PH#1 0.3 Nm (3 lb-in) Charged Discharged Manual Auto If Remote Operator was charged. 3.16 Nm Only when the Remote Operator installation is complete, (28 lb-in) Button I can be pushed. M4x51 如果电操已储能，仅当与开关装配后，才可操作合闸按钮。 EATON IL012367EN...
- Page 4 3.16 Nm PH#2 (28 lb-in) 3.16 Nm M4x40 (28 lb-in) M4x40 PD2 PXR-3P PD2 PXR-4P PH#2 PH#2 3.16 Nm 3.16 Nm (28 lb-in) (28 lb-in) M4x40 M4x40 TEST Charged Discharged Discharged Manual Auto Push to trip Charged Manual Auto EATON IL012367EN...
- Page 5 Parallel connection between two remote operators 电操联锁并联电路 H = Signal lamp H = 信号指示灯 0 = Pushbutton or contact for opening the circuit-breaker 0 = 分断断路器的按钮 I = Pushbutton or contact for switch closing I = 闭合断路器的按钮 www.eaton.com/recycling EATON IL012367EN...
