Eaton HHPRG-MS Manual

ADF142501
Integrated Sensor Remote Programming
Programmation à distance du détecteur intégré
Programación remota del sensor integrado

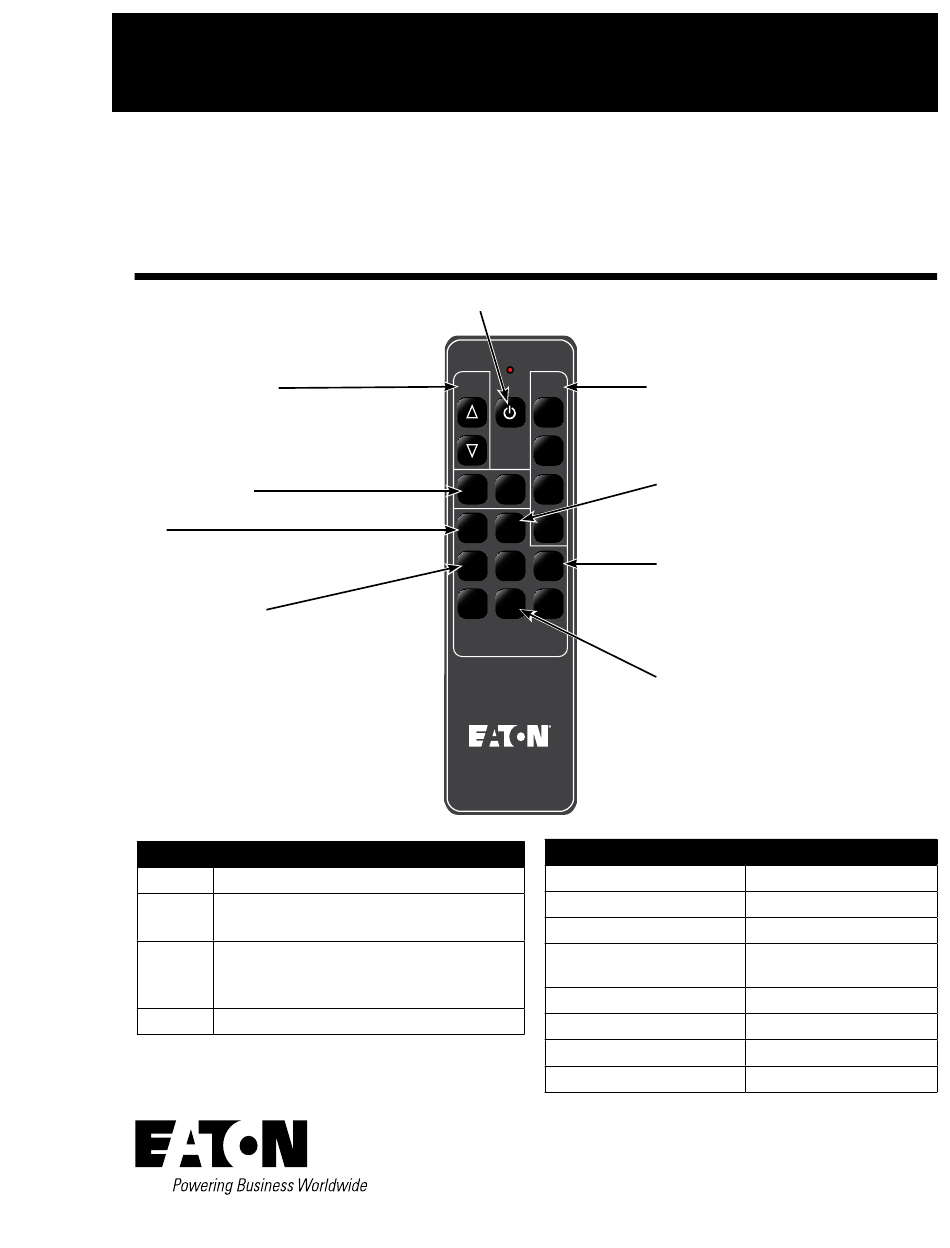

Remote
Dimmer Raise/Lower
Sensitivity Values
Push sets sensitivity to Low or High
SET
Saves current light levels to scenes
ES, DO, DU, TO, TU NO, NU
Day Time Occupied
Day Time Unoccupied
Light levels set by using raise
lower buttons, press SET and
DO or DU
Start Up Behavior
Item No. Action
1 Turn power ON to the fixture.
The light will start at 50% light level and then raise or
2
lower to the daylight level.
The sensor RED LED should slow blink (ON for 2
3 seconds, OFF for 2 seconds) for a 1 minute duration
then blink only on occupancy.
4 Wait for next daylight adjustment/occupancy action.
Relay On/Off
Raise/
Time
Lower Out
5
10
LO HI 15
SET ES 20
DO TO NO
DU TU NU
Scenes:
To save scenes press SET
and select sceneLower
Programming Remote
HHPRG-MS
Factory Defaults
Occupancy Detection
Default Occupancy Time Out
Occupancy Sensitivity
Energy Saver Scene
Fade Up Time
Fade Down Time
Default Daylight Harvesting Level
Default Unoccupied Light Level
Brand Logo
reversed out of
black
INS # INS #
Sensor Time Out Values
Push sets time out value to
5, 10, 15 or 20 minutes
ES – Energy Saver Scene
After 10 minutes of no
occupancy dim to this level
Night Time Occupied
Night Time Unoccupied
Light levels set by using raise
lower buttons, press SET and
NO or NU
Twilight Occupied
Twilight Unoccupied
Light levels set by using raise
lower buttons, press SET and
TO or TU
Auto-on, Active
20 minutes
High
100% - Daytime Occupied
Scene
32% per second using "Raise"
24% per second using "Lower"
500 Lux
Off
